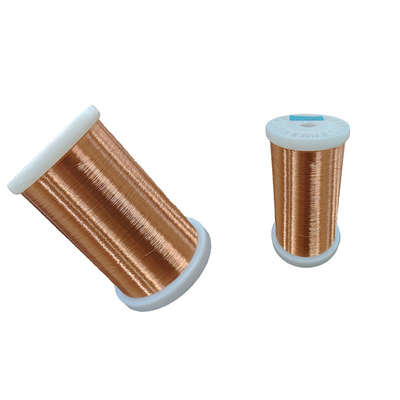

DFY Class 2 Natural Color Enamel Magnet Wire With Diameter 0.116 Mm With IEC Standard For Vaiours Colors
Products

Enamelled Round Copper Wire

Enameled Copper Winding Wire

Enamel Insulated Copper Wire

Enamel Magnet Wire

Enameled Flat Copper Wire

Silk Covered Wire

Litz Wire

High Temperature Magnet Wire
Contact Us
sales09@pewsc.com
13265485132
Contact Now
DFY Class 2 Natural Color Enamel Magnet Wire With Diameter 0.116 Mm With IEC Standard For Vaiours Colors
  • name
  • name

DFY Class 2 Natural Color Enamel Magnet Wire With Diameter 0.116 Mm With IEC Standard For Vaiours Colors

MOQ: 500kg
Price: It Depends
Standard Packaging: Cartons
Delivery Period: 3-5 Work Days
Payment Method: T/T 100% Payment Before Shipment
Supply Capacity: Delivery 10-15 Days After Next Order
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
PEWSC
Certification
UL
Model Number
DFY
Document
Product Brochure PDF
Product Name:
DFY
Voltage Rating:
2800V
Application:
High Temperature Electronic Devices
Conductor Materials:
Copper
Thermal Conductivity:
High
Certification:
UL
Colors:
Natural
Original Country:
China
Highlight:

IEC Standard Enamel Magnet Wire

,

Natural Color Enamel Magnet Wire

,

0.116 mm Enamel Magnet Wire

Product Description

Product Description:

The High Temperature Enamelled Winding Wire is manufactured to meet the highest standards of quality and performance. It features a Grade Three Enamel Thickness and is available in a range of diameters from 0.10mm to 3.20mm. The size of the wire can be customized to meet your specific needs, ensuring that you get the perfect fit for your application.

Our High Temperature Enamelled Winding Wire is designed to meet the requirements of the National Electrical Manufacturers Association (NEMA) standard. This ensures that the product is manufactured to the highest standards and provides you with the performance and reliability you need.

The conductor material used in our High Temperature Enamelled Winding Wire is copper, which provides excellent conductivity and low resistance. This makes it the perfect choice for applications that require a high level of performance and reliability.

One of the key features of our High Temperature Enamelled Winding Wire is its ability to withstand high temperatures. This makes it the perfect choice for applications that require a cable that can perform reliably in extreme conditions. The product has been tested and proven to perform well even in the most challenging environments, making it the ideal choice for a wide range of applications.

In summary, our High Temperature Enamelled Winding Wire is the perfect solution for your high heat magnet cable requirements. It is manufactured to the highest standards of quality and performance, and is available in a range of diameters to meet your specific needs. Its copper conductor material provides excellent conductivity and low resistance, while its ability to withstand high temperatures makes it the ideal choice for applications that require a reliable and durable magnet cable. Order yours today and experience the difference that our High Temperature Enamelled Winding Wire can make for your application.



Applications:

Product Application Occasions and Scenarios for High Temperature Enamelled Winding Wire

The high temperature enamelled winding wire, model DFY from PEWSC, is a product that is widely used in various electrical and electronic industries. This product is manufactured in China and has UL certification, ensuring its high quality. The minimum order quantity for this high temperature enamelled winding wire is 500kg and the delivery time is 3-5 work days. The payment terms are T/T with 100% payment before shipment.

The high temperature enamelled winding wire, model DFY from PEWSC, has excellent dielectric strength and high corrosion resistance. This product is manufactured to the NEMA standard and has a thermal grade of 220℃. The conductor material used in this product is copper.

The following are the product application occasions and scenarios for the high temperature enamelled winding wire:

  • Electric Motors: The high temperature enamelled winding wire is widely used in the manufacturing of electric motors. It is used for winding the coils of the motor, which helps in the efficient transfer of energy.
  • Transformers: The high temperature enamelled winding wire is used in transformers for the same purpose as in electric motors. It is used for winding the coils of the transformer, which helps in the efficient transfer of energy.
  • Generators: The high temperature enamelled winding wire is also used in generators for the same purpose as in electric motors and transformers. It is used for winding the coils of the generator, which helps in the efficient transfer of energy.
  • Automotive Industry: The high temperature enamelled winding wire is used in the automotive industry for various applications such as in the ignition system, battery cables, and alternators.
  • Aerospace Industry: The high temperature enamelled winding wire is also used in the aerospace industry for various applications such as in the wiring of aircraft engines and other critical components.

The high temperature enamelled winding wire, model DFY from PEWSC, is a product that is widely used in various industries due to its high quality and excellent performance. It is packed in cartons and has a supply ability of delivery within 10-15 days after the next order.



Customization:

Looking for a customized Heat Resistant Magnet Wire? We, at PEWSC, offer High Temperature Enamelled Winding Wire that suits your needs best. Our Model Number for this product is DFY and the cable is manufactured in China.

The High Heat Magnet Cable has been certified by UL and the minimum order quantity is 500kg. The price for the wire depends on the customization required.

The packaging details include cartons and the delivery time for the product is 3-5 work days. We accept T/T payment with 100% payment before shipment.

We ensure a supply ability of delivery within 10-15 days after the next order. The Conductor Material used is Copper and the Resistance is Low. The Hierarchy Type is Grade One and the Enamel Thickness is Grade Three. The Diameter of the wire ranges from 0.10mm-3.20mm.



Packing and Shipping:

Product Packaging:

  • The high temperature magnet wire will be packaged in a sturdy cardboard spool to prevent damage during shipping and storage.
  • The spool will be wrapped in plastic to protect the wire from moisture and other external elements.
  • The spool will be clearly labeled with the product name, size, and quantity.

Shipping:

  • The high temperature magnet wire will be shipped via a reliable courier service.
  • The wire will be carefully packaged and secured to prevent any damage or tangling during transit.
  • The shipping address and contact information will be confirmed prior to shipment to ensure timely and accurate delivery.
  • The estimated delivery time will depend on the destination and shipping method chosen.

DFY Class 2 Natural Color Enamel Magnet Wire With Diameter 0.116 Mm With IEC Standard For Vaiours Colors 0DFY Class 2 Natural Color Enamel Magnet Wire With Diameter 0.116 Mm With IEC Standard For Vaiours Colors 1

JIS---2種 Unit﹕mm

Diameter of Conduct		 Conductor Control
Benchmarks		   OD Control Benchmarks   Specification Boundaries   Conductor
Resistance 20℃
(Ω/KM)		 Insulation breakdownvoltage
(v)		   Min Elongation
(%)		   Max.
Springiness
(°)		 Resistance to abrasion
Lower
Limit		 Upper
Limit		 Lower
Limit		 Median Upper
Limit		 Min. Increase in Diameter
(mm)		 Max. Finished overall Diameter
(mm)		 JIS AWG Average Minimum
0.04±0.002 0.039 0.041 0.047 0.050 0.053 0.006 0.056 15670 200 7 11 -- -- --
0.05±0.003 0.049 0.051 0.059 0.062 0.065 0.008 0.069 10240 950 10 14 -- -- --
0.06±0.003 0.059 0.061 0.069 0.072 0.075 0.008 0.081 6966 950 10 15 -- -- --
0.07±0.003 0.069 0.071 0.079 0.082 0.085 0.008 0.091 4990 950 10 17 -- -- --
0.08±0.003 0.079 0.081 0.091 0.095 0.099 0.010 0.103 3778 1100 10 17 -- -- --
0.09±0.003 0.089 0.091 0.102 0.106 0.110 0.010 0.113 2959 1100 10 18 -- -- --
0.10±0.003 0.099 0.101 0.112 0.116 0.120 0.010 0.125 2381 1100 15 19 -- -- --
0.11±0.003 0.109 0.111 0.122 0.126 0.130 0.010 0.135 1957 1100 15 19 -- -- --
0.12±0.003 0.119 0.121 0.134 0.138 0.142 0.012 0.147 1636 1300 15 20 -- -- --
0.13±0.003 0.129 0.131 0.144 0.148 0.152 0.012 0.157 1389 1300 15 20 -- -- --
0.14±0.003 0.139 0.141 0.154 0.158 0.162 0.012 0.167 1193 1300 15 21 -- -- --
0.15±0.003 0.149 0.151 0.164 0.168 0.172 0.012 0.177 1037 1300 15 21 -- -- --
0.16±0.003 0.159 0.161 0.176 0.180 0.184 0.014 0.189 908.8 1300 15 22 -- -- --
0.17±0.003 0.169 0.171 0.186 0.190 0.194 0.014 0.199 803.2 1300 15 23 -- -- --
0.18±0.003 0.179 0.181 0.198 0.202 0.206 0.016 0.211 715.0 1600 15 23 -- -- --
0.19±0.003 0.189 0.191 0.208 0.212 0.216 0.016 0.221 640.6 1600 15 23 -- -- --
0.20±0.003 0.198 0.201 0.218 0.222 0.226 0.016 0.231 577.2 1600 15 24 -- -- --
0.21±0.003 0.208 0.212 0.228 0.232 0.236 0.016 0.241 522.8 1600 15 24 -- -- --
0.22±0.004 0.218 0.222 0.238 0.242 0.246 0.016 0.252 480.1 1600 15 24 -- -- --
0.23±0.004 0.228 0.232 0.250 0.254 0.258 0.018 0.264 438.6 1600 15 24 -- -- --
0.24±0.004 0.238 0.242 0.260 0.264 0.268 0.018 0.274 402.2 1600 15 24 -- -- --
0.25±0.004 0.248 0.252 0.270 0.274 0.278 0.018 0.284 370.2 1600 15 25 66 -- --
0.26±0.004 0.258 0.262 0.280 0.284 0.288 0.018 0.294 341.8 1600 15 25 66 243 204
0.27±0.004 0.268 0.272 0.290 0.294 0.298 0.018 0.304 316.6 1600 15 26 61 243 204
0.28±0.004 0.278 0.282 0.300 0.304 0.308 0.018 0.314 294.1 1600 15 26 61 243 204
0.29±0.004 0.288 0.292 0.310 0.315 0.320 0.018 0.324 273.9 1600 20 26 61 243 204
0.30±0.005 0.298 0.302 0.322 0.327 0.332 0.020 0.337 254.0 2000 20 26 61 265 235
0.32±0.005 0.317 0.322 0.342 0.347 0.352 0.020 0.357 222.8 2000 20 26 55 275 235
0.35±0.005 0.347 0.352 0.372 0.377 0.382 0.020 0.387 185.7 2000 20 27 50 275 235
0.37±0.005 0.367 0.372 0.392 0.397 0.402 0.020 0.407 165.9 2000 20 27 50 275 235
0.40±0.005 0.397 0.402 0.424 0.429 0.434 0.022 0.439 141.7 2000 20 27 76 306 265
0.45±0.006 0.446 0.452 0.474 0.479 0.484 0.022 0.490 112.1 2000 20 28 72 316 265
0.50±0.006 0.496 0.502 0.526 0.531 0.536 0.024 0.542 89.95 2150 20 28 67 357 296
0.55±0.006 0.546 0.552 0.576 0.581 0.586 0.024 0.592 74.18 2150 20 29 62 357 296
0.60±0.008 0.596 0.602 0.626 0.632 0.638 0.024 0.644 62.64 2150 20 29 62 357 306
0.65±0.008 0.646 0.653 0.677 0.683 0.689 0.024 0.694 53.26 2150 20 29 58 367 306
0.70±0.008 0.696 0.703 0.729 0.735 0.741 0.026 0.746 45.84 2150 20 30 53 398 337
0.75±0.008 0.746 0.753 0.781 0.787 0.793 0.028 0.798 39.87 2400 20 30 53 439 367
0.80±0.010 0.796 0.803 0.834 0.840 0.846 0.030 0.852 35.17 2400 25 30 66 479 398
0.85±0.010 0.846 0.853 0.884 0.890 0.896 0.030 0.904 31.11 2400 25 30 66 479 398
0.90±0.010 0.896 0.903 0.936 0.942 0.948 0.032 0.956 27.71 2400 25 31 62 510 428
0.95±0.010 0.946 0.953 0.988 0.994 1.000 0.034 1.008 24.84 2400 25 31 62 551 459
1.00±0.012 0.996 1.003 1.038 1.045 1.052 0.034 1.062 22.49 2400 25 32 58 551 469
1.10±0.012 1.095 1.103 1.142 1.149 1.156 0.036 1.164 18.54 3050 25 32 54 551 469
1.20±0.012 1.195 1.203 1.242 1.249 1.258 0.036 1.264 15.55 3050 25 32 54 551 469
1.30±0.012 1.295 1.305 1.344 1.351 1.358 0.040 1.364 13.23 3400 25 33 50 622 520
1.40±0.012 1.395 1.405 1.444 1.451 1.458 0.040 1.464 11.39 3400 25 33 46 622 520
1.50±0.012 1.495 1.505 1.546 1.553 1.560 0.040 1.568 9.91 3400 25 33 46 622 520
1.60±0.012 1.595 1.605 1.646 1.653 1.660 0.040 1.668 8.71 3400 25 33 42 622 520
