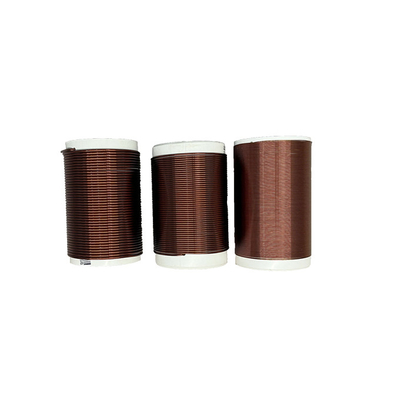

FIW Heavy Enamel Magnet Wire Heat Resistant Round Insulated Copper Magnet Wire

MOQ: The MOQ varies according to the size of the specification
Price: Copper price plus processing fee plus freight
Standard Packaging: Box
Delivery Period: 3-5 work days
Payment Method: T/T 100% payment before shipment
Supply Capacity: Delivery 10-15 days after next order
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
PEWSC
Certification
UL,ROHS
Model Number
FIW Heavy
Document
Product Brochure PDF
Name:
FIW Heavy
Conductor Diameter:
0.071mm-0.710mm
Conductor Material:
Copper
Temperature Grade:
180℃
Voltage Rating:
2800V The Voltage Resistance Varies According To The Thickness Of The Film And The Size Of The Specification
Standard:
NEMA
Enamel Thickness:
Heavy
Insulation Material:
Enamelled
Conductor Shape:
Round
Colors Option:
Red、Natural、Green
Warranty:
3 Years
Highlight:

Enamel Magnet Wire Heat Resistant

,

ROHS Enamel Magnet Wire

,

Round Insulated Copper Magnet Wire

Product Description

Thin Coating Layer: The wire has a very thin insulating coating, which helps to reduce the overall wire diameter, making the wire softer while maintaining the necessary insulating properties for high-density wiring applications.



High Heat Resistance: FIW enamelled wire is designed to withstand high temperature environments, making it suitable for use in power amplifiers, high frequency transformers, and precision sensors.



Excellent Physical Strength: Despite the extremely fine conductors, enamelled wires have good physical strength and toughness, resisting breakage and abrasion to ensure long-term stable operation.



Low Loss: In high frequency applications, FIW enamelled wires exhibit low loss characteristics that have little or no effect on signal transmission, ensuring high quality communications.



Environmentally friendly materials: RoHS compliant and manufactured with environmentally friendly materials, they are both safe and have a low environmental impact.



Versatile applications: From miniature sensors to precision medical devices, FIW enamelled wires are used in a wide range of precision electronic devices due to their unique characteristics.



FIW enamelled wire represents an advancement in miniaturisation in wire and cable technology, with its ultra-fine conductors and thin insulation providing unparalleled benefits for precision circuits. Whether challenged by space constraints or high performance requirements, FIW enamelled wire offers reliable solutions for the most demanding applications.

    NEMA---Heavy   Unit﹕mm
AWG Diameter of
Conduct		   Conductor Control
Benchmarks		   OD Control
Benchmarks		   Specification Boundaries   Conductor
Resistance 20℃
(Ω/KM)		 Insulation breakdownvoltage
(v)		   Min Elongation
(%)		 Max.
Springiness
(°)		   Resistance to
abrasion
Lower
Limit		 Upper
Limit		 Lower
Limit		 Median Upper
Limit		 Min. Increase
in Diameter		 Max. Finished
overall Diameter		 Average Minimum
44 0.051 +0.002 0.050 0.052 0.062 0.064 0.066 0.010 0.066 9527.95 1300 14 -- -- --
-0.003
43 0.056 +0.002 0.055 0.057 0.068 0.070 0.072 0.010 0.074 7815.03 1400 15 -- -- --
-0.003
42 0.064 +0.002 0.063 0.065 0.079 0.081 0.083 0.013 0.084 5899.6 1675 16 -- -- --
-0.003
41 0.071 +0.003 0.070 0.072 0.086 0.088 0.090 0.013 0.094 4610.88 1675 17 -- -- --
-0.002
40 0.079 +0.002 0.078 0.080 0.094 0.096 0.098 0.013 0.104 3800.62 1800 17 -- -- --
-0.003
39 0.089 +0.002 0.088 0.090 0.106 0.109 0.112 0.015 0.114 2968.15 1975 18 -- -- --
-0.003
38 0.102 +0.002 0.101 0.103 0.122 0.125 0.128 0.018 0.130 2239.81 2150 19 -- -- --
-0.003
37 0.114 +0.003 0.113 0.115 0.134 0.137 0.140 0.018 0.145 1750.03 2325 20 -- -- --
-0.002
36 0.127 +0.003 0.126 0.128 0.149 0.152 0.155 0.020 0.160 1427.71 2525 20 -- -- --
-0.003
35 0.142 +0.003 0.141 0.143 0.167 0.170 0.173 0.023 0.178 1120.02 2750 21 -- -- --
-0.002
34 0.16 +0.003 0.159 0.161 0.185 0.188 0.191 0.023 0.198 890.6 2975 22 -- -- --
-0.003
33 0.18 +0.003 0.179 0.181 0.207 0.211 0.215 0.025 0.221 692.85 3250 23 -- -- --
-0.002
32 0.203 +0.003 0.202 0.205 0.233 0.237 0.241 0.028 0.246 543.36 3525 24 -- -- --
-0.002
31 0.226 +0.003 0.225 0.228 0.258 0.262 0.266 0.030 0.274 437.51 3825 24 -- -- --
-0.002
30 0.254 +0.002 0.252 0.256 0.289 0.293 0.297 0.033 0.307 348.45 4150 25 66 525 450
-0.003
29 0.287 +0.003 0.285 0.289 0.328 0.332 0.336 0.038 0.338 272.17 4250 26 61 560 480
-0.003
28 0.32 +0.003 0.318 0.322 0.364 0.368 0.372 0.041 0.373 217.08 4375 26 55 595 510
-0.002
27 0.361 +0.002 0.358 0.363 0.404 0.409 0.414 0.041 0.419 171.28 4500 27 50 635 540
-0.003
26 0.404 +0.002 0.401 0.406 0.449 0.454 0.459 0.043 0.462 137.89 4600 27 76 675 575
-0.005
25 0.455 +0.002 0.452 0.457 0.503 0.508 0.513 0.046 0.516 108.41 4725 28 72 720 615
-0.005
24 0.511 +0.002 0.507 0.513 0.561 0.566 0.571 0.048 0.577 86.08 4850 28 67 770 655
-0.006
23 0.574 +0.003 0.570 0.576 0.627 0.632 0.637 0.051 0.643 67.80 5000 29 62 820 700
-0.005
22 0.643 +0.002 0.639 0.645 0.698 0.703 0.708 0.053 0.714 54.44 5125 29 58 880 750
-0.008
21 0.724 +0.002 0.720 0.726 0.782 0.788 0.794 0.056 0.800 42.82 5250 30 53 940 800
-0.008
20 0.813 +0.005 0.808 0.816 0.877 0.883 0.889 0.061 0.892 33.88 5400 30 66 1000 850
-0.008
19 0.912 +0.005 0.907 0.915 0.979 0.985 0.991 0.064 0.993 26.98 5550 31 62 1070 910
-0.010
18 1.024 +0.005 1.019 1.027 1.093 1.099 1.105 0.066 1.110 21.39 5700 32 58 1150 980
-0.011
17 1.151 +0.005 1.145 1.154 1.225 1.231 1.237 0.071 1.240 16.95 5850 32 54 1230 1045
-0.013
16 1.29 +0.008 1.284 1.293 1.368 1.374 1.380 0.074 1.384 13.44 6000 33 50 1310 1115
-0.012
15 1.450 +0.008 1.444 1.453 1.530 1.536 1.542 0.076 1.549 10.66 6175 33 46 1400 1190
-0.015
14 1.628 +0.008 1.621 1.631 1.713 1.720 1.727 0.081 1.732 8.44 6325 33 42 1490 1270
-0.015
13 1.829 +0.010 1.822 1.832 1.915 1.922 1.929 0.081 1.935 6.69 5600 34 -- 1490 1270
-0.018
12 2.052 +0.010 2.044 2.056 2.138 2.146 2.154 0.081 2.162 5.32 5800 34 -- 1490 1270
-0.02
11 2.304 +0.012 2.296 2.308 2.393 2.402 2.411 0.084 2.418 4.22 6000 35 -- 1490 1270
-0.023
10 2.588 +0.013 2.580 2.592 2.682 2.690 2.698 0.086 2.703 3.34 6200 35 -- 1940 1270
-0.025
9 2.906 +0.015 2.896 2.910 3.000 3.009 3.018 0.086 3.023 2.65 3200 36 -- -- --
-0.028
8 3.264 +0.018 3.254 3.268 3.361 3.370 3.378 0.089 3.383 2.1 3300 36 -- -- --
-0.033
The above single wear resistance values apply to MW-5C 35C 81C 30C 75C 79C 80C 76C 28C 24C. The voltage resistance applies to MW-5C 35C 81C 30C 75C 79C 26C 77C.
