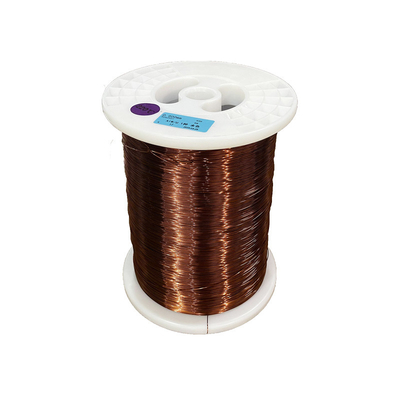

18 AWG Red Single Round Enamelled Copper Wire For Motor Winding, Transformer Winding

Products

18 AWG Red Single Round Enamelled Copper Wire For Motor Winding, Transformer Winding

MOQ:	The MOQ Varies According to the Size of the Specification
Price:	Copper Price plus Processing Fee plus Freight
Standard Packaging:	Box
Delivery Period:	3-5 Work Days
Payment Method:	T/T 100% Payment before Shipment
Supply Capacity:	Delivery 10-15 Days after Next Order

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

PEWSC

Certification

UL,ROHS

Model Number

Document

Shape:

Round

Enamel Thickness:

Single

Size Range:

18 AWG

Color:

For High Temperature Motor

Temperature Grade:

3 Years

Conductor Diameter:

For Solderable Material、Small Transformer

Highlight:

18 AWG Enamelled Copper Wire

Motor Winding Enamelled Copper Wire

Transformer Winding Enamelled Copper Wire

Product Description

Features:

Product Name: Enamel Magnet Wire
Application: Motor Winding, Transformer Winding
Certifications: UL, RoHS
Thermal Grade: 180℃
Conductor Diameter: 0.071mm-0.710mm
Color: Red

This Enamel Magnet Wire is also known as Enamelled Round Copper Wire or Copper Enameled Wire. It can be used in applications such as Motor Winding and Transformer Winding. This wire has been certified by UL and RoHS. Its thermal grade is 180℃ and it comes in a range of conductor diameters from 0.071mm to 0.710mm. The wire is easily identifiable due to its distinct red color. This wire can be produced using a Copper Wire Enamelling Machine.

Technical Parameters:

Shape	Round
Application	Motor Winding, Transformer Winding
Wire Gauge	18 AWG
Standard	JIS
Sample	Free
Warranty	3 Years
Enamel Thickness	Single
Color	Red
Thermal Grade	180℃
Certifications	UL, RoHS

Applications:

PEWN is an 18 AWG wire that is commonly used for motor winding and transformer winding. It is perfect for applications that require high reliability and long-lasting performance. The wire's enamel coating ensures that it is protected against corrosion and other forms of damage, making it ideal for use in harsh environments.

PEWSC offers free samples of the PEWN Enamelled Copper Winding Wire, so customers can test it out before committing to a purchase. This demonstrates the company's commitment to customer satisfaction and their confidence in the quality of their product.

The PEWN Enamelled Copper Winding Wire is versatile and can be used in a variety of scenarios. It is commonly used in the manufacturing of motors, generators, transformers, and other electrical equipment. The wire's excellent electrical conductivity and insulation properties make it a popular choice for these applications.

In addition, PEWN can also be used in household appliances such as air conditioners, refrigerators, and washing machines. The wire's high thermal resistance and durability make it an ideal choice for these appliances, which are often subjected to high temperatures and harsh conditions.

Overall, PEWSC's PEWN Enamelled Copper Winding Wire is a reliable and versatile product that is suitable for a wide range of applications. Its excellent thermal resistance, durability, and electrical properties make it an ideal choice for motor winding and transformer winding applications.

18 AWG Red Single Round Enamelled Copper Wire For Motor Winding, Transformer Winding 0

18 AWG Red Single Round Enamelled Copper Wire For Motor Winding, Transformer Winding 1

		NEMA---Single												Unit﹕mm
AWG	Diameter of Conduct		Conductor Control Benchmarks		OD Control Benchmarks			Specification Boundaries		Conductor Resistance 20℃ (Ω/KM)	Insulation breakdownvoltage (v)	Min Elongation (%)	Max. Springiness (°)	Resistance to abrasion
			Lower Limit	Upper Limit	Lower Limit	Median	Upper Limit	Min. Increase in Diameter	Max. Finished overall Diameter					Average	Minimum
44	0.051	+0.002	0.050	0.052	0.056	0.059	0.060	0.005	0.061	9527.95	500	14	--	--	--
		-0.003
43	0.056	+0.002	0.055	0.057	0.063	-------	0.066	0.005	0.069	7815.03	550	15	--	--	--
		-0.003
42	0.064	+0.002	0.063	0.065	0.071	0.073	0.075	0.005	0.076	5899.60	625	16	--	--	--
		-0.003
41	0.071	+0.003	0.070	0.072	0.079	0.081	0.083	0.008	0.084	4610.88	700	17	--	--	--
		-0.002
40	0.079	+0.002	0.078	0.080	0.087	0.090	0.093	0.008	0.094	3800.62	775	17	--	--	--
		-0.003
39	0.089	+0.002	0.088	0.090	0.099	0.102	0.105	0.008	0.107	2968.15	850	18	--	--	--
		-0.003
38	0.102	+0.002	0.101	0.103	0.111	0.114	0.117	0.008	0.118	2239.81	950	19	--	--	--
		-0.003
37	0.114	+0.003	0.113	0.115	0.125	0.128	0.131	0.010	0.132	1750.03	1075	20	--	--	--
		-0.002
36	0.127	+0.003	0.126	0.128	0.139	0.142	0.145	0.010	0.147	1427.71	1200	20	--	--	--
		-0.003
35	0.142	+0.003	0.141	0.143	0.154	0.157	0.160	0.010	0.165	1120.02	1325	21	--	--	--
		-0.002
34	0.16	+0.003	0.159	0.161	0.175	0.178	0.181	0.013	0.183	890.60	1500	22	--	--	--
		-0.003
33	0.18	+0.003	0.179	0.181	0.195	0.199	0.203	0.013	0.206	692.85	1675	23	--	--	--
		-0.002
32	0.203	+0.003	0.202	0.205	0.220	0.224	0.228	0.015	0.229	543.36	1850	24	--	--	--
		-0.002
31	0.226	+0.003	0.225	0.228	0.243	0.247	0.251	0.015	0.254	437.51	2075	24	--	--	--
		-0.002
30	0.254	+0.002	0.252	0.256	0.274	0.278	0.282	0.018	0.284	348.45	2300	25	66	295	250
		-0.003
29	0.287	+0.003	0.285	0.289	0.308	0.312	0.316	0.018	0.320	272.17	2375	26	61	310	265
		-0.003
28	0.32	+0.003	0.318	0.322	0.343	0.347	0.351	0.020	0.356	217.08	2425	26	55	335	285
		-0.002
27	0.361	+0.002	0.358	0.363	0.383	0.387	0.391	0.020	0.396	171.28	2500	27	50	355	300
		-0.003
26	0.404	+0.002	0.401	0.406	0.429	0.433	0.437	0.023	0.439	137.89	2550	27	76	380	325
		-0.005
25	0.455	+0.002	0.452	0.457	0.480	0.485	0.490	0.023	0.493	108.41	2625	28	72	400	340
		-0.005
24	0.511	+0.002	0.507	0.513	0.538	0.543	0.548	0.025	0.551	86.08	2700	28	67	430	365
		-0.006
23	0.574	+0.003	0.570	0.576	0.601	0.606	0.611	0.025	0.617	67.8	2775	29	62	460	390
		-0.005
22	0.643	+0.002	0.639	0.645	0.673	0.678	0.683	0.028	0.686	54.44	2850	29	58	490	415
		-0.008
21	0.724	+0.002	0.720	0.726	0.754	0.760	0.766	0.028	0.770	42.82	2925	30	53	525	445
		-0.008
20	0.813	+0.005	0.808	0.816	0.846	0.852	0.858	0.030	0.864	33.88	3000	30	66	560	475
		-0.008
19	0.912	+0.005	0.907	0.915	0.945	0.951	0.957	0.030	0.963	26.98	3075	31	62	600	510
		-0.01
18	1.024	+0.005	1.019	1.027	1.060	1.066	1.072	0.033	1.077	21.39	3175	32	58	645	550
		-0.011
17	1.151	+0.005	1.145	1.154	1.190	1.196	1.202	0.036	1.207	16.95	3250	32	54	690	585
		-0.013
16	1.29	+0.008	1.284	1.293	1.330	1.336	1.342	0.036	1.349	13.44	3325	33	50	735	625
		-0.012
15	1.45	+0.008	1.444	1.453	1.492	1.498	1.505	0.038	1.509	10.66	3425	33	46	780	665
		-0.015
14	1.628	+0.008	1.621	1.631	1.673	1.680	1.687	0.041	1.692	8.44	3525	33	42	840	715
		-0.015
The above single wear resistance value is applicable to MW-5C 35C 30C 81C 80C 24C 28C 76C , voltage resistance is applicable to MW-5C 35C 30C 81C 79C 75C 77C 26C .
