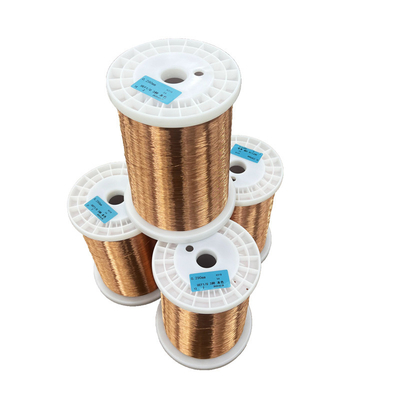

0.10mm-3.35mm Diameter Enamelled Copper Magnet Wire for Industrial Applications

Products

0.10mm-3.35mm Diameter Enamelled Copper Magnet Wire for Industrial Applications

MOQ:	300KG
Price:	It depends on order
Standard Packaging:	Carton
Delivery Period:	3-5 work days
Payment Method:	cash on payments
Supply Capacity:	Delivery 10-15 Days after Next Order

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

PEWSC

Certification

Model Number

UEF1/U3

Document

Origin Country:

China

Application:

Motors, Transformers, Generators, Coils, Solenoids

Insulation Material:

Enamel

Insulation Class:

Class155

Wire Diameter:

0.10mm-3.35mm

Material:

Copper

Warranty:

3 Years

Enamel Thickness:

Class Three

Highlight:

3.35mm Enamelled Copper Magnet Wire

0.10mm Enamelled Copper Magnet Wire

Industrial Applications Enamelled Copper Magnet Wire

Product Description

Product Description:

The Insulated Copper Winding Wire is an essential component in various electrical applications, known for its high conductivity and durability. This particular product features a Class Three enamel thickness, ensuring reliable insulation for optimal performance.

With a generous 3-year warranty, customers can trust in the quality and longevity of this Enameled Magnet Wire. Whether used in motors, transformers, generators, coils, or solenoids, this wire is designed to meet the demands of diverse electrical systems.

The wire diameter ranges from 0.10mm to 3.35mm, offering versatility for different projects and applications. Made from high-quality copper, this Insulated Copper Winding Wire guarantees efficient energy transfer and exceptional conductivity.

Applications:

Enameled Copper Winding Wire by PEWSC is a versatile product suitable for a wide range of applications. With the model number UEF1/U3, this high-quality wire originates from China and carries the prestigious UL certification.

Designed for reliability and durability, this product is ideal for various occasions and scenarios. Whether you are working on electrical machinery, transformers, or other electrical equipment, the Enameled Copper Winding Wire is a perfect choice. Its excellent insulation properties make it suitable for use in motors, generators, and coils.

With a minimum order quantity of 300KG, the price of this product depends on the order specifications. It is conveniently packaged in cartons for easy transportation and storage. The delivery time for the Enameled Copper Winding Wire is typically 3-5 work days, ensuring quick availability for your projects.

Payment terms for this product include cash on payments, providing flexibility for your purchasing needs. PEWSC guarantees a supply ability that ensures delivery within 10-15 days after the next order is placed, enabling you to plan your projects efficiently.

The Enameled Copper Winding Wire features insulation material made of enamel, with an insulation class of Class155 and enamel thickness of Class Three. The wire diameter ranges from 0.10mm to 3.35mm, offering versatility for various applications.

When you choose the Enameled Copper Winding Wire from PEWSC, you also benefit from a 3-year warranty, giving you peace of mind regarding the product's quality and performance. Trust in the reliability of Enameled Copper Conductors and Insulated Copper Winding Wire for your electrical projects.

Customization:

Product Customization Services for the Enameled Copper Winding Wire:

Brand Name: PEWSC

Model Number: UEF1/U3

Place of Origin: China

Certification: UL

Minimum Order Quantity: 300KG

Price: It depends on order

Packaging Details: Carton

Delivery Time: 3-5 work days

Payment Terms: cash on payments

Supply Ability: Delivery 10-15 Days after Next Order

Warranty: 3 Years

Insulation Material: Enamel

Material: Copper

Insulation Class: Class155

Application: Motors, Transformers, Generators, Coils, Solenoids

Packing and Shipping:

Product Name: Enameled Copper Winding Wire

Product Description: High-quality enameled copper wire suitable for various winding applications.

Package Includes: - Length: 100 meters - Diameter: 0.5mm - Material: Copper with enamel coating

Shipping Information: - Shipping Method: Standard Shipping - Shipping Time: 3-5 business days - Shipping Cost: Calculated at checkout

0.10mm-3.35mm Diameter Enamelled Copper Magnet Wire for Industrial Applications 0

JIS---3種
									Unit﹕mm
Diameter of Conduct	Conductor Control Benchmarks		OD Control Benchmarks			Specification Boundaries		Conductor Resistance 20℃ (Ω/KM)	Insulation breakdownvoltage (v)	Min Elongation (%)		Max. Springiness (°)	Resistance to abrasion
Diameter of Conduct	Lower Limit	Upper Limit	Lower Limit	Median	Upper Limit	Min. Increase in Diameter	Max. Finished overall Diameter	Conductor Resistance 20℃ (Ω/KM)	Insulation breakdownvoltage (v)	JIS	AWG	Max. Springiness (°)	Average	Minimum
0.04±0.002	0.039	0.041	0.045	0.047	0.050	0.004	0.052	15670	100	7	11	--	--	--
0.05±0.003	0.049	0.051	0.057	0.060	0.062	0.006	0.064	10240	700	10	14	--	--	--
0.06±0.003	0.059	0.061	0.067	0.070	0.072	0.006	0.075	6966	700	10	15	--	--	--
0.07±0.003	0.069	0.071	0.077	0.080	0.082	0.006	0.085	4990	700	10	17	--	--	--
0.08±0.003	0.079	0.081	0.087	0.091	0.094	0.006	0.097	3778	700	10	17	--	--	--
0.09±0.003	0.089	0.091	0.097	0.101	0.104	0.006	0.107	2959	700	10	18	--	--	--
0.10±0.003	0.099	0.101	0.107	0.110	0.114	0.006	0.118	2381	700	15	19	--	--	--
0.11±0.003	0.109	0.111	0.117	0.121	0.124	0.006	0.128	1957	700	15	19	--	--	--
0.12±0.003	0.119	0.121	0.129	0.132	0.135	0.008	0.139	1636	850	15	20	--	--	--
0.13±0.003	0.129	0.131	0.137	0.142	0.145	0.008	0.149	1389	850	15	20	--	--	--
0.14±0.003	0.139	0.141	0.149	0.152	0.155	0.008	0.159	1193	850	15	21	--	--	--
0.15±0.003	0.149	0.151	0.159	0.162	0.165	0.008	0.169	1037	850	15	21	--	--	--
0.16±0.003	0.159	0.161	0.171	0.174	0.177	0.010	0.181	908.8	850	15	22	--	--	--
0.17±0.003	0.169	0.171	0.181	0.184	0.187	0.010	0.191	803.2	850	15	23	--	--	--
0.18±0.003	0.179	0.181	0.191	0.194	0.197	0.010	0.202	715.0	1000	15	23	--	--	--
0.19±0.003	0.189	0.191	0.201	0.204	0.208	0.010	0.212	640.6	1000	15	23	--	--	--
0.20±0.003	0.198	0.201	0.211	0.214	0.218	0.010	0.222	577.2	1000	15	24	--	--	--
0.21±0.003	0.208	0.212	0.221	0.224	0.228	0.010	0.232	522.8	1000	15	24	--	--	--
0.22±0.004	0.218	0.222	0.231	0.235	0.239	0.010	0.243	480.1	1000	15	24	--	--	--
0.23±0.004	0.228	0.232	0.243	0.246	0.249	0.012	0.255	438.6	1000	15	24	--	--	--
0.24±0.004	0.238	0.242	0.253	0.256	0.259	0.012	0.265	402.2	1000	15	24	--	--	--
0.25±0.004	0.248	0.252	0.263	0.266	0.269	0.012	0.275	370.2	1000	15	25	66	--	--
0.26±0.004	0.258	0.262	0.273	0.276	0.279	0.012	0.285	341.8	1000	15	25	66	163	133
0.27±0.004	0.268	0.272	0.283	0.286	0.289	0.012	0.295	316.6	1000	15	26	61	163	133
0.28±0.004	0.278	0.282	0.293	0.296	0.299	0.012	0.305	294.4	1000	15	26	61	163	133
0.29±0.004	0.288	0.292	0.303	0.306	0.309	0.012	0.315	273.9	1000	20	26	61	163	133
0.30±0.005	0.298	0.302	0.315	0.319	0.323	0.014	0.327	254.0	1400	20	26	61	194	163
0.32±0.005	0.317	0.322	0.335	0.339	0.343	0.014	0.347	222.8	1400	20	26	55	194	163
0.35±0.005	0.347	0.352	0.365	0.369	0.373	0.014	0.377	185.7	1400	20	27	50	194	163
0.37±0.005	0.367	0.372	0.385	0.389	0.393	0.014	0.397	165.9	1400	20	27	50	194	163
0.40±0.005	0.397	0.402	0.415	0.419	0.425	0.014	0.429	141.7	1400	20	27	76	204	163
0.45±0.006	0.446	0.452	0.465	0.469	0.475	0.014	0.479	112.1	1400	20	28	72	204	173
0.50±0.006	0.496	0.502	0.517	0.522	0.527	0.016	0.531	89.95	1450	20	28	67	235	204
0.55±0.006	0.546	0.552	0.567	0.572	0.577	0.016	0.581	74.18	1450	20	29	62	245	204
0.60±0.008	0.596	0.602	0.617	0.623	0.628	0.016	0.632	62.64	1450	20	29	62	245	204
