0.10mm - 3.20mm Modified Polyester Copper Wire Thermal Class 155 For High Temp Motor

Products

0.10mm - 3.20mm Modified Polyester Copper Wire Thermal Class 155 For High Temp Motor

MOQ:	The MOQ varies according to the size of the specification
Price:	Copper price plus processing fee plus freight
Standard Packaging:	Box
Delivery Period:	3-5 work days
Payment Method:	T/T 100% payment before shipment
Supply Capacity:	Delivery 10-15 days after next order

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

PEWSC

Certification

UL,ROHS

Model Number

PEWF Grade three

Document

Model:

PEWF Grade Three

Material:

Copper

Insulation Material:

Enamelled

Voltage Rating:

2800V The Voltage Resistance Varies According To The Thickness Of The Film And The Size Of The Specification

Hierarchy Thickness:

Grade Three

Size:

0.10mm-3.20mm

Applications:

For High Temperature Moter,other Electric Appliances

Standard:

GB、IEC

Color:

Could Be Customized

Packaging:

Carton

Highlight:

0.10mm Modified Polyester Copper Wire

3.20mm Modified Polyester Copper Wire

Product Description

Enameled Wire PEWF (Polyester Fiber) Grade Three is an economical insulated wire designed for routine electrical applications. The core of this wire is made of standard pure copper conductors coated with a uniform, continuous layer of polyester fiber enamel to provide good electrical performance and heat resistance.

Enameled Wire PEWF (Polyester Fiber) is a high performance insulated wire utilizing polyester fiber as the main insulating material and pure copper as the conductor. This wire offers excellent electrical properties and physical durability through its advanced manufacturing process and high quality materials, and is widely used in modern electrical engineering and electronic devices.

When using PEWF enameled wire, all relevant safety codes and operating guidelines should be followed to ensure that the wire is used in an appropriate environment, that excessive bending or stretching is avoided, and that periodic inspections are conducted to maintain optimum performance.

PEWF enameled wires play a key role in modern electrical applications due to their excellent electrical properties and physical durability. Whether it is under high temperature conditions or where insulation properties are required, PEWF enameled wires offer reliable solutions for complex and demanding applications. By choosing PEWF enameled wire, you will have a cost-effective electrical material option that will provide your project with long-term, consistent performance.

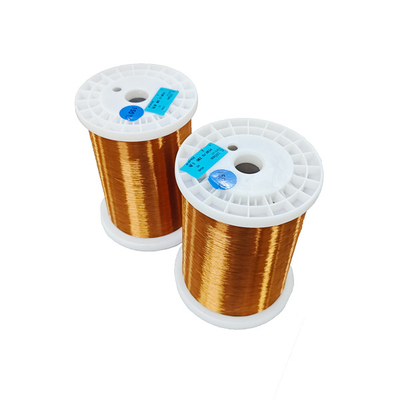

0.10mm - 3.20mm Modified Polyester Copper Wire Thermal Class 155 For High Temp Motor 0

GB ---Grade3 Unit﹕mm
Diameter of Conduct	Conductor Tolerance	Conductor Control Benchmarks		OD Control Benchmarks		Specification Boundaries		Conductor Resistance 20℃ (Ω/KM)	Min Elongation (%)	Max. Springiness (°)	Insulation breakdown voltage (v)
Diameter of Conduct	Conductor Tolerance	Lower Limit	Upper Limit	Lower Limit	Upper Limit	Min. Increase in Diameter	Max. Finished overall Diameter	Conductor Resistance 20℃ (Ω/KM)	Min Elongation (%)	Max. Springiness (°)	Insulation breakdown voltage (v)
0.071	±0.003	0.070	0.072	0.09	0.095	0.018	0.097	4747	13	--	1100
0.080	±0.003	0.079	0.081	0.101	0.107	0.020	0.108	3703	14	100	1200
0.090	±0.003	0.089	0.091	0.113	0.119	0.022	0.120	2900	15	94	1300
0.100	±0.003	0.099	0.101	0.124	0.131	0.023	0.132	2333	16	90	1400
0.112	±0.003	0.111	0.114	0.139	0.146	0.026	0.147	1848	17	88	3900
0.125	±0.003	0.124	0.127	0.154	0.161	0.028	0.163	1475	17	84	4100
0.140	±0.003	0.139	0.142	0.171	0.178	0.030	0.181	1170	18	79	4200
0.160	±0.003	0.159	0.162	0.194	0.201	0.033	0.205	890.6	19	78	4400
0.180	±0.003	0.179	0.182	0.218	0.225	0.036	0.229	700.7	20	75	4700
0.200	±0.003	0.199	0.202	0.241	0.249	0.039	0.252	565.7	21	72	5100
0.224	±0.003	0.223	0.226	0.269	0.277	0.043	0.280	449.5	21	68	5200
0.250	±0.004	0.249	0.253	0.301	0.309	0.048	0.312	362.8	22	65	5500
0.280	±0.004	0.279	0.283	0.333	0.341	0.050	0.345	288.2	22	61	5800
0.315	±0.004	0.314	0.317	0.371	0.38	0.053	0.384	227.0	23	62	6100
0.355	±0.004	0.354	0.357	0.415	0.423	0.057	0.428	178.2	23	59	6400
0.400	±0.005	0.398	0.403	0.464	0.474	0.060	0.478	140.7	24	55	6600
0.450	±0.005	0.448	0.453	0.518	0.528	0.064	0.533	110.9	25	53	6800
0.500	±0.005	0.498	0.503	0.571	0.581	0.067	0.587	89.59	25	51	7000
0.560	±0.006	0.557	0.563	0.635	0.645	0.071	0.653	71.53	26	48	7100
0.630	±0.006	0.627	0.633	0.709	0.721	0.075	0.728	56.38	27	53	7100
0.710	±0.007	0.707	0.714	0.795	0.807	0.080	0.814	44.42	28	50	7200
0.800	±0.008	0.797	0.804	0.89	0.902	0.085	0.911	35.00	28	46	7400
0.900	±0.009	0.897	0.904	0.995	1.007	0.090	1.018	27.65	29	51	7600
1.000	±0.010	0.997	1.004	1.1	1.114	0.095	1.124	22.40	30	47	7600
1.120	±0.011	1.116	1.124	1.223	1.237	0.098	1.248	17.85	30	34	7600
1.250	±0.013	1.246	1.254	1.355	1.369	0.100	1.381	14.35	31	39	7600
1.400	±0.014	1.396	1.406	1.509	1.523	0.103	1.535	11.43	32	36	7600
1.600	±0.016	1.596	1.606	1.714	1.73	0.107	1.740	8.75	32	32	7600
1.800	±0.018	1.796	1.806	1.917	1.933	0.110	1.944	6.91	32		7600
2.000	±0.020	1.994	2.006	2.12	2.136	0.113	2.148	5.60	33		7600
2.240	±0.022	2.234	2.246	2.363	2.381	0.116	2.392	4.46	33		7600
2.500	±0.025	2.494	2.506	2.626	2.644	0.119	2.656	3.58	33		7600
2.800	±0.028	2.794	2.808	2.932	2.95	0.123	2.961	2.86	34		3800
3.150	±0.032	3.144	3.158	3.286	3.306	0.127	3.316	2.26	34		3800
