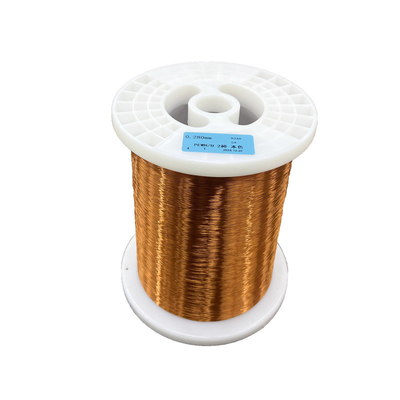

Polyester Imide Enameled Copper Winding Wire JIS Standard For High Temperature Motor

Products

Polyester Imide Enameled Copper Winding Wire JIS Standard For High Temperature Motor

MOQ:	The MOQ Varies According to the Size of the Specification
Price:	Copper Price plus Processing Fee plus Freight
Standard Packaging:	Box
Delivery Period:	3-5 Work Days
Payment Method:	T/T 100% Payment before Shipment
Supply Capacity:	Delivery 10-15 Days after Next Order

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

PEWSC

Certification

UL,ROHS

Model Number

PEWH U3

Document

Product Type:

PEWH U3

Voltage Rating:

2800V The Voltage Resistance Varies According To The Thickness Of The Film And The Size Of The Specification

Standard:

Temperature Class:

Color Option:

Natural、Red、Green、Blue、Yellow

Specification:

0.10mm-3.20mm

Enamel Thickness:

Class 3

Conductor Shape:

Round

Conductor Material:

Enameled Copper

Warranty:

3 Years

Highlight:

JIS Standard Enameled Copper Winding Wire

Polyester Imide Enameled Copper Winding Wire

Product Description

High-quality materials: High-purity oxygen-free copper is chosen as the conductor to ensure good conductivity and tensile strength, while reducing resistance and energy loss.

Insulation Coating: Using advanced insulation coating technology, the coating is uniform and smooth, which not only provides excellent insulation performance, but also helps to reduce current leakage and electromagnetic interference.

High Temperature Resistance: UEHN enameled wire has excellent high temperature resistance and maintains stable electrical characteristics even under continuous load or intermittent high temperature conditions.

Environmental protection certification: All materials comply with international environmental protection standards, no release of harmful substances, friendly to the environment, while protecting the health and safety of users.

Wide range of applications: Due to its excellent overall performance, UEHN Premium Enameled Wire is widely used in the manufacture of transformers, motors, generators, coils and other electrical equipment.

UEHN Premium Enameled Wire is ideal for electrical engineers and manufacturers seeking high performance, reliability, and long-term durability. With its superior quality and wide range of applications, it has become one of the trusted brands in the industry.

Polyester Imide Enameled Copper Winding Wire JIS Standard For High Temperature Motor 0

JIS---3種
									Unit﹕mm
Diameter of Conduct	Conductor Control Benchmarks		OD Control Benchmarks			Specification Boundaries		Conductor Resistance 20℃ (Ω/KM)	Insulation breakdownvoltage (v)	Min Elongation (%)		Max. Springiness (°)	Resistance to abrasion
Diameter of Conduct	Lower Limit	Upper Limit	Lower Limit	Median	Upper Limit	Min. Increase in Diameter	Max. Finished overall Diameter	Conductor Resistance 20℃ (Ω/KM)	Insulation breakdownvoltage (v)	JIS	AWG	Max. Springiness (°)	Average	Minimum
0.04±0.002	0.039	0.041	0.045	0.047	0.050	0.004	0.052	15670	100	7	11	--	--	--
0.05±0.003	0.049	0.051	0.057	0.060	0.062	0.006	0.064	10240	700	10	14	--	--	--
0.06±0.003	0.059	0.061	0.067	0.070	0.072	0.006	0.075	6966	700	10	15	--	--	--
0.07±0.003	0.069	0.071	0.077	0.080	0.082	0.006	0.085	4990	700	10	17	--	--	--
0.08±0.003	0.079	0.081	0.087	0.091	0.094	0.006	0.097	3778	700	10	17	--	--	--
0.09±0.003	0.089	0.091	0.097	0.101	0.104	0.006	0.107	2959	700	10	18	--	--	--
0.10±0.003	0.099	0.101	0.107	0.110	0.114	0.006	0.118	2381	700	15	19	--	--	--
0.11±0.003	0.109	0.111	0.117	0.121	0.124	0.006	0.128	1957	700	15	19	--	--	--
0.12±0.003	0.119	0.121	0.129	0.132	0.135	0.008	0.139	1636	850	15	20	--	--	--
0.13±0.003	0.129	0.131	0.137	0.142	0.145	0.008	0.149	1389	850	15	20	--	--	--
0.14±0.003	0.139	0.141	0.149	0.152	0.155	0.008	0.159	1193	850	15	21	--	--	--
0.15±0.003	0.149	0.151	0.159	0.162	0.165	0.008	0.169	1037	850	15	21	--	--	--
0.16±0.003	0.159	0.161	0.171	0.174	0.177	0.010	0.181	908.8	850	15	22	--	--	--
0.17±0.003	0.169	0.171	0.181	0.184	0.187	0.010	0.191	803.2	850	15	23	--	--	--
0.18±0.003	0.179	0.181	0.191	0.194	0.197	0.010	0.202	715.0	1000	15	23	--	--	--
0.19±0.003	0.189	0.191	0.201	0.204	0.208	0.010	0.212	640.6	1000	15	23	--	--	--
0.20±0.003	0.198	0.201	0.211	0.214	0.218	0.010	0.222	577.2	1000	15	24	--	--	--
0.21±0.003	0.208	0.212	0.221	0.224	0.228	0.010	0.232	522.8	1000	15	24	--	--	--
0.22±0.004	0.218	0.222	0.231	0.235	0.239	0.010	0.243	480.1	1000	15	24	--	--	--
0.23±0.004	0.228	0.232	0.243	0.246	0.249	0.012	0.255	438.6	1000	15	24	--	--	--
0.24±0.004	0.238	0.242	0.253	0.256	0.259	0.012	0.265	402.2	1000	15	24	--	--	--
0.25±0.004	0.248	0.252	0.263	0.266	0.269	0.012	0.275	370.2	1000	15	25	66	--	--
0.26±0.004	0.258	0.262	0.273	0.276	0.279	0.012	0.285	341.8	1000	15	25	66	163	133
0.27±0.004	0.268	0.272	0.283	0.286	0.289	0.012	0.295	316.6	1000	15	26	61	163	133
0.28±0.004	0.278	0.282	0.293	0.296	0.299	0.012	0.305	294.4	1000	15	26	61	163	133
0.29±0.004	0.288	0.292	0.303	0.306	0.309	0.012	0.315	273.9	1000	20	26	61	163	133
0.30±0.005	0.298	0.302	0.315	0.319	0.323	0.014	0.327	254.0	1400	20	26	61	194	163
0.32±0.005	0.317	0.322	0.335	0.339	0.343	0.014	0.347	222.8	1400	20	26	55	194	163
0.35±0.005	0.347	0.352	0.365	0.369	0.373	0.014	0.377	185.7	1400	20	27	50	194	163
0.37±0.005	0.367	0.372	0.385	0.389	0.393	0.014	0.397	165.9	1400	20	27	50	194	163
0.40±0.005	0.397	0.402	0.415	0.419	0.425	0.014	0.429	141.7	1400	20	27	76	204	163
0.45±0.006	0.446	0.452	0.465	0.469	0.475	0.014	0.479	112.1	1400	20	28	72	204	173
0.50±0.006	0.496	0.502	0.517	0.522	0.527	0.016	0.531	89.95	1450	20	28	67	235	204
0.55±0.006	0.546	0.552	0.567	0.572	0.577	0.016	0.581	74.18	1450	20	29	62	245	204
0.60±0.008	0.596	0.602	0.617	0.623	0.628	0.016	0.632	62.64	1450	20	29	62	245	204
