GB Standard Round Polyester Imide Enameled Wire For High Temperature Motor with Natural Colors

Products

GB Standard Round Polyester Imide Enameled Wire For High Temperature Motor with Natural Colors

MOQ:	The MOQ Varies According to the Size of the Specification
Price:	Copper Price plus Processing Fee plus Freight
Standard Packaging:	Box
Delivery Period:	3-5 Work Days
Payment Method:	T/T 100% Payment before Shipment
Supply Capacity:	Delivery 10-15 Days after Next Order

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

PEWSC

Certification

UL,ROHS

Model Number

Document

Product Model:

Rated Voltage:

2800V The Voltage Resistance Varies According To The Thickness Of The Film And The Size Of The Specification

Standard:

GB、IEC

Temperature Grade:

Colors:

Natural

Wire Diameter:

0.10mm-3.20mm

Hierachy Thickness:

Heavy

Shape:

Round

Conductor Material:

Enameled Copper

Warranty:

3 Years

Application:

For High Voltage Solenoid Coil

Package:

Highlight:

High Temperature Enameled Wire

GB Standard Enameled Wire

Round Polyester Imide Enameled Wire

Product Description

Grade 1 is the thinnest insulation grade available for applications where space and weight are critical.

The superior heat resistance of PEWH up to 180°C makes it more suitable for applications such as motors and transformers in high temperature environments.

Excellent electrical properties: PEWH's modified polyester insulation layer thickness of 0.1-0.5mm provides reliable insulation protection in high voltage environments.

Good chemical resistance: PEWH polyimide outer layers are highly resistant to a wide range of chemicals and solvents, making them suitable for industrial applications in harsh environments.

PEWH enameled wire is a premium electromagnetic wire material designed for high performance and durability in a variety of harsh environments for motor and transformer applications. This enameled wire utilizes specially modified insulating coatings and advanced manufacturing processes to ensure excellent insulating properties and resistance to heat, cold and chemicals.

The key features of PEWH products are their highly uniform coating thickness and superior surface smoothness, which greatly reduces friction and abrasion during winding and improves coil quality and consistency. In addition, the conductor portion of PEWH enameled wire is made of selected highly conductive copper materials, which not only ensures excellent current transfer capability, but also provides good mechanical strength and ductility, maintaining stable performance even under extreme temperature changes or mechanical vibrations.

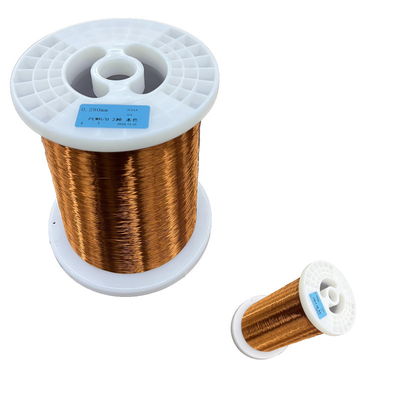

GB Standard Round Polyester Imide Enameled Wire For High Temperature Motor with Natural Colors 0

GB Standard Round Polyester Imide Enameled Wire For High Temperature Motor with Natural Colors 1

GB ---Grade1 Unit﹕mm
Diameter of Conduct	Conductor Tolerance	Conductor Control Benchmarks		OD Control Benchmarks		Specification Boundaries		Conductor Resistance 20℃ (Ω/KM)	Min Elongation (%)	Max. Springiness (°)	Insulation breakdown voltage (v)
Diameter of Conduct	Conductor Tolerance	Lower Limit	Upper Limit	Lower Limit	Upper Limit	Min. Increase in Diameter	Max. Finished overall Diameter	Conductor Resistance 20℃ (Ω/KM)	Min Elongation (%)	Max. Springiness (°)	Insulation breakdown voltage (v)
0.040	±0.002	0.039	0.041	0.045	0.049	0.004	0.049	15202	9		250
0.045	±0.003	0.044	0.046	0.051	0.055	0.005	0.055	12445	9		275
0.050	±0.003	0.049	0.051	0.056	0.060	0.005	0.060	9938	10		300
0.056	±0.003	0.055	0.057	0.063	0.067	0.006	0.067	7815	10		325
0.063	±0.003	0.062	0.064	0.071	0.076	0.007	0.076	6098	12		375
0.071	±0.003	0.070	0.072	0.079	0.084	0.007	0.084	4747	13		425
0.080	±0.003	0.079	0.081	0.088	0.094	0.007	0.094	3703	14	70	425
0.090	±0.003	0.089	0.091	0.099	0.105	0.008	0.105	2900	15	67	500
0.100	±0.003	0.099	0.101	0.109	0.116	0.008	0.117	2333	16	64	500
0.112	±0.003	0.111	0.114	0.122	0.129	0.009	0.130	1848	17	64	1300
0.125	±0.003	0.124	0.127	0.136	0.143	0.010	0.144	1475	17	62	1500
0.140	±0.003	0.139	0.142	0.152	0.159	0.011	0.160	1170	18	59	1600
0.160	±0.003	0.159	0.162	0.173	0.180	0.012	0.182	890.6	19	59	1700
0.180	±0.003	0.179	0.182	0.195	0.202	0.013	0.204	700.7	20	57	1700
0.200	±0.003	0.199	0.202	0.216	0.224	0.014	0.226	565.7	21	54	1800
0.224	±0.003	0.223	0.226	0.241	0.249	0.015	0.252	449.5	21	51	1900
0.250	±0.004	0.249	0.253	0.270	0.278	0.017	0.281	362.8	22	49	2100
0.280	±0.004	0.279	0.283	0.301	0.309	0.018	0.312	288.2	22	47	2200
0.315	±0.004	0.314	0.317	0.337	0.346	0.019	0.349	227.0	23	50	2200
0.355	±0.004	0.354	0.357	0.378	0.387	0.020	0.392	178.2	23	48	2300
0.400	±0.005	0.398	0.403	0.425	0.435	0.021	0.439	140.7	24	45	2300
0.450	±0.005	0.448	0.453	0.476	0.486	0.022	0.491	110.9	25	44	2300
0.500	±0.005	0.498	0.503	0.528	0.538	0.024	0.544	89.59	25	43	2400
0.560	±0.006	0.557	0.563	0.589	0.599	0.025	0.606	71.53	26	41	2500
0.630	±0.006	0.627	0.633	0.661	0.673	0.027	0.679	56.38	27	46	2600
0.710	±0.007	0.707	0.714	0.743	0.755	0.028	0.672	44.42	28	44	2600
0.800	±0.008	0.797	0.804	0.835	0.847	0.030	0.855	35.00	28	41	2600
0.900	±0.009	0.897	0.904	0.937	0.949	0.032	0.959	27.65	29	45	2700
1.000	±0.010	0.997	1.004	1.039	1.053	0.034	1.062	22.40	30	42	2700
1.120	±0.011	1.116	1.124	1.159	1.193	0.034	1.184	17.85	30	39	2700
1.250	±0.013	1.246	1.254	1.290	1.304	0.035	1.316	14.35	31	35	2700
1.400	±0.014	1.396	1.406	1.443	1.458	0.036	1.468	11.43	32	32	2700
1.600	±0.016	1.596	1.606	1.645	1.660	0.038	1.670	8.75	32	28	2700
