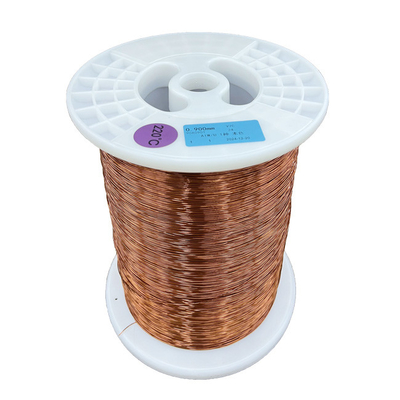

Polyamide Imide Enamelled High Temp Magnet Wire AIW Grade Two For Motors AWG 38-12

Products

Polyamide Imide Enamelled High Temp Magnet Wire AIW Grade Two For Motors AWG 38-12

MOQ:	The MOQ Varies According to the Size of the Specification
Price:	Copper Price plus Processing Fee plus Freight
Standard Packaging:	Box
Delivery Period:	3-5 Work Days
Payment Method:	T/T 100% Payment before Shipment
Supply Capacity:	Delivery 10-15 Days after Next Order

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

PEWSC

Certification

Model Number

AIW Grade two

Document

Product Name:

AIW Grade Two

Enamel ThicknessHierarchy:

Grade Two

Materials:

Copper

Wire Diameter:

AWG 38-12

Rated Voltage:

2800V The Voltage Resistance Varies According To The Thickness Of The Film And The Size Of The Specification

Colors Options:

Natural, Red

Thermal Class:

Application:

For Special High Temperature Motors

Certification:

UL,ROHS

Standard:

Highlight:

AWG 38-12 Magnet Wire

Polyamide Imide Enamelled Magnet Wire

AIW Grade Two Magnet Wire

Product Description

Enameled copper wire AIW is a conductor with excellent properties, utilizing highly conductive copper as the conductor and a uniformly coated insulating varnish as the outer insulation. This construction allows enameled copper wire to have not only excellent electrical conductivity, but also good insulating properties and mechanical strength for a wide range of electrical applications.

Wide range of application scenarios: Whether in high temperature and humid conditions, or in demanding electrical equipment, enameled copper wire AIW can provide reliable performance.

Customized service: We provide customized service, including different insulation thickness, color and softness options to meet specific application requirements.

Cost-effective: Compared with similar products, enameled copper wire AIW provides a more economical option to enhance project economics while maintaining high performance.

Technical Support: We have a professional technical team to provide customers with a full range of technical support and consulting services to ensure that customers choose the right product and apply it correctly.

Global Certification: Our products have passed a number of international certifications to ensure that customers around the world receive a consistent high quality experience.

Polyamide Imide Enamelled High Temp Magnet Wire AIW Grade Two For Motors AWG 38-12 0

GB ---Grade2 Unit﹕mm
Diameter of Conduct	Conductor Tolerance	Conductor Control Benchmarks		OD Control Benchmarks		Specification Boundaries		Conductor Resistance 20℃ (Ω/KM)	Min Elongation (%)	Max. Springiness (°)	Insulation breakdown voltage (v)
Diameter of Conduct	Conductor Tolerance	Lower Limit	Upper Limit	Lower Limit	Upper Limit	Min. Increase in Diameter	Max. Finished overall Diameter	Conductor Resistance 20℃ (Ω/KM)	Min Elongation (%)	Max. Springiness (°)	Insulation breakdown voltage (v)
0.040	±0.002	0.039	0.041	0.049	0.053	0.008	0.054	15202	9		475
0.045	±0.003	0.044	0.046	0.056	0.060	0.010	0.061	12445	9		550
0.050	±0.003	0.049	0.051	0.061	0.065	0.010	0.066	9938	10		600
0.056	±0.003	0.055	0.057	0.067	0.071	0.010	0.074	7815	10		650
0.063	±0.003	0.062	0.064	0.076	0.081	0.012	0.083	6098	12		700
0.071	±0.003	0.070	0.072	0.084	0.089	0.012	0.091	4747	13		700
0.080	±0.003	0.079	0.081	0.095	0.100	0.014	0.101	3703	14	80	850
0.090	±0.003	0.089	0.091	0.106	0.111	0.015	0.113	2900	15	77	900
0.100	±0.003	0.099	0.101	0.117	0.122	0.016	0.125	2333	16	73	950
0.112	±0.003	0.111	0.114	0.130	0.136	0.017	0.139	1848	17	73	2700
0.125	±0.003	0.124	0.127	0.145	0.151	0.019	0.154	1475	17	70	2800
0.140	±0.003	0.139	0.142	0.162	0.168	0.021	0.171	1170	18	67	3000
0.160	±0.003	0.159	0.162	0.184	0.190	0.023	0.194	890.6	19	67	3200
0.180	±0.003	0.179	0.182	0.207	0.213	0.025	0.217	700.7	20	65	3300
0.200	±0.003	0.199	0.202	0.229	0.235	0.027	0.239	565.7	21	62	3500
0.224	±0.003	0.223	0.226	0.255	0.262	0.029	0.266	449.5	21	59	3700
0.250	±0.004	0.249	0.253	0.285	0.292	0.032	0.297	362.8	22	56	3900
0.280	±0.004	0.279	0.283	0.316	0.323	0.033	0.329	288.2	22	53	4000
0.315	±0.004	0.314	0.317	0.353	0.361	0.035	0.367	227.0	23	55	4100
0.355	±0.004	0.354	0.357	0.396	0.404	0.038	0.411	178.2	23	53	4300
0.400	±0.005	0.398	0.403	0.444	0.454	0.040	0.459	140.7	24	50	4400
0.450	±0.005	0.448	0.453	0.496	0.506	0.042	0.513	110.9	25	48	4400
0.500	±0.005	0.498	0.503	0.549	0.559	0.045	0.566	89.59	25	47	4600
0.560	±0.006	0.557	0.563	0.611	0.621	0.047	0.630	71.53	26	44	4600
0.630	±0.006	0.627	0.633	0.684	0.696	0.050	0.704	56.38	27	50	4800
0.710	±0.007	0.707	0.714	0.768	0.780	0.053	0.789	44.42	28	47	4800
0.800	±0.008	0.797	0.804	0.861	0.873	0.056	0.884	35.00	28	43	4900
0.900	±0.009	0.897	0.904	0.965	0.977	0.060	0.989	27.65	29	48	5000
1.000	±0.010	0.997	1.004	1.068	1.082	0.063	1.094	22.40	30	45	5000
1.120	±0.011	1.116	1.124	1.190	1.204	0.065	1.217	17.85	30	41	5000
1.250	±0.013	1.246	1.254	1.322	1.336	0.067	1.349	14.35	31	37	5000
1.400	±0.014	1.396	1.406	1.476	1.490	0.069	1.502	11.43	32	34	5000
1.600	±0.016	1.596	1.606	1.678	1.694	0.071	1.706	8.75	32	30	5000
1.800	±0.018	1.796	1.806	1.880	1.896	0.073	1.909	6.91	32		5000
2.000	±0.020	1.994	2.006	2.082	2.098	0.075	2.112	5.60	33		5000
2.240	±0.022	2.234	2.246	2.324	2.342	0.077	2.355	4.46	33		5000
2.500	±0.025	2.494	2.506	2.586	2.604	0.079	2.618	3.58	33		5000
2.800	±0.028	2.794	2.808	2.890	2.908	0.081	2.922	2.86	34		2500
3.150	±0.032	3.144	3.158	3.243	3.263	0.084	3.276	2.26	34		2500

Polyamide Imide Enamelled High Temp Magnet Wire AIW Grade Two For Motors AWG 38-12 2

Polyamide Imide Enamelled High Temp Magnet Wire AIW Grade Two For Motors AWG 38-12 3
