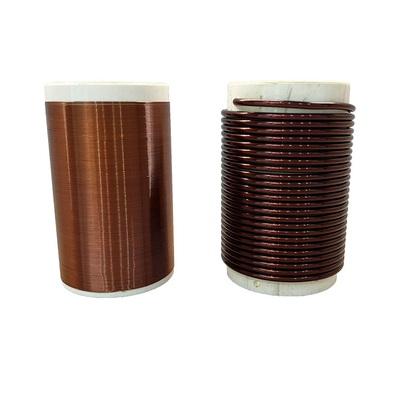

0.10mm - 3.20mm Polyamide Imide Enamelled Copper Wire Thermal Class 220 AWG 38-8

MOQ: The MOQ varies according to the size of the specification
Price: Copper price plus processing fee plus freight
Standard Packaging: Box
Delivery Period: 3-5 work days
Payment Method: T/T 100% payment before shipment
Supply Capacity: Delivery 10-15 days after next order
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
PEWSC
Certification
UL
Model Number
AIW Heavy
Document
Product Brochure PDF
Product Name:
AIW Heavy
Hierarchy Type:
Heavy
Conductor Materials:
Copper
Wire Diameter:
AWG 38-8
Rated Voltage:
2800V The Voltage Resistance Varies According To The Thickness Of The Film And The Size Of The Specification
Color Options:
Could Be Customized
Thermal Grade:
220℃
Application:
For Special High Temperature Motors
Certification:
UL,ROHS
Standard:
NEMA
Highlight:

0.10mm Enamelled Copper Wire

,

3.20mm Enamelled Copper Wire

,

Class 220 Polyamide Imide Enamelled Wire

Product Description

Superior electrical conductivity: The enameled copper wire AIW is made of high-purity copper conductors, which ensures excellent electrical conductivity, stable power transmission and reduced energy consumption.



Long-lasting and durable: Its insulation is coated with a high-quality insulating varnish that resists abrasion, corrosion and environmental factors, extending product life.



Flexible and easy to install: The flexibility of the copper wire itself, combined with the fine manufacturing process, makes the enameled copper wire AIW easy to wire and install, and maintains the integrity of the insulation layer even in narrow or complex spaces.



Technical Support: We have a professional technical team to provide customers with a full range of technical support and consulting services to ensure that customers choose the right product and apply it correctly.



Global Certification: Our products have passed a number of international certifications to ensure that customers around the world receive a consistent high quality experience.



    NEMA---Heavy   Unit﹕mm
AWG Diameter of
Conduct		   Conductor Control
Benchmarks		   OD Control
Benchmarks		   Specification Boundaries   Conductor
Resistance 20℃
(Ω/KM)		 Insulation breakdownvoltage
(v)		   Min Elongation
(%)		 Max.
Springiness
(°)		   Resistance to
abrasion
Lower
Limit		 Upper
Limit		 Lower
Limit		 Median Upper
Limit		 Min. Increase
in Diameter		 Max. Finished
overall Diameter		 Average Minimum
44 0.051 +0.002 0.050 0.052 0.062 0.064 0.066 0.010 0.066 9527.95 1300 14 -- -- --
-0.003
43 0.056 +0.002 0.055 0.057 0.068 0.070 0.072 0.010 0.074 7815.03 1400 15 -- -- --
-0.003
42 0.064 +0.002 0.063 0.065 0.079 0.081 0.083 0.013 0.084 5899.6 1675 16 -- -- --
-0.003
41 0.071 +0.003 0.070 0.072 0.086 0.088 0.090 0.013 0.094 4610.88 1675 17 -- -- --
-0.002
40 0.079 +0.002 0.078 0.080 0.094 0.096 0.098 0.013 0.104 3800.62 1800 17 -- -- --
-0.003
39 0.089 +0.002 0.088 0.090 0.106 0.109 0.112 0.015 0.114 2968.15 1975 18 -- -- --
-0.003
38 0.102 +0.002 0.101 0.103 0.122 0.125 0.128 0.018 0.130 2239.81 2150 19 -- -- --
-0.003
37 0.114 +0.003 0.113 0.115 0.134 0.137 0.140 0.018 0.145 1750.03 2325 20 -- -- --
-0.002
36 0.127 +0.003 0.126 0.128 0.149 0.152 0.155 0.020 0.160 1427.71 2525 20 -- -- --
-0.003
35 0.142 +0.003 0.141 0.143 0.167 0.170 0.173 0.023 0.178 1120.02 2750 21 -- -- --
-0.002
34 0.16 +0.003 0.159 0.161 0.185 0.188 0.191 0.023 0.198 890.6 2975 22 -- -- --
-0.003
33 0.18 +0.003 0.179 0.181 0.207 0.211 0.215 0.025 0.221 692.85 3250 23 -- -- --
-0.002
32 0.203 +0.003 0.202 0.205 0.233 0.237 0.241 0.028 0.246 543.36 3525 24 -- -- --
-0.002
31 0.226 +0.003 0.225 0.228 0.258 0.262 0.266 0.030 0.274 437.51 3825 24 -- -- --
-0.002
30 0.254 +0.002 0.252 0.256 0.289 0.293 0.297 0.033 0.307 348.45 4150 25 66 525 450
-0.003
29 0.287 +0.003 0.285 0.289 0.328 0.332 0.336 0.038 0.338 272.17 4250 26 61 560 480
-0.003
28 0.32 +0.003 0.318 0.322 0.364 0.368 0.372 0.041 0.373 217.08 4375 26 55 595 510
-0.002
27 0.361 +0.002 0.358 0.363 0.404 0.409 0.414 0.041 0.419 171.28 4500 27 50 635 540
-0.003
26 0.404 +0.002 0.401 0.406 0.449 0.454 0.459 0.043 0.462 137.89 4600 27 76 675 575
-0.005
25 0.455 +0.002 0.452 0.457 0.503 0.508 0.513 0.046 0.516 108.41 4725 28 72 720 615
-0.005
24 0.511 +0.002 0.507 0.513 0.561 0.566 0.571 0.048 0.577 86.08 4850 28 67 770 655
-0.006
23 0.574 +0.003 0.570 0.576 0.627 0.632 0.637 0.051 0.643 67.80 5000 29 62 820 700
-0.005
22 0.643 +0.002 0.639 0.645 0.698 0.703 0.708 0.053 0.714 54.44 5125 29 58 880 750
-0.008
21 0.724 +0.002 0.720 0.726 0.782 0.788 0.794 0.056 0.800 42.82 5250 30 53 940 800
-0.008
20 0.813 +0.005 0.808 0.816 0.877 0.883 0.889 0.061 0.892 33.88 5400 30 66 1000 850
-0.008
19 0.912 +0.005 0.907 0.915 0.979 0.985 0.991 0.064 0.993 26.98 5550 31 62 1070 910
-0.010
18 1.024 +0.005 1.019 1.027 1.093 1.099 1.105 0.066 1.110 21.39 5700 32 58 1150 980
-0.011
17 1.151 +0.005 1.145 1.154 1.225 1.231 1.237 0.071 1.240 16.95 5850 32 54 1230 1045
-0.013
16 1.29 +0.008 1.284 1.293 1.368 1.374 1.380 0.074 1.384 13.44 6000 33 50 1310 1115
-0.012
15 1.450 +0.008 1.444 1.453 1.530 1.536 1.542 0.076 1.549 10.66 6175 33 46 1400 1190
-0.015
14 1.628 +0.008 1.621 1.631 1.713 1.720 1.727 0.081 1.732 8.44 6325 33 42 1490 1270
-0.015
13 1.829 +0.010 1.822 1.832 1.915 1.922 1.929 0.081 1.935 6.69 5600 34 -- 1490 1270
-0.018
12 2.052 +0.010 2.044 2.056 2.138 2.146 2.154 0.081 2.162 5.32 5800 34 -- 1490 1270
-0.02
11 2.304 +0.012 2.296 2.308 2.393 2.402 2.411 0.084 2.418 4.22 6000 35 -- 1490 1270
-0.023
10 2.588 +0.013 2.580 2.592 2.682 2.690 2.698 0.086 2.703 3.34 6200 35 -- 1940 1270
-0.025
9 2.906 +0.015 2.896 2.910 3.000 3.009 3.018 0.086 3.023 2.65 3200 36 -- -- --
-0.028
8 3.264 +0.018 3.254 3.268 3.361 3.370 3.378 0.089 3.383 2.1 3300 36 -- -- --
-0.033
The above single wear resistance values apply to MW-5C 35C 81C 30C 75C 79C 80C 76C 28C 24C. The voltage resistance applies to MW-5C 35C 81C 30C 75C 79C 26C 77C.
