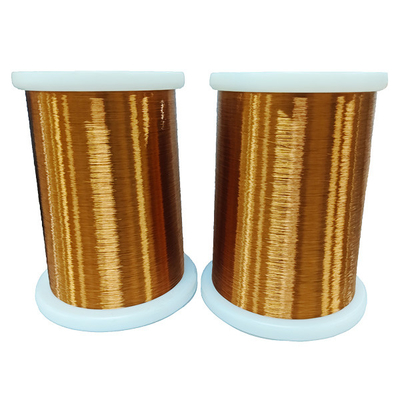

Modified Polyester Copper Wire Thermal Class 155 PEWF SWG 38-8 For High Temperature Motor

MOQ: The MOQ Varies According to the Size of the Specification
Price: Copper Price plus Processing Fee plus Freight
Standard Packaging: Box
Delivery Period: 3-5 Work Days
Payment Method: T/T 100% Payment before Shipment
Supply Capacity: Delivery 10-15 Days after Next Order
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
PEWSC
Certification
UL,ROHS
Model Number
PEWF SWG 38-8
Document
Product Brochure PDF
Product Type:
PEWF Class One
Conductor Material:
Copper
Size Range:
SWG 38-8
Application:
For High Temperature Motor
Color:
Red、Blue、Green、Yellow、Black、Natural
Shape:
Round
Temperature Grade:
155℃
Highlight:

Modified Polyester Copper Wire

,

polyester enamelled round copper wire

,

Thermal Class 155 Polyester Copper Wire

Product Description

PEWF is an enameled wire product that utilizes Modified Polyester as the insulating material and is coated with Polyurethane. It has the following characteristics.



1.Excellent heat resistance. PEWF is heat resistant up to 155°C



2.excellent abrasion resistance. the PEWF outer polyurethane coating has high hardness and abrasion resistance, which can better resist various mechanical stresses and abrasion during the manufacturing process of motor stator windings.



3.Excellent flexibility: PEWF's polyurethane outer layer has been specially pliable to maintain good abrasion resistance and at the same time has a high degree of flexibility. This facilitates molding and winding of the wire.



With its high-quality copper conductor and high-performance polyesterimide enamel coating, the enameled wire PEWF U1 offers a reliable and efficient solution for a wide range of electrical applications. Its resistance to high temperatures, abrasion and corrosion makes it an ideal choice for many industries. Choose PEWF U1 enameled wire for more consistent performance and longer service life of your electrical system.

Modified Polyester Copper Wire Thermal Class 155 PEWF SWG 38-8 For High Temperature Motor 0Modified Polyester Copper Wire Thermal Class 155 PEWF SWG 38-8 For High Temperature Motor 1

JIS---1種 Unit﹕mm

Diameter of Conduct		 Conductor Control
Benchmarks		   OD Control Benchmarks   Specification Boundaries   Conductor
Resistance 20℃
(Ω/KM)		 Insulation breakdown voltage
(v)		   Min Elongation
(%)		   Max.
Springiness
(°)		 Resistance to abrasion
Lower
Limit		 Upper
Limit		 Lower
Limit		 Median Upper
Limit		 Min. Increase in Diameter
(mm)		 Max. Finished overall Diameter
(mm)		 JIS AWG Average Minimum
0.050±0.003 0.049 0.051 0.069 0.074 0.079 0.016 0.083 10240 1900 10 14 -- -- --
0.060±0.003 0.059 0.061 0.079 0.084 0.089 0.016 0.096 6966 1900 10 15 -- -- --
0.070±0.003 0.069 0.071 0.089 0.094 0.099 0.016 0.106 4990 1900 10 17 -- -- --
0.080±0.003 0.079 0.081 0.103 0.108 0.113 0.018 0.118 3778 2000 10 17 -- -- --
0.090±0.003 0.089 0.091 0.113 0.118 0.123 0.018 0.128 2959 2000 10 18 -- -- --
0.10±0.008 0.099 0.101 0.120 0.124 0.128 0.018 0.140 2647 2000 15 19 -- -- --
0.11±0.008 0.109 0.111 0.130 0.134 0.138 0.018 0.150 2153 2000 15 19 -- -- --
0.12±0.008 0.119 0.121 0.142 0.146 0.150 0.020 0.162 1786 2200 15 20 -- -- --
0.13±0.008 0.129 0.131 0.152 0.156 0.160 0.020 0.172 1505 2200 15 20 -- -- --
0.14±0.008 0.139 0.141 0.162 0.166 0.170 0.020 0.182 1286 2200 15 21 -- -- --
0.15±0.008 0.149 0.151 0.172 0.176 0.180 0.020 0.192 1111 2200 15 21 -- -- --
0.16±0.008 0.159 0.161 0.184 0.188 0.192 0.022 0.204 969.5 2200 15 22 -- -- --
0.17±0.008 0.169 0.171 0.194 0.198 0.202 0.022 0.214 853.5 2200 15 23 -- -- --
0.18±0.008 0.179 0.181 0.206 0.210 0.214 0.024 0.226 757.2 2400 15 23 -- -- --
0.19±0.008 0.189 0.191 0.216 0.220 0.224 0.024 0.236 676.2 2400 15 23 -- -- --
0.20±0.008 0.198 0.201 0.226 0.230 0.234 0.024 0.246 607.6 2400 15 24 -- -- --
0.21±0.008 0.208 0.212 0.236 0.240 0.244 0.024 0.256 549.0 2400 15 24 -- -- --
0.22±0.008 0.218 0.222 0.246 0.250 0.254 0.024 0.266 498.4 2400 15 24 -- -- --
0.23±0.008 0.228 0.232 0.258 0.262 0.266 0.026 0.278 454.5 2400 15 24 -- -- --
0.24±0.008 0.238 0.242 0.268 0.272 0.276 0.026 0.288 416.2 2400 15 24 -- -- --
0.25±0.008 0.248 0.252 0.278 0.282 0.286 0.026 0.298 382.5 2400 15 25 66 -- --
0.26±0.010 0.258 0.262 0.288 0.292 0.296 0.026 0.310 358.4 2400 15 25 66 357 306
0.27±0.010 0.268 0.272 0.298 0.302 0.306 0.026 0.320 331.4 2400 15 26 61 357 306
0.28±0.010 0.278 0.282 0.308 0.312 0.316 0.026 0.330 307.3 2400 15 26 61 367 306
0.29±0.010 0.288 0.292 0.318 0.322 0.326 0.026 0.340 285.7 2400 20 26 61 367 316
0.30±0.010 0.298 0.302 0.330 0.335 0.340 0.028 0.352 262.9 2800 20 26 61 398 337
0.32±0.010 0.317 0.322 0.350 0.355 0.360 0.028 0.372 230.0 2800 20 26 55 398 337
0.35±0.010 0.347 0.352 0.380 0.385 0.390 0.028 0.402 191.2 2800 20 27 50 408 347
0.37±0.010 0.367 0.372 0.400 0.405 0.410 0.028 0.424 170.6 2800 20 27 50 408 347
0.40±0.010 0.397 0.402 0.432 0.438 0.444 0.030 0.456 145.3 2800 20 27 76 449 377
0.45±0.010 0.446 0.452 0.484 0.490 0.496 0.032 0.508 114.2 2800 20 28 72 479 408
0.50±0.010 0.496 0.502 0.536 0.542 0.548 0.034 0.560 91.43 3050 20 28 67 520 449
0.55±0.020 0.546 0.552 0.586 0.593 0.600 0.034 0.620 78.15 3050 20 29 62 520 449
0.60±0.020 0.596 0.602 0.636 0.643 0.650 0.034 0.672 65.26 3050 20 29 62 530 459
0.65±0.020 0.646 0.653 0.689 0.697 0.705 0.036 0.724 55.31 3050 20 29 58 571 490
0.70±0.020 0.696 0.703 0.741 0.749 0.757 0.038 0.776 47.47 3050 20 30 53 612 520
0.75±0.020 0.746 0.753 0.793 0.801 0.809 0.040 0.830 41.19 3400 25 30 53 653 551
0.80±0.020 0.795 0.803 0.845 0.853 0.861 0.042 0.882 36.08 3400 25 30 66 683 581
0.85±0.020 0.845 0.853 0.897 0.905 0.913 0.044 0.934 31.87 3400 25 30 66 724 612
0.90±0.020 0.895 0.903 0.949 0.957 0.965 0.046 0.986 28.35 3400 25 31 62 765 653
0.95±0.020 0.945 0.953 1.001 1.009 1.017 0.048 1.038 25.38 3400 25 31 62 806 683
1.00±0.030 0.995 1.003 1.053 1.062 1.071 0.050 1.102 23.33 3400 25 32 58 847 714
1.10±0.030 1.094 1.103 1.157 1.166 1.175 0.052 1.204 19.17 4150 25 32 54 887 755
1.20±0.030 1.194 1.203 1.257 1.266 1.275 0.052 1.304 16.04 4150 25 32 54 897 755
1.30±0.030 1.294 1.303 1.359 1.368 1.377 0.054 1.408 13.61 4150 25 33 50 938 796
1.40±0.030 1.394 1.403 1.459 1.468 1.477 0.054 1.508 11.7 4150 25 33 46 949 806
1.50±0.030 1.494 1.503 1.561 1.571 1.581 0.056 1.612 10.16 4150 25 33 46 1000 836
1.60±0.030 1.593 1.603 1.661 1.671 1.681 0.056 1.712 8.906 4150 25 33 42 1000 847
1.70±0.030 1.693 1.703 1.763 1.773 1.783 0.058 1.814 7.871 4350 25 33 -- 1020 887
1.80±0.030 1.793 1.803 1.863 1.873 1.883 0.058 1.914 7.007 4350 25 34 -- 1020 887
1.90±0.030 1.893 1.903 1.965 1.975 1.985 0.060 2.018 6.278 4350 25 34 -- 1120 928
2.00±0.030 1.993 2.003 2.065 2.076 2.087 0.060 2.118 5.656 4350 30 34 -- 1120 938
2.10±0.030 2.092 2.104 2.167 2.178 2.189 0.062 2.220 5.123 4350 30 34 -- 1120 969
2.20±0.030 2.192 2.204 2.269 2.280 2.291 0.064 2.322 4.662 4350 30 35 -- 1220 1000
2.30±0.030 2.292 2.304 2.369 2.380 2.391 0.064 2.422 4.260 4350 30 35 -- 1220 1010
2.40±0.030 2.392 2.404 2.471 2.482 2.493 0.066 2.526 3.908 4350 30 35 -- 1220 1020
2.50±0.030 2.492 2.504 2.573 2.585 2.597 0.068 2.628 3.598 4350 30 35 -- 1330 1120
2.60±0.030 2.590 2.604 2.673 2.685 2.697 0.068 2.728 3.324 4350 30 35 -- 1330 1120
2.70±0.030 2.69 2.704 2.773 2.785 2.797 0.068 2.828 3.079 4350 30 35 -- -- --
2.80±0.030 2.79 2.804 2.873 2.885 2.897 0.068 2.928 2.861 4350 30 36 -- -- --
2.90±0.030 2.89 2.904 2.973 2.985 2.997 0.068 3.028 2.665 4350 30 36 -- -- --
3.00±0.030 2.990 3.004 3.073 3.085 3.097 0.068 3.128 2.489 4350 30 36 -- -- --
3.20±0.040 3.19 3.204 3.273 3.285 3.297 0.068 3.338 2.198 4350 30 36 -- -- --
