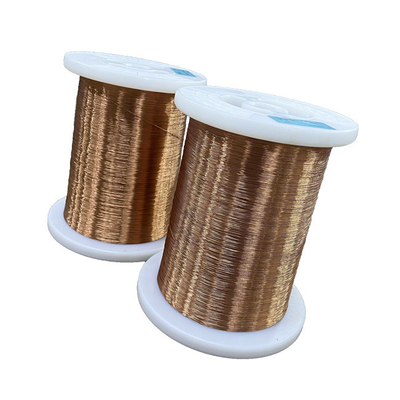

AWG 46-10 UEWN Grade One Overcoat Polyamide Enamelled Wire For General Motor Thermal Class 130

MOQ: 300Kg-500Kg
Price: Copper Price plus Processing Fee plus Freight
Standard Packaging: Box
Delivery Period: 3-5 work days
Payment Method: T/T 100% payment before shipment
Supply Capacity: Three to five days after the order is placed
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
PEWSC
Certification
UL,ROHS
Model Number
UEWN Grade one
Document
Product Brochure PDF
Conductor Material:
Copper
Type:
Grade One
Insulation Material:
Copper
Application:
For High Speed Coiling Processing,general Motor
Conductor Type:
Grade One
Color:
Could Be Customized
Diameter:
AWG 46-10
Certification:
UL,ROHS
Shape:
Round
Sample:
Free
Highlight:

General Motor Polyamide Enamelled Wire

,

AWG 46-10 Polyamide Enamelled Wire

Product Description

 The characteristics of UEWN enameled wire are mainly reflected in the following aspects:



Insulation properties: The insulation layer of UEWN enameled wire is composed of polyurethane resin, which has good electrical insulation properties and heat resistance, which can ensure stable electrical performance in high temperature environments.



Mechanical strength: The enameled wire has a certain mechanical strength, which can withstand certain tensile and bending stresses during the production process, and is not easy to break or deform.



Chemical Resistance: Due to its special insulating material, UEWN enameled wire has strong corrosion resistance to a wide range of chemicals and is suitable for a variety of harsh environments.



Low dielectric loss at high frequencies: These enamelled wires operate at high frequencies with low dielectric losses, helping to improve the overall performance of electronic devices.



Dyeing performance: UEWN enameled wire is easy to dye, and can be made into different colors of coils as needed to meet specific design

requirements.



Salt water pinhole: This enameled wire has no salt water pinhole, which means that there are no salt due insulation defects during the manufacturing process, further improving the stability and reliability of the product.



In general, UEWN enameled wire has been widely used in motors, electrical appliances, electronic components and other fields due to its excellent insulation properties, mechanical strength, chemical corrosion resistance and low dielectric loss at high frequencies. At the same time, its easy dyeing and saltwater-free pinhole properties further enhance the product's suitability and reliability.

AWG 46-10 UEWN Grade One Overcoat Polyamide Enamelled Wire For General Motor Thermal Class 130 0AWG 46-10 UEWN Grade One Overcoat Polyamide Enamelled Wire For General Motor Thermal Class 130 1

GB ---Grade1 Unit﹕mm
Diameter of
Conduct		 Conductor
Tolerance		 Conductor Control
Benchmarks		 OD Control
Benchmarks		 Specification Boundaries Conductor
Resistance 20℃
(Ω/KM)		 Min Elongation
(%)		 Max.
Springiness
(°)		 Insulation breakdown voltage
(v)
Lower
Limit		 Upper
Limit		 Lower
Limit		 Upper
Limit		 Min. Increase
in Diameter		 Max. Finished
overall Diameter
0.040 ±0.002 0.039 0.041 0.045 0.049 0.004 0.049 15202 9   250
0.045 ±0.003 0.044 0.046 0.051 0.055 0.005 0.055 12445 9   275
0.050 ±0.003 0.049 0.051 0.056 0.060 0.005 0.060 9938 10   300
0.056 ±0.003 0.055 0.057 0.063 0.067 0.006 0.067 7815 10   325
0.063 ±0.003 0.062 0.064 0.071 0.076 0.007 0.076 6098 12   375
0.071 ±0.003 0.070 0.072 0.079 0.084 0.007 0.084 4747 13   425
0.080 ±0.003 0.079 0.081 0.088 0.094 0.007 0.094 3703 14 70 425
0.090 ±0.003 0.089 0.091 0.099 0.105 0.008 0.105 2900 15 67 500
0.100 ±0.003 0.099 0.101 0.109 0.116 0.008 0.117 2333 16 64 500
0.112 ±0.003 0.111 0.114 0.122 0.129 0.009 0.130 1848 17 64 1300
0.125 ±0.003 0.124 0.127 0.136 0.143 0.010 0.144 1475 17 62 1500
0.140 ±0.003 0.139 0.142 0.152 0.159 0.011 0.160 1170 18 59 1600
0.160 ±0.003 0.159 0.162 0.173 0.180 0.012 0.182 890.6 19 59 1700
0.180 ±0.003 0.179 0.182 0.195 0.202 0.013 0.204 700.7 20 57 1700
0.200 ±0.003 0.199 0.202 0.216 0.224 0.014 0.226 565.7 21 54 1800
0.224 ±0.003 0.223 0.226 0.241 0.249 0.015 0.252 449.5 21 51 1900
0.250 ±0.004 0.249 0.253 0.270 0.278 0.017 0.281 362.8 22 49 2100
0.280 ±0.004 0.279 0.283 0.301 0.309 0.018 0.312 288.2 22 47 2200
0.315 ±0.004 0.314 0.317 0.337 0.346 0.019 0.349 227.0 23 50 2200
0.355 ±0.004 0.354 0.357 0.378 0.387 0.020 0.392 178.2 23 48 2300
0.400 ±0.005 0.398 0.403 0.425 0.435 0.021 0.439 140.7 24 45 2300
0.450 ±0.005 0.448 0.453 0.476 0.486 0.022 0.491 110.9 25 44 2300
0.500 ±0.005 0.498 0.503 0.528 0.538 0.024 0.544 89.59 25 43 2400
0.560 ±0.006 0.557 0.563 0.589 0.599 0.025 0.606 71.53 26 41 2500
0.630 ±0.006 0.627 0.633 0.661 0.673 0.027 0.679 56.38 27 46 2600
0.710 ±0.007 0.707 0.714 0.743 0.755 0.028 0.672 44.42 28 44 2600
0.800 ±0.008 0.797 0.804 0.835 0.847 0.030 0.855 35.00 28 41 2600
0.900 ±0.009 0.897 0.904 0.937 0.949 0.032 0.959 27.65 29 45 2700
1.000 ±0.010 0.997 1.004 1.039 1.053 0.034 1.062 22.40 30 42 2700
1.120 ±0.011 1.116 1.124 1.159 1.193 0.034 1.184 17.85 30 39 2700
1.250 ±0.013 1.246 1.254 1.290 1.304 0.035 1.316 14.35 31 35 2700
1.400 ±0.014 1.396 1.406 1.443 1.458 0.036 1.468 11.43 32 32 2700
1.600 ±0.016 1.596 1.606 1.645 1.660 0.038 1.670 8.75 32 28 2700
