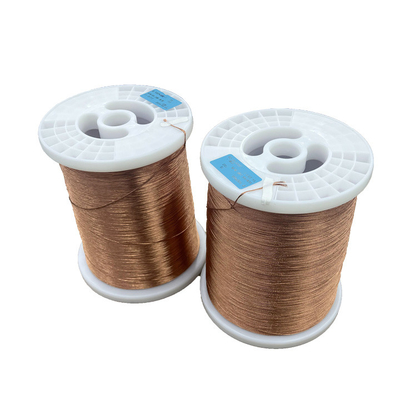

Type 1 Litz Wire Types Polyurethane Enamelled Copper Twisted Wire 0.12x20

Products

Type 1 Litz Wire Types Polyurethane Enamelled Copper Twisted Wire 0.12x20

MOQ:	The MOQ varies according to the size of the specification
Price:	Copper price plus processing fee plus freight
Standard Packaging:	Box
Delivery Period:	3-5 work days
Payment Method:	T/T 100% payment before shipment
Supply Capacity:	Delivery 10-15 days after next order

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

PEWSC

Certification

Model Number

UEFN/U 155℃ Type 1

Document

Product Name:

UEFN/U 155℃ Type 1

Conductor Material:

Copper

Appearance:

The Wire Surface Smooth & Tincture Same

Twisted Pitch:

Calculate The Twist Pitch.

Twist Direction:

In Normal Conditions Of Twisted Direction Is Clockwise.

Resistance To Cut Though:

Not Less Than 200℃ And 2 Min Single Wire

Flexibility & Adherence:

No Visible Cracks Appear On The Film Coating When Using 15 Times Magnifier. Single Wire

Solderability:

Solder Shall Adhere To The Conductor Uniformly

Samples:

Dimension:

The Size Shall Be As Given In Table Single Wire; Twisted Wirediameter Will Be Subject To The Theoretical Calculation.

Specification:

0.12x20

Pinhole:

Twisted Wire Of The Pinhole Of Twisted Line Number To Calculate

Original Country:

China

Highlight:

Type 1 litz wire types

litz wire 0.12x20

Polyurethane Enamelled Copper Twisted Wire

Product Description

Polyurethane Enamelled Copper Twisted Wire UEFN/U 155℃ Type 1 Size 0.12x20

3.Test methods

3.1 Appearance : Comply with JISC 3216.

3.2 Dimension :Comply with JISC 3216-2

3.3Pinhole : Comply with JSC 3216-5(length of sample is 6 meters).

3.4 Flexibility :Single wire comply with JSC 3216-3.3.5.Adherence: Single wire comply with JSC 3216-3.

3.6 Resistance to abrasion : Single wire comply with JSC 3216-3.

3.7 Dielectric breakdown voltage : Comply with JSC 3216-5. Next table of hook no and twisted numer twisted wire.

Type 1 Litz Wire Types Polyurethane Enamelled Copper Twisted Wire 0.12x20 0

Type 1 Litz Wire Types Polyurethane Enamelled Copper Twisted Wire 0.12x20 1

Type 1 Litz Wire Types Polyurethane Enamelled Copper Twisted Wire 0.12x20 2

JIS---3種
									Unit﹕mm
Diameter of Conduct	Conductor Control Benchmarks		OD Control Benchmarks			Specification Boundaries		Conductor Resistance 20℃ (Ω/KM)	Insulation breakdownvoltage (v)	Min Elongation (%)		Max. Springiness (°)	Resistance to abrasion
Diameter of Conduct	Lower Limit	Upper Limit	Lower Limit	Median	Upper Limit	Min. Increase in Diameter	Max. Finished overall Diameter	Conductor Resistance 20℃ (Ω/KM)	Insulation breakdownvoltage (v)	JIS	AWG	Max. Springiness (°)	Average	Minimum
0.04±0.002	0.039	0.041	0.045	0.047	0.050	0.004	0.052	15670	100	7	11	--	--	--
0.05±0.003	0.049	0.051	0.057	0.060	0.062	0.006	0.064	10240	700	10	14	--	--	--
0.06±0.003	0.059	0.061	0.067	0.070	0.072	0.006	0.075	6966	700	10	15	--	--	--
0.07±0.003	0.069	0.071	0.077	0.080	0.082	0.006	0.085	4990	700	10	17	--	--	--
0.08±0.003	0.079	0.081	0.087	0.091	0.094	0.006	0.097	3778	700	10	17	--	--	--
0.09±0.003	0.089	0.091	0.097	0.101	0.104	0.006	0.107	2959	700	10	18	--	--	--
0.10±0.003	0.099	0.101	0.107	0.110	0.114	0.006	0.118	2381	700	15	19	--	--	--
0.11±0.003	0.109	0.111	0.117	0.121	0.124	0.006	0.128	1957	700	15	19	--	--	--
0.12±0.003	0.119	0.121	0.129	0.132	0.135	0.008	0.139	1636	850	15	20	--	--	--
0.13±0.003	0.129	0.131	0.137	0.142	0.145	0.008	0.149	1389	850	15	20	--	--	--
0.14±0.003	0.139	0.141	0.149	0.152	0.155	0.008	0.159	1193	850	15	21	--	--	--
0.15±0.003	0.149	0.151	0.159	0.162	0.165	0.008	0.169	1037	850	15	21	--	--	--
0.16±0.003	0.159	0.161	0.171	0.174	0.177	0.010	0.181	908.8	850	15	22	--	--	--
0.17±0.003	0.169	0.171	0.181	0.184	0.187	0.010	0.191	803.2	850	15	23	--	--	--
0.18±0.003	0.179	0.181	0.191	0.194	0.197	0.010	0.202	715.0	1000	15	23	--	--	--
0.19±0.003	0.189	0.191	0.201	0.204	0.208	0.010	0.212	640.6	1000	15	23	--	--	--
0.20±0.003	0.198	0.201	0.211	0.214	0.218	0.010	0.222	577.2	1000	15	24	--	--	--
0.21±0.003	0.208	0.212	0.221	0.224	0.228	0.010	0.232	522.8	1000	15	24	--	--	--
0.22±0.004	0.218	0.222	0.231	0.235	0.239	0.010	0.243	480.1	1000	15	24	--	--	--
0.23±0.004	0.228	0.232	0.243	0.246	0.249	0.012	0.255	438.6	1000	15	24	--	--	--
0.24±0.004	0.238	0.242	0.253	0.256	0.259	0.012	0.265	402.2	1000	15	24	--	--	--
0.25±0.004	0.248	0.252	0.263	0.266	0.269	0.012	0.275	370.2	1000	15	25	66	--	--
0.26±0.004	0.258	0.262	0.273	0.276	0.279	0.012	0.285	341.8	1000	15	25	66	163	133
0.27±0.004	0.268	0.272	0.283	0.286	0.289	0.012	0.295	316.6	1000	15	26	61	163	133
0.28±0.004	0.278	0.282	0.293	0.296	0.299	0.012	0.305	294.4	1000	15	26	61	163	133
0.29±0.004	0.288	0.292	0.303	0.306	0.309	0.012	0.315	273.9	1000	20	26	61	163	133
0.30±0.005	0.298	0.302	0.315	0.319	0.323	0.014	0.327	254.0	1400	20	26	61	194	163
0.32±0.005	0.317	0.322	0.335	0.339	0.343	0.014	0.347	222.8	1400	20	26	55	194	163
0.35±0.005	0.347	0.352	0.365	0.369	0.373	0.014	0.377	185.7	1400	20	27	50	194	163
0.37±0.005	0.367	0.372	0.385	0.389	0.393	0.014	0.397	165.9	1400	20	27	50	194	163
0.40±0.005	0.397	0.402	0.415	0.419	0.425	0.014	0.429	141.7	1400	20	27	76	204	163
0.45±0.006	0.446	0.452	0.465	0.469	0.475	0.014	0.479	112.1	1400	20	28	72	204	173
0.50±0.006	0.496	0.502	0.517	0.522	0.527	0.016	0.531	89.95	1450	20	28	67	235	204
0.55±0.006	0.546	0.552	0.567	0.572	0.577	0.016	0.581	74.18	1450	20	29	62	245	204
0.60±0.008	0.596	0.602	0.617	0.623	0.628	0.016	0.632	62.64	1450	20	29	62	245	204
