| MOQ: | The MOQ varies according to the size of the specification |
| Price: | Copper price plus processing fee plus freight |
| Standard Packaging: | Box |
| Delivery Period: | 3-5 work days |
| Payment Method: | T/T 100% payment before shipment |
| Supply Capacity: | Delivery 10-15 days after next order |

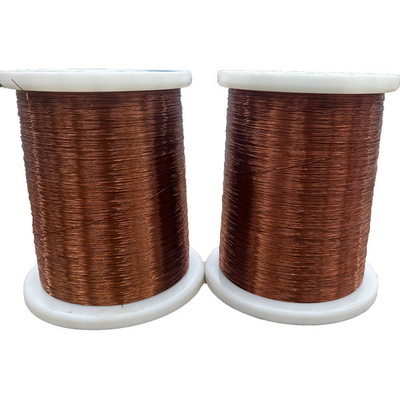

Enameled wire (SAI) is a kind of insulating material widely used in motors, transformers and electrical products with the following characteristics:
Good chemical stability: enameled wire has good resistance to most chemical substances, not easily affected by corrosion and aging. This makes it able to be used for a long time in a variety of harsh environments, extending the service life of electrical equipment.
Environmental performance: enameled wire is made of environmentally friendly materials, does not contain harmful substances, harmless to the environment and human body. In the process of use, it will not produce toxic gases and pollutants, in line with modern environmental protection requirements.
Easy to process and install: Enameled wire has good solderability and adhesion, which makes it easy to connect with other electrical components. At the same time, its smooth surface makes it easy to pass through narrow passages, which facilitates installation and use in complex electrical equipment.
Excellent mechanical properties: enameled wire has good tensile strength and abrasion resistance, and can maintain the integrity of the insulation layer in the high-speed rotation and vibration environment. In addition, it also has a certain degree of flexibility, easy to install and use in complex electrical equipment.
| JIS---3種 | ||||||||||||||
| Unit﹕mm | ||||||||||||||
| Diameter of Conduct |
Conductor Control Benchmarks |
OD Control Benchmarks |
Specification Boundaries |
Conductor Resistance 20℃ (Ω/KM) |
Insulation breakdownvoltage (v) |
Min Elongation (%) |
Max. Springiness (°) |
Resistance to abrasion |
||||||
| Lower Limit |
Upper Limit |
Lower Limit |
Median | Upper Limit |
Min. Increase in Diameter |
Max. Finished overall Diameter |
JIS | AWG | Average | Minimum | ||||
| 0.04±0.002 | 0.039 | 0.041 | 0.045 | 0.047 | 0.050 | 0.004 | 0.052 | 15670 | 100 | 7 | 11 | -- | -- | -- |
| 0.05±0.003 | 0.049 | 0.051 | 0.057 | 0.060 | 0.062 | 0.006 | 0.064 | 10240 | 700 | 10 | 14 | -- | -- | -- |
| 0.06±0.003 | 0.059 | 0.061 | 0.067 | 0.070 | 0.072 | 0.006 | 0.075 | 6966 | 700 | 10 | 15 | -- | -- | -- |
| 0.07±0.003 | 0.069 | 0.071 | 0.077 | 0.080 | 0.082 | 0.006 | 0.085 | 4990 | 700 | 10 | 17 | -- | -- | -- |
| 0.08±0.003 | 0.079 | 0.081 | 0.087 | 0.091 | 0.094 | 0.006 | 0.097 | 3778 | 700 | 10 | 17 | -- | -- | -- |
| 0.09±0.003 | 0.089 | 0.091 | 0.097 | 0.101 | 0.104 | 0.006 | 0.107 | 2959 | 700 | 10 | 18 | -- | -- | -- |
| 0.10±0.003 | 0.099 | 0.101 | 0.107 | 0.110 | 0.114 | 0.006 | 0.118 | 2381 | 700 | 15 | 19 | -- | -- | -- |
| 0.11±0.003 | 0.109 | 0.111 | 0.117 | 0.121 | 0.124 | 0.006 | 0.128 | 1957 | 700 | 15 | 19 | -- | -- | -- |
| 0.12±0.003 | 0.119 | 0.121 | 0.129 | 0.132 | 0.135 | 0.008 | 0.139 | 1636 | 850 | 15 | 20 | -- | -- | -- |
| 0.13±0.003 | 0.129 | 0.131 | 0.137 | 0.142 | 0.145 | 0.008 | 0.149 | 1389 | 850 | 15 | 20 | -- | -- | -- |
| 0.14±0.003 | 0.139 | 0.141 | 0.149 | 0.152 | 0.155 | 0.008 | 0.159 | 1193 | 850 | 15 | 21 | -- | -- | -- |
| 0.15±0.003 | 0.149 | 0.151 | 0.159 | 0.162 | 0.165 | 0.008 | 0.169 | 1037 | 850 | 15 | 21 | -- | -- | -- |
| 0.16±0.003 | 0.159 | 0.161 | 0.171 | 0.174 | 0.177 | 0.010 | 0.181 | 908.8 | 850 | 15 | 22 | -- | -- | -- |
| 0.17±0.003 | 0.169 | 0.171 | 0.181 | 0.184 | 0.187 | 0.010 | 0.191 | 803.2 | 850 | 15 | 23 | -- | -- | -- |
| 0.18±0.003 | 0.179 | 0.181 | 0.191 | 0.194 | 0.197 | 0.010 | 0.202 | 715.0 | 1000 | 15 | 23 | -- | -- | -- |
| 0.19±0.003 | 0.189 | 0.191 | 0.201 | 0.204 | 0.208 | 0.010 | 0.212 | 640.6 | 1000 | 15 | 23 | -- | -- | -- |
| 0.20±0.003 | 0.198 | 0.201 | 0.211 | 0.214 | 0.218 | 0.010 | 0.222 | 577.2 | 1000 | 15 | 24 | -- | -- | -- |
| 0.21±0.003 | 0.208 | 0.212 | 0.221 | 0.224 | 0.228 | 0.010 | 0.232 | 522.8 | 1000 | 15 | 24 | -- | -- | -- |
| 0.22±0.004 | 0.218 | 0.222 | 0.231 | 0.235 | 0.239 | 0.010 | 0.243 | 480.1 | 1000 | 15 | 24 | -- | -- | -- |
| 0.23±0.004 | 0.228 | 0.232 | 0.243 | 0.246 | 0.249 | 0.012 | 0.255 | 438.6 | 1000 | 15 | 24 | -- | -- | -- |
| 0.24±0.004 | 0.238 | 0.242 | 0.253 | 0.256 | 0.259 | 0.012 | 0.265 | 402.2 | 1000 | 15 | 24 | -- | -- | -- |
| 0.25±0.004 | 0.248 | 0.252 | 0.263 | 0.266 | 0.269 | 0.012 | 0.275 | 370.2 | 1000 | 15 | 25 | 66 | -- | -- |
| 0.26±0.004 | 0.258 | 0.262 | 0.273 | 0.276 | 0.279 | 0.012 | 0.285 | 341.8 | 1000 | 15 | 25 | 66 | 163 | 133 |
| 0.27±0.004 | 0.268 | 0.272 | 0.283 | 0.286 | 0.289 | 0.012 | 0.295 | 316.6 | 1000 | 15 | 26 | 61 | 163 | 133 |
| 0.28±0.004 | 0.278 | 0.282 | 0.293 | 0.296 | 0.299 | 0.012 | 0.305 | 294.4 | 1000 | 15 | 26 | 61 | 163 | 133 |
| 0.29±0.004 | 0.288 | 0.292 | 0.303 | 0.306 | 0.309 | 0.012 | 0.315 | 273.9 | 1000 | 20 | 26 | 61 | 163 | 133 |
| 0.30±0.005 | 0.298 | 0.302 | 0.315 | 0.319 | 0.323 | 0.014 | 0.327 | 254.0 | 1400 | 20 | 26 | 61 | 194 | 163 |
| 0.32±0.005 | 0.317 | 0.322 | 0.335 | 0.339 | 0.343 | 0.014 | 0.347 | 222.8 | 1400 | 20 | 26 | 55 | 194 | 163 |
| 0.35±0.005 | 0.347 | 0.352 | 0.365 | 0.369 | 0.373 | 0.014 | 0.377 | 185.7 | 1400 | 20 | 27 | 50 | 194 | 163 |
| 0.37±0.005 | 0.367 | 0.372 | 0.385 | 0.389 | 0.393 | 0.014 | 0.397 | 165.9 | 1400 | 20 | 27 | 50 | 194 | 163 |
| 0.40±0.005 | 0.397 | 0.402 | 0.415 | 0.419 | 0.425 | 0.014 | 0.429 | 141.7 | 1400 | 20 | 27 | 76 | 204 | 163 |
| 0.45±0.006 | 0.446 | 0.452 | 0.465 | 0.469 | 0.475 | 0.014 | 0.479 | 112.1 | 1400 | 20 | 28 | 72 | 204 | 173 |
| 0.50±0.006 | 0.496 | 0.502 | 0.517 | 0.522 | 0.527 | 0.016 | 0.531 | 89.95 | 1450 | 20 | 28 | 67 | 235 | 204 |
| 0.55±0.006 | 0.546 | 0.552 | 0.567 | 0.572 | 0.577 | 0.016 | 0.581 | 74.18 | 1450 | 20 | 29 | 62 | 245 | 204 |
| 0.60±0.008 | 0.596 | 0.602 | 0.617 | 0.623 | 0.628 | 0.016 | 0.632 | 62.64 | 1450 | 20 | 29 | 62 | 245 | 204 |
