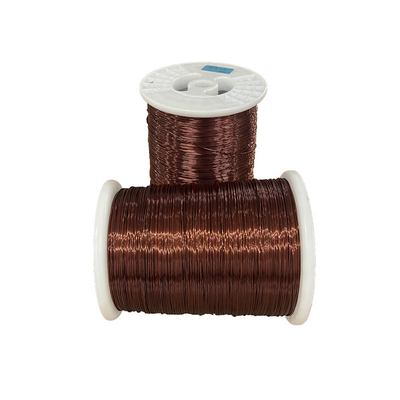

PEWH Single polyester-imide enamelled wire Thermal Class 180℃ For high temperature motor

Products

PEWH Single polyester-imide enamelled wire Thermal Class 180℃ For high temperature motor

MOQ:	The MOQ varies according to the size of the specification
Price:	Copper price plus processing fee plus freight
Standard Packaging:	Box
Delivery Period:	3-5 work days
Payment Method:	T/T 100% payment before shipment
Supply Capacity:	Delivery 10-15 days after next order

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

PEWSC

Certification

UL,ROHS

Model Number

PEWH Single

Document

Product Name:

PEWH Single

Voltage Rating:

2800V The Voltage Resistance Varies According To The Thickness Of The Film And The Size Of The Specification

Standard:

Temperature Grade:

Color Option:

Could Be Customized

Specification:

AWG38-8

Hierachy Thickness:

Single

Shape:

Round

Conductor Material:

Enameled Copper

Warranty:

3 Years

Application:

For High Temperature Moter

Package:

Carton

Product Description

Single refers to a thinner wire diameter, suitable for applications with high space requirements or low current loads.

PEWH is an enameled wire product that uses Modified Polyester as the insulating material and is coated with Polyimide. Compared with the PEWF series, PEWH has the following characteristics.

Excellent heat resistance: PEWH is heat resistant up to 180°C, making it more suitable for applications such as motors and transformers in high-temperature environments.

Outstanding Mechanical Strength: The polyimide outer layer of PEWH has high mechanical strength and abrasion resistance, making it more resistant to the various stresses associated with the manufacture of motor stator windings.

Excellent electrical properties: PEWH's modified polyester insulation is available in thicknesses of up to 0.1-0.5mm, providing reliable insulation protection in high voltage environments.

Overall, PEWH is a high-end enameled wire product with excellent performance in terms of high temperature resistance, mechanical strength, insulation and chemical resistance. It is widely used in the manufacture of key components for high power motors, large transformers and other industrial applications.

PEWH Single polyester-imide enamelled wire Thermal Class 180℃ For high temperature motor 0

PEWH Single polyester-imide enamelled wire Thermal Class 180℃ For high temperature motor 1

		NEMA---Single												Unit﹕mm
AWG	Diameter of Conduct		Conductor Control Benchmarks		OD Control Benchmarks			Specification Boundaries		Conductor Resistance 20℃ (Ω/KM)	Insulation breakdownvoltage (v)	Min Elongation (%)	Max. Springiness (°)	Resistance to abrasion
			Lower Limit	Upper Limit	Lower Limit	Median	Upper Limit	Min. Increase in Diameter	Max. Finished overall Diameter					Average	Minimum
44	0.051	+0.002	0.050	0.052	0.056	0.059	0.060	0.005	0.061	9527.95	500	14	--	--	--
		-0.003
43	0.056	+0.002	0.055	0.057	0.063	-------	0.066	0.005	0.069	7815.03	550	15	--	--	--
		-0.003
42	0.064	+0.002	0.063	0.065	0.071	0.073	0.075	0.005	0.076	5899.60	625	16	--	--	--
		-0.003
41	0.071	+0.003	0.070	0.072	0.079	0.081	0.083	0.008	0.084	4610.88	700	17	--	--	--
		-0.002
40	0.079	+0.002	0.078	0.080	0.087	0.090	0.093	0.008	0.094	3800.62	775	17	--	--	--
		-0.003
39	0.089	+0.002	0.088	0.090	0.099	0.102	0.105	0.008	0.107	2968.15	850	18	--	--	--
		-0.003
38	0.102	+0.002	0.101	0.103	0.111	0.114	0.117	0.008	0.118	2239.81	950	19	--	--	--
		-0.003
37	0.114	+0.003	0.113	0.115	0.125	0.128	0.131	0.010	0.132	1750.03	1075	20	--	--	--
		-0.002
36	0.127	+0.003	0.126	0.128	0.139	0.142	0.145	0.010	0.147	1427.71	1200	20	--	--	--
		-0.003
35	0.142	+0.003	0.141	0.143	0.154	0.157	0.160	0.010	0.165	1120.02	1325	21	--	--	--
		-0.002
34	0.16	+0.003	0.159	0.161	0.175	0.178	0.181	0.013	0.183	890.60	1500	22	--	--	--
		-0.003
33	0.18	+0.003	0.179	0.181	0.195	0.199	0.203	0.013	0.206	692.85	1675	23	--	--	--
		-0.002
32	0.203	+0.003	0.202	0.205	0.220	0.224	0.228	0.015	0.229	543.36	1850	24	--	--	--
		-0.002
31	0.226	+0.003	0.225	0.228	0.243	0.247	0.251	0.015	0.254	437.51	2075	24	--	--	--
		-0.002
30	0.254	+0.002	0.252	0.256	0.274	0.278	0.282	0.018	0.284	348.45	2300	25	66	295	250
		-0.003
29	0.287	+0.003	0.285	0.289	0.308	0.312	0.316	0.018	0.320	272.17	2375	26	61	310	265
		-0.003
28	0.32	+0.003	0.318	0.322	0.343	0.347	0.351	0.020	0.356	217.08	2425	26	55	335	285
		-0.002
27	0.361	+0.002	0.358	0.363	0.383	0.387	0.391	0.020	0.396	171.28	2500	27	50	355	300
		-0.003
26	0.404	+0.002	0.401	0.406	0.429	0.433	0.437	0.023	0.439	137.89	2550	27	76	380	325
		-0.005
25	0.455	+0.002	0.452	0.457	0.480	0.485	0.490	0.023	0.493	108.41	2625	28	72	400	340
		-0.005
24	0.511	+0.002	0.507	0.513	0.538	0.543	0.548	0.025	0.551	86.08	2700	28	67	430	365
		-0.006
23	0.574	+0.003	0.570	0.576	0.601	0.606	0.611	0.025	0.617	67.8	2775	29	62	460	390
		-0.005
22	0.643	+0.002	0.639	0.645	0.673	0.678	0.683	0.028	0.686	54.44	2850	29	58	490	415
		-0.008
21	0.724	+0.002	0.720	0.726	0.754	0.760	0.766	0.028	0.770	42.82	2925	30	53	525	445
		-0.008
20	0.813	+0.005	0.808	0.816	0.846	0.852	0.858	0.030	0.864	33.88	3000	30	66	560	475
		-0.008
19	0.912	+0.005	0.907	0.915	0.945	0.951	0.957	0.030	0.963	26.98	3075	31	62	600	510
		-0.01
18	1.024	+0.005	1.019	1.027	1.060	1.066	1.072	0.033	1.077	21.39	3175	32	58	645	550
		-0.011
17	1.151	+0.005	1.145	1.154	1.190	1.196	1.202	0.036	1.207	16.95	3250	32	54	690	585
		-0.013
16	1.29	+0.008	1.284	1.293	1.330	1.336	1.342	0.036	1.349	13.44	3325	33	50	735	625
		-0.012
15	1.45	+0.008	1.444	1.453	1.492	1.498	1.505	0.038	1.509	10.66	3425	33	46	780	665
		-0.015
14	1.628	+0.008	1.621	1.631	1.673	1.680	1.687	0.041	1.692	8.44	3525	33	42	840	715
		-0.015
The above single wear resistance value is applicable to MW-5C 35C 30C 81C 80C 24C 28C 76C , voltage resistance is applicable to MW-5C 35C 30C 81C 79C 75C 77C 26C .
