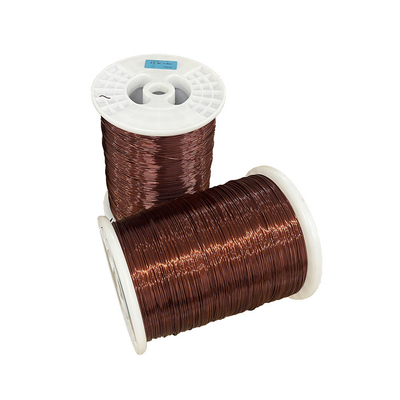

PEWH U1 polyester-imide enamelled wire Thermal Class 180℃ For high temperature motor

Products

PEWH U1 polyester-imide enamelled wire Thermal Class 180℃ For high temperature motor

MOQ:	The MOQ varies according to the size of the specification
Price:	Copper price plus processing fee plus freight
Standard Packaging:	Box
Delivery Period:	3-5 work days
Payment Method:	T/T 100% payment before shipment
Supply Capacity:	Delivery 10-15 days after next order

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

PEWSC

Certification

UL,ROHS

Model Number

PEWH U1

Document

Product Type:

PEWH U1

Voltage Rating:

2800V The Voltage Resistance Varies According To The Thickness Of The Film And The Size Of The Specification

Standard:

Thermal Class:

Color:

Natural、Red、Green、Blue、Yellow

Conductor Diameter:

0.10mm-3.20mm

Insulation Thickness:

Class

Conductor Type:

Round

Conductor Material:

Enameled Copper

Warranty:

3 Years

Product Description

PEWH is an enameled wire product that utilizes Modified Polyester as the insulating material and is coated with Polyimide. Compared with the PEWF series, PEWH has the following characteristics.

Excellent heat resistance: PEWH is heat resistant up to 180°C, making it more suitable for applications such as motors and transformers in high-temperature environments.

Outstanding Mechanical Strength: The polyimide outer layer of PEWH has high mechanical strength and abrasion resistance, making it more resistant to the various stresses involved in the manufacture of motor stator windings.

Excellent electrical properties: PEWH's modified polyester insulation is available in thicknesses of up to 0.1-0.5mm, providing reliable insulation protection in high voltage environments.

PEWH U1 polyester-imide enamelled wire Thermal Class 180℃ For high temperature motor 0

JIS---1種																	Unit﹕mm
Diameter of Conduct	Conductor Control Benchmarks			OD Control Benchmarks				Specification Boundaries			Conductor Resistance 20℃ (Ω/KM)	Insulation breakdown voltage (v)		Min Elongation (%)		Max. Springiness (°)	Resistance to abrasion
Diameter of Conduct	Lower Limit	Upper Limit		Lower Limit	Median	Upper Limit		Min. Increase in Diameter (mm)	Max. Finished overall Diameter (mm)		Conductor Resistance 20℃ (Ω/KM)	Insulation breakdown voltage (v)		JIS	AWG	Max. Springiness (°)	Average	Minimum
0.050±0.003	0.049	0.051		0.069	0.074	0.079		0.016	0.083		10240	1900		10	14	--	--	--
0.060±0.003	0.059	0.061		0.079	0.084	0.089		0.016	0.096		6966	1900		10	15	--	--	--
0.070±0.003	0.069	0.071		0.089	0.094	0.099		0.016	0.106		4990	1900		10	17	--	--	--
0.080±0.003	0.079	0.081		0.103	0.108	0.113		0.018	0.118		3778	2000		10	17	--	--	--
0.090±0.003	0.089	0.091		0.113	0.118	0.123		0.018	0.128		2959	2000		10	18	--	--	--
0.10±0.008	0.099	0.101		0.120	0.124	0.128		0.018	0.140		2647	2000		15	19	--	--	--
0.11±0.008	0.109	0.111		0.130	0.134	0.138		0.018	0.150		2153	2000		15	19	--	--	--
0.12±0.008	0.119	0.121		0.142	0.146	0.150		0.020	0.162		1786	2200		15	20	--	--	--
0.13±0.008	0.129	0.131		0.152	0.156	0.160		0.020	0.172		1505	2200		15	20	--	--	--
0.14±0.008	0.139	0.141		0.162	0.166	0.170		0.020	0.182		1286	2200		15	21	--	--	--
0.15±0.008	0.149	0.151		0.172	0.176	0.180		0.020	0.192		1111	2200		15	21	--	--	--
0.16±0.008	0.159	0.161		0.184	0.188	0.192		0.022	0.204		969.5	2200		15	22	--	--	--
0.17±0.008	0.169	0.171		0.194	0.198	0.202		0.022	0.214		853.5	2200		15	23	--	--	--
0.18±0.008	0.179	0.181		0.206	0.210	0.214		0.024	0.226		757.2	2400		15	23	--	--	--
0.19±0.008	0.189	0.191		0.216	0.220	0.224		0.024	0.236		676.2	2400		15	23	--	--	--
0.20±0.008	0.198	0.201		0.226	0.230	0.234		0.024	0.246		607.6	2400		15	24	--	--	--
0.21±0.008	0.208	0.212		0.236	0.240	0.244		0.024	0.256		549.0	2400		15	24	--	--	--
0.22±0.008	0.218	0.222		0.246	0.250	0.254		0.024	0.266		498.4	2400		15	24	--	--	--
0.23±0.008	0.228	0.232		0.258	0.262	0.266		0.026	0.278		454.5	2400		15	24	--	--	--
0.24±0.008	0.238	0.242		0.268	0.272	0.276		0.026	0.288		416.2	2400		15	24	--	--	--
0.25±0.008	0.248	0.252		0.278	0.282	0.286		0.026	0.298		382.5	2400		15	25	66	--	--
0.26±0.010	0.258	0.262		0.288	0.292	0.296		0.026	0.310		358.4	2400		15	25	66	357	306
0.27±0.010	0.268	0.272		0.298	0.302	0.306		0.026	0.320		331.4	2400		15	26	61	357	306
0.28±0.010	0.278	0.282		0.308	0.312	0.316		0.026	0.330		307.3	2400		15	26	61	367	306
0.29±0.010	0.288	0.292		0.318	0.322	0.326		0.026	0.340		285.7	2400		20	26	61	367	316
0.30±0.010	0.298	0.302		0.330	0.335	0.340		0.028	0.352		262.9	2800		20	26	61	398	337
0.32±0.010	0.317	0.322		0.350	0.355	0.360		0.028	0.372		230.0	2800		20	26	55	398	337
0.35±0.010	0.347	0.352		0.380	0.385	0.390		0.028	0.402		191.2	2800		20	27	50	408	347
0.37±0.010	0.367	0.372		0.400	0.405	0.410		0.028	0.424		170.6	2800		20	27	50	408	347
0.40±0.010	0.397	0.402		0.432	0.438	0.444		0.030	0.456		145.3	2800		20	27	76	449	377
0.45±0.010	0.446	0.452		0.484	0.490	0.496		0.032	0.508		114.2	2800		20	28	72	479	408
0.50±0.010	0.496	0.502		0.536	0.542	0.548		0.034	0.560		91.43	3050		20	28	67	520	449
0.55±0.020	0.546	0.552		0.586	0.593	0.600		0.034	0.620		78.15	3050		20	29	62	520	449
0.60±0.020	0.596	0.602		0.636	0.643	0.650		0.034	0.672		65.26	3050		20	29	62	530	459
0.65±0.020	0.646	0.653		0.689	0.697	0.705		0.036	0.724		55.31	3050		20	29	58	571	490
0.70±0.020	0.696	0.703		0.741	0.749	0.757		0.038	0.776		47.47	3050		20	30	53	612	520
0.75±0.020	0.746	0.753		0.793	0.801	0.809		0.040	0.830		41.19	3400		25	30	53	653	551
0.80±0.020	0.795	0.803		0.845	0.853	0.861		0.042	0.882		36.08	3400		25	30	66	683	581
0.85±0.020	0.845	0.853		0.897	0.905	0.913		0.044	0.934		31.87	3400		25	30	66	724	612
0.90±0.020	0.895	0.903		0.949	0.957	0.965		0.046	0.986		28.35	3400		25	31	62	765	653
0.95±0.020	0.945	0.953		1.001	1.009	1.017		0.048	1.038		25.38	3400		25	31	62	806	683
1.00±0.030	0.995	1.003		1.053	1.062	1.071		0.050	1.102		23.33	3400		25	32	58	847	714
1.10±0.030	1.094	1.103		1.157	1.166	1.175		0.052	1.204		19.17	4150		25	32	54	887	755
1.20±0.030	1.194	1.203		1.257	1.266	1.275		0.052	1.304		16.04	4150		25	32	54	897	755
1.30±0.030	1.294	1.303		1.359	1.368	1.377		0.054	1.408		13.61	4150		25	33	50	938	796
1.40±0.030	1.394	1.403		1.459	1.468	1.477		0.054	1.508		11.7	4150		25	33	46	949	806
1.50±0.030	1.494	1.503		1.561	1.571	1.581		0.056	1.612		10.16	4150		25	33	46	1000	836
1.60±0.030	1.593	1.603		1.661	1.671	1.681		0.056	1.712		8.906	4150		25	33	42	1000	847
1.70±0.030	1.693	1.703		1.763	1.773	1.783		0.058	1.814		7.871	4350		25	33	--	1020	887
1.80±0.030	1.793	1.803		1.863	1.873	1.883		0.058	1.914		7.007	4350		25	34	--	1020	887
1.90±0.030	1.893	1.903		1.965	1.975	1.985		0.060	2.018		6.278	4350		25	34	--	1120	928
2.00±0.030	1.993	2.003		2.065	2.076	2.087		0.060	2.118		5.656	4350		30	34	--	1120	938
2.10±0.030	2.092	2.104		2.167	2.178	2.189		0.062	2.220		5.123	4350		30	34	--	1120	969
2.20±0.030	2.192	2.204		2.269	2.280	2.291		0.064	2.322		4.662	4350		30	35	--	1220	1000
2.30±0.030	2.292	2.304		2.369	2.380	2.391		0.064	2.422		4.260	4350		30	35	--	1220	1010
2.40±0.030	2.392	2.404		2.471	2.482	2.493		0.066	2.526		3.908	4350		30	35	--	1220	1020
2.50±0.030	2.492	2.504		2.573	2.585	2.597		0.068	2.628		3.598	4350		30	35	--	1330	1120
2.60±0.030	2.590	2.604		2.673	2.685	2.697		0.068	2.728		3.324	4350		30	35	--	1330	1120
2.70±0.030	2.69	2.704		2.773	2.785	2.797		0.068	2.828		3.079	4350		30	35	--	--	--
2.80±0.030	2.79	2.804		2.873	2.885	2.897		0.068	2.928		2.861	4350		30	36	--	--	--
2.90±0.030	2.89	2.904		2.973	2.985	2.997		0.068	3.028		2.665	4350		30	36	--	--	--
3.00±0.030	2.990	3.004		3.073	3.085	3.097		0.068	3.128		2.489	4350		30	36	--	--	--
3.20±0.040	3.19	3.204	3.273	3.285	3.297	0.068	3.338	2.198	4350	30	36	--	--	--
