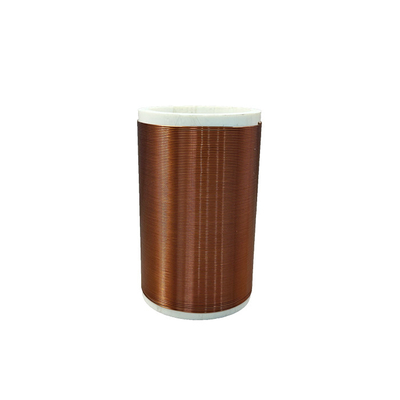

Overcoat Polyamide Copper Enameled Insulation Wire Grade two Thermal Class 155
  • name
  • name

Overcoat Polyamide Copper Enameled Insulation Wire Grade two Thermal Class 155

MOQ: The MOQ varies according to the size of the specification
Price: Copper price plus processing fee plus freight
Standard Packaging: Box
Delivery Period: 3-5 work days
Payment Method: T/T 100% payment before shipment
Supply Capacity: Delivery 10-15 days after next order
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
PEWSC
Certification
UL,ROHS
Model Number
PEFN Grade two
Document
Product Brochure PDF
Model:
PEFN Grade Three
Conductor Material:
Copper
Insulation Material:
Enamelled
Rated Voltage:
2800V The Voltage Resistance Varies According To The Thickness Of The Film And The Size Of The Specification
Thermal Class:
155℃
Enamelled Thickness:
Grade Two
Wire Diameter:
0.10mm-2.20mm
Standard:
NEMA
Color Option:
Could Be Customized
Packaging:
Carton
Applications:
For Refrigerator Fan Motor
Shape:
Round
Highlight:

Copper Enameled Insulation Wire

,

Enameled Insulation Wire Grade Two

Product Description

0.10mm-2.20mm PEFN Grade three Overcoat polyamide Copper Wire Thermal Class 155 For general motor



Grade three has the best heat resistance and is suitable for high ambient temperatures. The choice of insulation level should be considered in conjunction with the use of the environment.



Good insulation: Due to its outer layer of insulating varnish, it can provide good electrical insulation performance.



High temperature resistance: the insulating varnish can withstand a certain high temperature, so that the enameled wire can still work normally in a high temperature environment.



Corrosion resistance: the insulating varnish can also resist the corrosion of some chemicals, increasing the service life of the wire.



Flexibility: Compared with other types of electromagnetic wires, enameled wires are usually more flexible, making them easier to install and use.



Application: Due to its good electrical performance and mechanical properties, enameled wire PEFN is widely used in various electrical equipment and electronic products, such as transformers, motors, household appliances and so on.



Manufacturing process: The process of manufacturing enameled wire usually includes steps such as drawing, painting and drying. The copper conductor is first drawn to the desired diameter, then coated with insulating varnish and dried to cure.



Selection: When selecting enameled wire, factors such as diameter, length, and insulation grade need to be considered to ensure that it meets the needs of the particular application.



In conclusion, enameled wire PEFN is a type of electromagnetic wire that offers a number of benefits and plays a key role in many electrical and electronic applications.

Overcoat Polyamide Copper Enameled Insulation Wire Grade two Thermal Class 155 0



GB ---Grade2 Unit﹕mm
Diameter of
Conduct		 Conductor
Tolerance		 Conductor Control
Benchmarks		 OD Control
Benchmarks		 Specification Boundaries Conductor
Resistance 20℃
(Ω/KM)		 Min Elongation
(%)		 Max.
Springiness
(°)		 Insulation breakdown voltage
(v)
Lower
Limit		 Upper
Limit		 Lower
Limit		 Upper
Limit		 Min. Increase
in Diameter		 Max. Finished
overall Diameter
0.040 ±0.002 0.039 0.041 0.049 0.053 0.008 0.054 15202 9   475
0.045 ±0.003 0.044 0.046 0.056 0.060 0.010 0.061 12445 9   550
0.050 ±0.003 0.049 0.051 0.061 0.065 0.010 0.066 9938 10   600
0.056 ±0.003 0.055 0.057 0.067 0.071 0.010 0.074 7815 10   650
0.063 ±0.003 0.062 0.064 0.076 0.081 0.012 0.083 6098 12   700
0.071 ±0.003 0.070 0.072 0.084 0.089 0.012 0.091 4747 13   700
0.080 ±0.003 0.079 0.081 0.095 0.100 0.014 0.101 3703 14 80 850
0.090 ±0.003 0.089 0.091 0.106 0.111 0.015 0.113 2900 15 77 900
0.100 ±0.003 0.099 0.101 0.117 0.122 0.016 0.125 2333 16 73 950
0.112 ±0.003 0.111 0.114 0.130 0.136 0.017 0.139 1848 17 73 2700
0.125 ±0.003 0.124 0.127 0.145 0.151 0.019 0.154 1475 17 70 2800
0.140 ±0.003 0.139 0.142 0.162 0.168 0.021 0.171 1170 18 67 3000
0.160 ±0.003 0.159 0.162 0.184 0.190 0.023 0.194 890.6 19 67 3200
0.180 ±0.003 0.179 0.182 0.207 0.213 0.025 0.217 700.7 20 65 3300
0.200 ±0.003 0.199 0.202 0.229 0.235 0.027 0.239 565.7 21 62 3500
0.224 ±0.003 0.223 0.226 0.255 0.262 0.029 0.266 449.5 21 59 3700
0.250 ±0.004 0.249 0.253 0.285 0.292 0.032 0.297 362.8 22 56 3900
0.280 ±0.004 0.279 0.283 0.316 0.323 0.033 0.329 288.2 22 53 4000
0.315 ±0.004 0.314 0.317 0.353 0.361 0.035 0.367 227.0 23 55 4100
0.355 ±0.004 0.354 0.357 0.396 0.404 0.038 0.411 178.2 23 53 4300
0.400 ±0.005 0.398 0.403 0.444 0.454 0.040 0.459 140.7 24 50 4400
0.450 ±0.005 0.448 0.453 0.496 0.506 0.042 0.513 110.9 25 48 4400
0.500 ±0.005 0.498 0.503 0.549 0.559 0.045 0.566 89.59 25 47 4600
0.560 ±0.006 0.557 0.563 0.611 0.621 0.047 0.630 71.53 26 44 4600
0.630 ±0.006 0.627 0.633 0.684 0.696 0.050 0.704 56.38 27 50 4800
0.710 ±0.007 0.707 0.714 0.768 0.780 0.053 0.789 44.42 28 47 4800
0.800 ±0.008 0.797 0.804 0.861 0.873 0.056 0.884 35.00 28 43 4900
0.900 ±0.009 0.897 0.904 0.965 0.977 0.060 0.989 27.65 29 48 5000
1.000 ±0.010 0.997 1.004 1.068 1.082 0.063 1.094 22.40 30 45 5000
1.120 ±0.011 1.116 1.124 1.190 1.204 0.065 1.217 17.85 30 41 5000
1.250 ±0.013 1.246 1.254 1.322 1.336 0.067 1.349 14.35 31 37 5000
1.400 ±0.014 1.396 1.406 1.476 1.490 0.069 1.502 11.43 32 34 5000
1.600 ±0.016 1.596 1.606 1.678 1.694 0.071 1.706 8.75 32 30 5000
1.800 ±0.018 1.796 1.806 1.880 1.896 0.073 1.909 6.91 32   5000
2.000 ±0.020 1.994 2.006 2.082 2.098 0.075 2.112 5.60 33   5000
2.240 ±0.022 2.234 2.246 2.324 2.342 0.077 2.355 4.46 33   5000
2.500 ±0.025 2.494 2.506 2.586 2.604 0.079 2.618 3.58 33   5000
2.800 ±0.028 2.794 2.808 2.890 2.908 0.081 2.922 2.86 34   2500
3.150 ±0.032 3.144 3.158 3.243 3.263 0.084 3.276 2.26 34   2500
