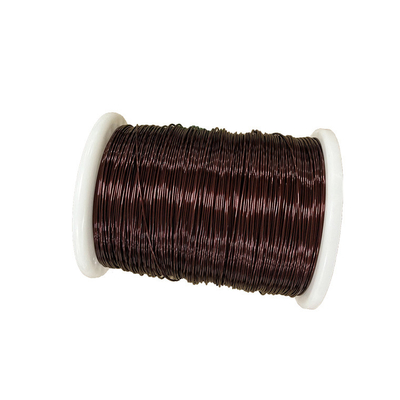

Round Enamel Insulated Copper Wire 0.10mm - 2.20mm Thermal Class 155 PEFN Single

Products

Round Enamel Insulated Copper Wire 0.10mm - 2.20mm Thermal Class 155 PEFN Single

MOQ:	The MOQ varies according to the size of the specification
Price:	Copper price plus processing fee plus freight
Standard Packaging:	Box
Delivery Period:	3-5 work days
Payment Method:	T/T 100% payment before shipment
Supply Capacity:	Delivery 10-15 days after next order

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

PEWSC

Certification

UL,ROHS

Model Number

PEFN Single

Document

Model:

PEFN Single

Material:

Copper

Insulation:

Enamelled

Voltage Rating:

2800V The Voltage Resistance Varies According To The Thickness Of The Film And The Size Of The Specification

Temperature Grade:

Hierarchy Thickness:

Single

Specification:

AWG 38-11

Applications:

For Refrigerator Fan Motor

Standard:

Color Option:

Natural、Red、Green

Packaging:

Carton

Shape:

Round

Highlight:

Enamel Insulated Copper Wire 0.10mm

Round Enamel Insulated Copper Wire

Round Enamel Copper Wire 2.20mm

Product Description

0.10mm-2.20mm PEFN Single Overcoat polyamide Copper Wire Thermal Class 155 For general motor

Single refers to a thinner wire diameter for applications with high space requirements or low current loads.

PEFN is an enameled wire made of Modified Polyester with a protective Nylon coating. Compared with the previously mentioned PEF1, PEFN has the following characteristics.

1. excellent abrasion resistance. the outer nylon protective layer of PEFN has high hardness and abrasion resistance, which can better resist various mechanical stresses and abrasion during the manufacturing process of motor stator windings.

2. Excellent flexibility. The addition of nylon protective layer does not affect the flexibility of PEFN, can be more convenient for motor winding molding and winding.

3. good insulation properties. PEFN inner layer of modified polyester insulation material thickness is generally 0.1-0.3mm, can provide reliable insulation protection at higher voltages.

4. Suitable for harsh environments. PEFN's nylon outer layer has strong corrosion resistance to chemicals and solvents, enabling it to be used in harsh industrial environments for long periods of time.

Overall, PEFN is an enameled wire product with excellent performance in terms of abrasion resistance, flexibility, insulation and chemical resistance. It is widely used in the manufacturing of windings for industrial motors, transformers and other equipment, and is particularly suitable for applications that require exposure to harsh environments.

Round Enamel Insulated Copper Wire 0.10mm - 2.20mm Thermal Class 155 PEFN Single 0

		NEMA---Single												Unit﹕mm
AWG	Diameter of Conduct		Conductor Control Benchmarks		OD Control Benchmarks			Specification Boundaries		Conductor Resistance 20℃ (Ω/KM)	Insulation breakdownvoltage (v)	Min Elongation (%)	Max. Springiness (°)	Resistance to abrasion
			Lower Limit	Upper Limit	Lower Limit	Median	Upper Limit	Min. Increase in Diameter	Max. Finished overall Diameter					Average	Minimum
44	0.051	+0.002	0.050	0.052	0.056	0.059	0.060	0.005	0.061	9527.95	500	14	--	--	--
		-0.003
43	0.056	+0.002	0.055	0.057	0.063	-------	0.066	0.005	0.069	7815.03	550	15	--	--	--
		-0.003
42	0.064	+0.002	0.063	0.065	0.071	0.073	0.075	0.005	0.076	5899.60	625	16	--	--	--
		-0.003
41	0.071	+0.003	0.070	0.072	0.079	0.081	0.083	0.008	0.084	4610.88	700	17	--	--	--
		-0.002
40	0.079	+0.002	0.078	0.080	0.087	0.090	0.093	0.008	0.094	3800.62	775	17	--	--	--
		-0.003
39	0.089	+0.002	0.088	0.090	0.099	0.102	0.105	0.008	0.107	2968.15	850	18	--	--	--
		-0.003
38	0.102	+0.002	0.101	0.103	0.111	0.114	0.117	0.008	0.118	2239.81	950	19	--	--	--
		-0.003
37	0.114	+0.003	0.113	0.115	0.125	0.128	0.131	0.010	0.132	1750.03	1075	20	--	--	--
		-0.002
36	0.127	+0.003	0.126	0.128	0.139	0.142	0.145	0.010	0.147	1427.71	1200	20	--	--	--
		-0.003
35	0.142	+0.003	0.141	0.143	0.154	0.157	0.160	0.010	0.165	1120.02	1325	21	--	--	--
		-0.002
34	0.16	+0.003	0.159	0.161	0.175	0.178	0.181	0.013	0.183	890.60	1500	22	--	--	--
		-0.003
33	0.18	+0.003	0.179	0.181	0.195	0.199	0.203	0.013	0.206	692.85	1675	23	--	--	--
		-0.002
32	0.203	+0.003	0.202	0.205	0.220	0.224	0.228	0.015	0.229	543.36	1850	24	--	--	--
		-0.002
31	0.226	+0.003	0.225	0.228	0.243	0.247	0.251	0.015	0.254	437.51	2075	24	--	--	--
		-0.002
30	0.254	+0.002	0.252	0.256	0.274	0.278	0.282	0.018	0.284	348.45	2300	25	66	295	250
		-0.003
29	0.287	+0.003	0.285	0.289	0.308	0.312	0.316	0.018	0.320	272.17	2375	26	61	310	265
		-0.003
28	0.32	+0.003	0.318	0.322	0.343	0.347	0.351	0.020	0.356	217.08	2425	26	55	335	285
		-0.002
27	0.361	+0.002	0.358	0.363	0.383	0.387	0.391	0.020	0.396	171.28	2500	27	50	355	300
		-0.003
26	0.404	+0.002	0.401	0.406	0.429	0.433	0.437	0.023	0.439	137.89	2550	27	76	380	325
		-0.005
25	0.455	+0.002	0.452	0.457	0.480	0.485	0.490	0.023	0.493	108.41	2625	28	72	400	340
		-0.005
24	0.511	+0.002	0.507	0.513	0.538	0.543	0.548	0.025	0.551	86.08	2700	28	67	430	365
		-0.006
23	0.574	+0.003	0.570	0.576	0.601	0.606	0.611	0.025	0.617	67.8	2775	29	62	460	390
		-0.005
22	0.643	+0.002	0.639	0.645	0.673	0.678	0.683	0.028	0.686	54.44	2850	29	58	490	415
		-0.008
21	0.724	+0.002	0.720	0.726	0.754	0.760	0.766	0.028	0.770	42.82	2925	30	53	525	445
		-0.008
20	0.813	+0.005	0.808	0.816	0.846	0.852	0.858	0.030	0.864	33.88	3000	30	66	560	475
		-0.008
19	0.912	+0.005	0.907	0.915	0.945	0.951	0.957	0.030	0.963	26.98	3075	31	62	600	510
		-0.01
18	1.024	+0.005	1.019	1.027	1.060	1.066	1.072	0.033	1.077	21.39	3175	32	58	645	550
		-0.011
17	1.151	+0.005	1.145	1.154	1.190	1.196	1.202	0.036	1.207	16.95	3250	32	54	690	585
		-0.013
16	1.29	+0.008	1.284	1.293	1.330	1.336	1.342	0.036	1.349	13.44	3325	33	50	735	625
		-0.012
15	1.45	+0.008	1.444	1.453	1.492	1.498	1.505	0.038	1.509	10.66	3425	33	46	780	665
		-0.015
14	1.628	+0.008	1.621	1.631	1.673	1.680	1.687	0.041	1.692	8.44	3525	33	42	840	715
		-0.015
The above single wear resistance value is applicable to MW-5C 35C 30C 81C 80C 24C 28C 76C , voltage resistance is applicable to MW-5C 35C 30C 81C 79C 75C 77C 26C .
