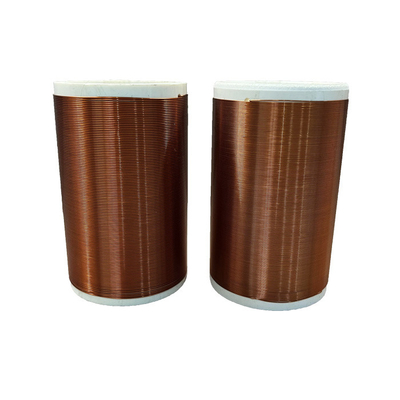

0.10mm-2.20mm PEFN U3 Overcoat polyamide Copper Wire Thermal Class 155 For general motor
PEW overcoat polyamide enameled wire (PEW overcoat polyamide) is a type of enameled wire with the product name PEWN/U, and is heat-resistant to 155°C with the heat-resistant classification of F. It is mainly used for general motors and other applications. It is mainly used in general motors and other fields.
U2 and U3 are double and triple wound respectively, which are more suitable for higher power and current applications and have better electromagnetic shielding performance.
Enameled wire is a major variety of winding wire, which is coated and baked several times. Different types of enameled wires have different qualitative characteristics, such as mechanical and chemical properties, and are suitable for different fields and environments:.
Enameled wire is a type of wire with a coating welded to the surface of fine copper wires used to generate magnetic flux by passing an electric current through a motor or transformer. Enameled wires, which replaced the previously used yarn- or silk-coated wires, are available in a variety of cross-section sizes and shapes, and there are also various types of insulation coverings (enameled wires)
Enameled wire PEFN U3 is an electronic component with high performance and reliability and is mainly used for the manufacture of conductors in various electronic devices and systems. It consists of high-quality copper wire as the conductor, with one or more layers of insulating material wrapped around the outer layer, a structure that gives enameled wire excellent electrical and mechanical properties.
| JIS---3種 | ||||||||||||||
| Unit﹕mm | ||||||||||||||
| Diameter of Conduct |
Conductor Control Benchmarks |
OD Control Benchmarks |
Specification Boundaries |
Conductor Resistance 20℃ (Ω/KM) |
Insulation breakdownvoltage (v) |
Min Elongation (%) |
Max. Springiness (°) |
Resistance to abrasion |
||||||
| Lower Limit |
Upper Limit |
Lower Limit |
Median | Upper Limit |
Min. Increase in Diameter |
Max. Finished overall Diameter |
JIS | AWG | Average | Minimum | ||||
| 0.04±0.002 | 0.039 | 0.041 | 0.045 | 0.047 | 0.050 | 0.004 | 0.052 | 15670 | 100 | 7 | 11 | -- | -- | -- |
| 0.05±0.003 | 0.049 | 0.051 | 0.057 | 0.060 | 0.062 | 0.006 | 0.064 | 10240 | 700 | 10 | 14 | -- | -- | -- |
| 0.06±0.003 | 0.059 | 0.061 | 0.067 | 0.070 | 0.072 | 0.006 | 0.075 | 6966 | 700 | 10 | 15 | -- | -- | -- |
| 0.07±0.003 | 0.069 | 0.071 | 0.077 | 0.080 | 0.082 | 0.006 | 0.085 | 4990 | 700 | 10 | 17 | -- | -- | -- |
| 0.08±0.003 | 0.079 | 0.081 | 0.087 | 0.091 | 0.094 | 0.006 | 0.097 | 3778 | 700 | 10 | 17 | -- | -- | -- |
| 0.09±0.003 | 0.089 | 0.091 | 0.097 | 0.101 | 0.104 | 0.006 | 0.107 | 2959 | 700 | 10 | 18 | -- | -- | -- |
| 0.10±0.003 | 0.099 | 0.101 | 0.107 | 0.110 | 0.114 | 0.006 | 0.118 | 2381 | 700 | 15 | 19 | -- | -- | -- |
| 0.11±0.003 | 0.109 | 0.111 | 0.117 | 0.121 | 0.124 | 0.006 | 0.128 | 1957 | 700 | 15 | 19 | -- | -- | -- |
| 0.12±0.003 | 0.119 | 0.121 | 0.129 | 0.132 | 0.135 | 0.008 | 0.139 | 1636 | 850 | 15 | 20 | -- | -- | -- |
| 0.13±0.003 | 0.129 | 0.131 | 0.137 | 0.142 | 0.145 | 0.008 | 0.149 | 1389 | 850 | 15 | 20 | -- | -- | -- |
| 0.14±0.003 | 0.139 | 0.141 | 0.149 | 0.152 | 0.155 | 0.008 | 0.159 | 1193 | 850 | 15 | 21 | -- | -- | -- |
| 0.15±0.003 | 0.149 | 0.151 | 0.159 | 0.162 | 0.165 | 0.008 | 0.169 | 1037 | 850 | 15 | 21 | -- | -- | -- |
| 0.16±0.003 | 0.159 | 0.161 | 0.171 | 0.174 | 0.177 | 0.010 | 0.181 | 908.8 | 850 | 15 | 22 | -- | -- | -- |
| 0.17±0.003 | 0.169 | 0.171 | 0.181 | 0.184 | 0.187 | 0.010 | 0.191 | 803.2 | 850 | 15 | 23 | -- | -- | -- |
| 0.18±0.003 | 0.179 | 0.181 | 0.191 | 0.194 | 0.197 | 0.010 | 0.202 | 715.0 | 1000 | 15 | 23 | -- | -- | -- |
| 0.19±0.003 | 0.189 | 0.191 | 0.201 | 0.204 | 0.208 | 0.010 | 0.212 | 640.6 | 1000 | 15 | 23 | -- | -- | -- |
| 0.20±0.003 | 0.198 | 0.201 | 0.211 | 0.214 | 0.218 | 0.010 | 0.222 | 577.2 | 1000 | 15 | 24 | -- | -- | -- |
| 0.21±0.003 | 0.208 | 0.212 | 0.221 | 0.224 | 0.228 | 0.010 | 0.232 | 522.8 | 1000 | 15 | 24 | -- | -- | -- |
| 0.22±0.004 | 0.218 | 0.222 | 0.231 | 0.235 | 0.239 | 0.010 | 0.243 | 480.1 | 1000 | 15 | 24 | -- | -- | -- |
| 0.23±0.004 | 0.228 | 0.232 | 0.243 | 0.246 | 0.249 | 0.012 | 0.255 | 438.6 | 1000 | 15 | 24 | -- | -- | -- |
| 0.24±0.004 | 0.238 | 0.242 | 0.253 | 0.256 | 0.259 | 0.012 | 0.265 | 402.2 | 1000 | 15 | 24 | -- | -- | -- |
| 0.25±0.004 | 0.248 | 0.252 | 0.263 | 0.266 | 0.269 | 0.012 | 0.275 | 370.2 | 1000 | 15 | 25 | 66 | -- | -- |
| 0.26±0.004 | 0.258 | 0.262 | 0.273 | 0.276 | 0.279 | 0.012 | 0.285 | 341.8 | 1000 | 15 | 25 | 66 | 163 | 133 |
| 0.27±0.004 | 0.268 | 0.272 | 0.283 | 0.286 | 0.289 | 0.012 | 0.295 | 316.6 | 1000 | 15 | 26 | 61 | 163 | 133 |
| 0.28±0.004 | 0.278 | 0.282 | 0.293 | 0.296 | 0.299 | 0.012 | 0.305 | 294.4 | 1000 | 15 | 26 | 61 | 163 | 133 |
| 0.29±0.004 | 0.288 | 0.292 | 0.303 | 0.306 | 0.309 | 0.012 | 0.315 | 273.9 | 1000 | 20 | 26 | 61 | 163 | 133 |
| 0.30±0.005 | 0.298 | 0.302 | 0.315 | 0.319 | 0.323 | 0.014 | 0.327 | 254.0 | 1400 | 20 | 26 | 61 | 194 | 163 |
| 0.32±0.005 | 0.317 | 0.322 | 0.335 | 0.339 | 0.343 | 0.014 | 0.347 | 222.8 | 1400 | 20 | 26 | 55 | 194 | 163 |
| 0.35±0.005 | 0.347 | 0.352 | 0.365 | 0.369 | 0.373 | 0.014 | 0.377 | 185.7 | 1400 | 20 | 27 | 50 | 194 | 163 |
| 0.37±0.005 | 0.367 | 0.372 | 0.385 | 0.389 | 0.393 | 0.014 | 0.397 | 165.9 | 1400 | 20 | 27 | 50 | 194 | 163 |
| 0.40±0.005 | 0.397 | 0.402 | 0.415 | 0.419 | 0.425 | 0.014 | 0.429 | 141.7 | 1400 | 20 | 27 | 76 | 204 | 163 |
| 0.45±0.006 | 0.446 | 0.452 | 0.465 | 0.469 | 0.475 | 0.014 | 0.479 | 112.1 | 1400 | 20 | 28 | 72 | 204 | 173 |
| 0.50±0.006 | 0.496 | 0.502 | 0.517 | 0.522 | 0.527 | 0.016 | 0.531 | 89.95 | 1450 | 20 | 28 | 67 | 235 | 204 |
| 0.55±0.006 | 0.546 | 0.552 | 0.567 | 0.572 | 0.577 | 0.016 | 0.581 | 74.18 | 1450 | 20 | 29 | 62 | 245 | 204 |
| 0.60±0.008 | 0.596 | 0.602 | 0.617 | 0.623 | 0.628 | 0.016 | 0.632 | 62.64 | 1450 | 20 | 29 | 62 | 245 | 204 |
