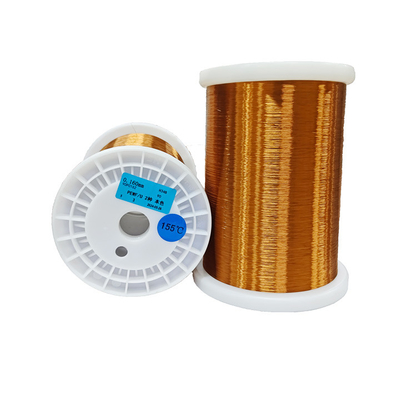

Modified Polyester Copper Enameled Wire Thermal Class 155 For High Temperature Motor

Products

Modified Polyester Copper Enameled Wire Thermal Class 155 For High Temperature Motor

MOQ:	The MOQ varies according to the size of the specification
Price:	Copper price plus processing fee plus freight
Standard Packaging:	Box
Delivery Period:	3-5 work days
Payment Method:	T/T 100% payment before shipment
Supply Capacity:	Delivery 10-15 days after next order

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

PEWSC

Certification

UL,ROHS

Model Number

PEWF Single

Document

Product Name:

PEWF Single

Material:

Copper

Insulation Material:

Enameled

Insulation Thickness:

Single

Specification:

AWG 38-8

Applications:

For Other Electric Appliances

Standard:

Color:

Could Be Customized

Conductor Shape:

Round

Packaging:

Highlight:

Modified Polyester Copper Enameled Wire

Copper Enameled Wire Class 155

Product Description

Enameled PEWF Single is an insulated wire designed for electrical applications with a core of high quality copper conductors coated with a uniform, continuous layer of polyesterimide-nylon (PEWF) composite insulating varnish that provides excellent electrical performance and high temperature resistance. It has the following characteristics:

1. High-quality copper conductor: PEWF Single enameled wire is made of high-purity copper as the conductor material, which ensures good electrical conductivity and signal transmission efficiency while reducing resistance loss.

2. High-performance insulating varnish coating: Advanced polyesterimide-nylon (PEWF) composite insulating varnish is used to provide the wire with excellent insulating properties, effectively preventing current leakage and improving voltage resistance.

3. High Temperature Resistance: PEWF insulating varnish has excellent high temperature resistance and is able to work stably in environments as high as 155°C, making it suitable for a wide range of high temperature application scenarios.

Modified Polyester Copper Enameled Wire Thermal Class 155 For High Temperature Motor 0

		NEMA---Single												Unit﹕mm
AWG	Diameter of Conduct		Conductor Control Benchmarks		OD Control Benchmarks			Specification Boundaries		Conductor Resistance 20℃ (Ω/KM)	Insulation breakdownvoltage (v)	Min Elongation (%)	Max. Springiness (°)	Resistance to abrasion
			Lower Limit	Upper Limit	Lower Limit	Median	Upper Limit	Min. Increase in Diameter	Max. Finished overall Diameter					Average	Minimum
44	0.051	+0.002	0.050	0.052	0.056	0.059	0.060	0.005	0.061	9527.95	500	14	--	--	--
		-0.003
43	0.056	+0.002	0.055	0.057	0.063	-------	0.066	0.005	0.069	7815.03	550	15	--	--	--
		-0.003
42	0.064	+0.002	0.063	0.065	0.071	0.073	0.075	0.005	0.076	5899.60	625	16	--	--	--
		-0.003
41	0.071	+0.003	0.070	0.072	0.079	0.081	0.083	0.008	0.084	4610.88	700	17	--	--	--
		-0.002
40	0.079	+0.002	0.078	0.080	0.087	0.090	0.093	0.008	0.094	3800.62	775	17	--	--	--
		-0.003
39	0.089	+0.002	0.088	0.090	0.099	0.102	0.105	0.008	0.107	2968.15	850	18	--	--	--
		-0.003
38	0.102	+0.002	0.101	0.103	0.111	0.114	0.117	0.008	0.118	2239.81	950	19	--	--	--
		-0.003
37	0.114	+0.003	0.113	0.115	0.125	0.128	0.131	0.010	0.132	1750.03	1075	20	--	--	--
		-0.002
36	0.127	+0.003	0.126	0.128	0.139	0.142	0.145	0.010	0.147	1427.71	1200	20	--	--	--
		-0.003
35	0.142	+0.003	0.141	0.143	0.154	0.157	0.160	0.010	0.165	1120.02	1325	21	--	--	--
		-0.002
34	0.16	+0.003	0.159	0.161	0.175	0.178	0.181	0.013	0.183	890.60	1500	22	--	--	--
		-0.003
33	0.18	+0.003	0.179	0.181	0.195	0.199	0.203	0.013	0.206	692.85	1675	23	--	--	--
		-0.002
32	0.203	+0.003	0.202	0.205	0.220	0.224	0.228	0.015	0.229	543.36	1850	24	--	--	--
		-0.002
31	0.226	+0.003	0.225	0.228	0.243	0.247	0.251	0.015	0.254	437.51	2075	24	--	--	--
		-0.002
30	0.254	+0.002	0.252	0.256	0.274	0.278	0.282	0.018	0.284	348.45	2300	25	66	295	250
		-0.003
29	0.287	+0.003	0.285	0.289	0.308	0.312	0.316	0.018	0.320	272.17	2375	26	61	310	265
		-0.003
28	0.32	+0.003	0.318	0.322	0.343	0.347	0.351	0.020	0.356	217.08	2425	26	55	335	285
		-0.002
27	0.361	+0.002	0.358	0.363	0.383	0.387	0.391	0.020	0.396	171.28	2500	27	50	355	300
		-0.003
26	0.404	+0.002	0.401	0.406	0.429	0.433	0.437	0.023	0.439	137.89	2550	27	76	380	325
		-0.005
25	0.455	+0.002	0.452	0.457	0.480	0.485	0.490	0.023	0.493	108.41	2625	28	72	400	340
		-0.005
24	0.511	+0.002	0.507	0.513	0.538	0.543	0.548	0.025	0.551	86.08	2700	28	67	430	365
		-0.006
23	0.574	+0.003	0.570	0.576	0.601	0.606	0.611	0.025	0.617	67.8	2775	29	62	460	390
		-0.005
22	0.643	+0.002	0.639	0.645	0.673	0.678	0.683	0.028	0.686	54.44	2850	29	58	490	415
		-0.008
21	0.724	+0.002	0.720	0.726	0.754	0.760	0.766	0.028	0.770	42.82	2925	30	53	525	445
		-0.008
20	0.813	+0.005	0.808	0.816	0.846	0.852	0.858	0.030	0.864	33.88	3000	30	66	560	475
		-0.008
19	0.912	+0.005	0.907	0.915	0.945	0.951	0.957	0.030	0.963	26.98	3075	31	62	600	510
		-0.01
18	1.024	+0.005	1.019	1.027	1.060	1.066	1.072	0.033	1.077	21.39	3175	32	58	645	550
		-0.011
17	1.151	+0.005	1.145	1.154	1.190	1.196	1.202	0.036	1.207	16.95	3250	32	54	690	585
		-0.013
16	1.29	+0.008	1.284	1.293	1.330	1.336	1.342	0.036	1.349	13.44	3325	33	50	735	625
		-0.012
15	1.45	+0.008	1.444	1.453	1.492	1.498	1.505	0.038	1.509	10.66	3425	33	46	780	665
		-0.015
14	1.628	+0.008	1.621	1.631	1.673	1.680	1.687	0.041	1.692	8.44	3525	33	42	840	715
		-0.015
The above single wear resistance value is applicable to MW-5C 35C 30C 81C 80C 24C 28C 76C , voltage resistance is applicable to MW-5C 35C 30C 81C 79C 75C 77C 26C .
