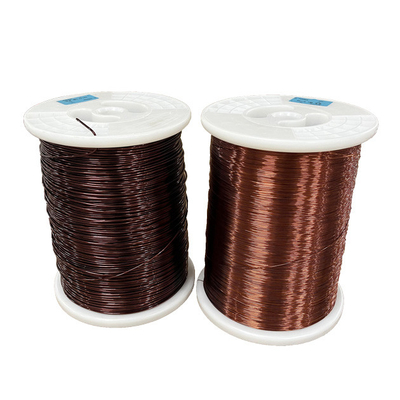

Non Weldable Enameled Copper Winding Wire 0.1mm - 2.20mm Overcoat Polyamide

MOQ: The MOQ varies according to the size of the specification
Price: Copper price plus processing fee plus freight
Standard Packaging: Box
Delivery Period: 3-5 work days
Payment Method: T/T 100% payment before shipment
Supply Capacity: Delivery 10-15 days after next order
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
PEWSC
Certification
UL,ROHS
Model Number
PEWN Grade two
Document
Product Brochure PDF
Model:
PEWN Grade Two
Conductor Material:
Copper
Specification:
0.1mm-2.20mm
Voltage Rating:
2800V The Voltage Resistance Varies According To The Thickness Of The Film And The Size Of The Specification
Temperature Class:
155℃
Insulation Marterial:
Enamelled
Applications:
For Refrigerator Fan Motor
Color Options:
Red, Natural, Green, Blue
Sample:
Free
Warranty:
3 Years
Shape:
Round
Highlight:

Non Weldable Enameled Copper Winding Wire

,

Enameled Copper Winding Wire 2.20mm

Product Description

PEWN Grade Two enameled wire is a premium insulation designed for high performance electrical applications. Below are some of the key features and benefits of this product:



1.Environmentally Friendly: The enameled wire is made of environmentally friendly materials, does not contain harmful substances, and complies with international environmental standards, which is harmless to the environment and human body.



2.Widely used: PEWN Grade Two enameled wire is suitable for a variety of electrical and electronic equipment, including motors, transformers, coils, sensors, etc., meeting the needs of different industries.



3.Ease of Processing: PEWN Grade Two enameled wire is easy to cut, form and install for the manufacture and maintenance of a wide variety of electrical equipment and systems.

Non Weldable Enameled Copper Winding Wire 0.1mm - 2.20mm Overcoat Polyamide 0Non Weldable Enameled Copper Winding Wire 0.1mm - 2.20mm Overcoat Polyamide 1

GB ---Grade2 Unit﹕mm
Diameter of
Conduct		 Conductor
Tolerance		 Conductor Control
Benchmarks		 OD Control
Benchmarks		 Specification Boundaries Conductor
Resistance 20℃
(Ω/KM)		 Min Elongation
(%)		 Max.
Springiness
(°)		 Insulation breakdown voltage
(v)
Lower
Limit		 Upper
Limit		 Lower
Limit		 Upper
Limit		 Min. Increase
in Diameter		 Max. Finished
overall Diameter
0.040 ±0.002 0.039 0.041 0.049 0.053 0.008 0.054 15202 9   475
0.045 ±0.003 0.044 0.046 0.056 0.060 0.010 0.061 12445 9   550
0.050 ±0.003 0.049 0.051 0.061 0.065 0.010 0.066 9938 10   600
0.056 ±0.003 0.055 0.057 0.067 0.071 0.010 0.074 7815 10   650
0.063 ±0.003 0.062 0.064 0.076 0.081 0.012 0.083 6098 12   700
0.071 ±0.003 0.070 0.072 0.084 0.089 0.012 0.091 4747 13   700
0.080 ±0.003 0.079 0.081 0.095 0.100 0.014 0.101 3703 14 80 850
0.090 ±0.003 0.089 0.091 0.106 0.111 0.015 0.113 2900 15 77 900
0.100 ±0.003 0.099 0.101 0.117 0.122 0.016 0.125 2333 16 73 950
0.112 ±0.003 0.111 0.114 0.130 0.136 0.017 0.139 1848 17 73 2700
0.125 ±0.003 0.124 0.127 0.145 0.151 0.019 0.154 1475 17 70 2800
0.140 ±0.003 0.139 0.142 0.162 0.168 0.021 0.171 1170 18 67 3000
0.160 ±0.003 0.159 0.162 0.184 0.190 0.023 0.194 890.6 19 67 3200
0.180 ±0.003 0.179 0.182 0.207 0.213 0.025 0.217 700.7 20 65 3300
0.200 ±0.003 0.199 0.202 0.229 0.235 0.027 0.239 565.7 21 62 3500
0.224 ±0.003 0.223 0.226 0.255 0.262 0.029 0.266 449.5 21 59 3700
0.250 ±0.004 0.249 0.253 0.285 0.292 0.032 0.297 362.8 22 56 3900
0.280 ±0.004 0.279 0.283 0.316 0.323 0.033 0.329 288.2 22 53 4000
0.315 ±0.004 0.314 0.317 0.353 0.361 0.035 0.367 227.0 23 55 4100
0.355 ±0.004 0.354 0.357 0.396 0.404 0.038 0.411 178.2 23 53 4300
0.400 ±0.005 0.398 0.403 0.444 0.454 0.040 0.459 140.7 24 50 4400
0.450 ±0.005 0.448 0.453 0.496 0.506 0.042 0.513 110.9 25 48 4400
0.500 ±0.005 0.498 0.503 0.549 0.559 0.045 0.566 89.59 25 47 4600
0.560 ±0.006 0.557 0.563 0.611 0.621 0.047 0.630 71.53 26 44 4600
0.630 ±0.006 0.627 0.633 0.684 0.696 0.050 0.704 56.38 27 50 4800
0.710 ±0.007 0.707 0.714 0.768 0.780 0.053 0.789 44.42 28 47 4800
0.800 ±0.008 0.797 0.804 0.861 0.873 0.056 0.884 35.00 28 43 4900
0.900 ±0.009 0.897 0.904 0.965 0.977 0.060 0.989 27.65 29 48 5000
1.000 ±0.010 0.997 1.004 1.068 1.082 0.063 1.094 22.40 30 45 5000
1.120 ±0.011 1.116 1.124 1.190 1.204 0.065 1.217 17.85 30 41 5000
1.250 ±0.013 1.246 1.254 1.322 1.336 0.067 1.349 14.35 31 37 5000
1.400 ±0.014 1.396 1.406 1.476 1.490 0.069 1.502 11.43 32 34 5000
1.600 ±0.016 1.596 1.606 1.678 1.694 0.071 1.706 8.75 32 30 5000
1.800 ±0.018 1.796 1.806 1.880 1.896 0.073 1.909 6.91 32   5000
2.000 ±0.020 1.994 2.006 2.082 2.098 0.075 2.112 5.60 33   5000
2.240 ±0.022 2.234 2.246 2.324 2.342 0.077 2.355 4.46 33   5000
2.500 ±0.025 2.494 2.506 2.586 2.604 0.079 2.618 3.58 33   5000
2.800 ±0.028 2.794 2.808 2.890 2.908 0.081 2.922 2.86 34   2500
3.150 ±0.032 3.144 3.158 3.243 3.263 0.084 3.276 2.26 34   2500
