Thermal Class 155 Polyester Enamelled Cable PEW Grade Two Non Weldable ROHS Approved

Products

Thermal Class 155 Polyester Enamelled Cable PEW Grade Two Non Weldable ROHS Approved

MOQ:	The MOQ Varies According to the Size of the Specification
Price:	Copper Price plus Processing Fee plus Freight
Standard Packaging:	Box
Delivery Period:	3-5 Work Days
Payment Method:	T/T 100% Payment before Shipment
Supply Capacity:	Delivery 10-15 Days after Next Order

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

PEWSC

Certification

UL,ROHS

Model Number

PEW Grade Two

Document

Model:

PEW Grade Two

Material:

Copper

Rated Voltage:

2800V The Voltage Resistance Varies According To The Thickness Of The Film And The Size Of The Specification

Temperature Grad:

Applications:

For Small Motor, General Motor

Enamel Thichness:

Grade Two

Color Options:

Could Be Customized

Sample:

Warranty:

3 Years

Shape:

Round

Package:

Carton

Highlight:

Polyester Enamelled Cable Non Weldable

ROHS Polyester Enamelled Cable

Product Description

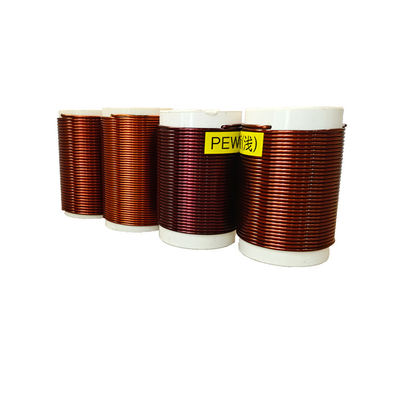

0.08mm-3.20mm polyester enamelled wire PEW Grade two Non weldable 155 Thermal Class 155

Grade Two enameled wire is a magnet wire material designedPEW for high-end electronic and electrical machines that require exacting precision. This intermediate grade of enameled wire offers improved cost-effectiveness while maintaining high performance, making it ideal for applications that require a balance between performance and economic considerat.

This enameled wire is manufactured through a precision process using high quality base metal materials and advanced insulating coatings to provide good conductivity and excellent electrical insulation. The insulating coating is uniform, continuous, and highly resistant to environmental changes, both in temperature and humidity.

Designed with ease of use and compatibility in mind, PEW Grade Two's standard size and thickness are compatible with a wide range of winding equipment and motor designs, making integration easier. Additionally, it is physically durable and resistant to the pulling and crushing encountered in daily operations, increasing the product's lifespan.

In terms of environmental protection, PEW Grade Two meets international environmental standards and has minimal negative impact on humans and the environment during use. This makes it the material of choice for many responsible companies in today's increasingly stringent environmental regulations.

Overall, PEW Grade Two enameled wire is the ideal choice for those seeking high performance, high reliability and cost-effective industrial solutions. It combines top-notch technology with reasonable cost-effectiveness to provide users with a well-balanced, high-quality option.

Thermal Class 155 Polyester Enamelled Cable PEW Grade Two Non Weldable ROHS Approved 0

GB ---Grade2 Unit﹕mm
Diameter of Conduct	Conductor Tolerance	Conductor Control Benchmarks		OD Control Benchmarks		Specification Boundaries		Conductor Resistance 20℃ (Ω/KM)	Min Elongation (%)	Max. Springiness (°)	Insulation breakdown voltage (v)
Diameter of Conduct	Conductor Tolerance	Lower Limit	Upper Limit	Lower Limit	Upper Limit	Min. Increase in Diameter	Max. Finished overall Diameter	Conductor Resistance 20℃ (Ω/KM)	Min Elongation (%)	Max. Springiness (°)	Insulation breakdown voltage (v)
0.040	±0.002	0.039	0.041	0.049	0.053	0.008	0.054	15202	9		475
0.045	±0.003	0.044	0.046	0.056	0.060	0.010	0.061	12445	9		550
0.050	±0.003	0.049	0.051	0.061	0.065	0.010	0.066	9938	10		600
0.056	±0.003	0.055	0.057	0.067	0.071	0.010	0.074	7815	10		650
0.063	±0.003	0.062	0.064	0.076	0.081	0.012	0.083	6098	12		700
0.071	±0.003	0.070	0.072	0.084	0.089	0.012	0.091	4747	13		700
0.080	±0.003	0.079	0.081	0.095	0.100	0.014	0.101	3703	14	80	850
0.090	±0.003	0.089	0.091	0.106	0.111	0.015	0.113	2900	15	77	900
0.100	±0.003	0.099	0.101	0.117	0.122	0.016	0.125	2333	16	73	950
0.112	±0.003	0.111	0.114	0.130	0.136	0.017	0.139	1848	17	73	2700
0.125	±0.003	0.124	0.127	0.145	0.151	0.019	0.154	1475	17	70	2800
0.140	±0.003	0.139	0.142	0.162	0.168	0.021	0.171	1170	18	67	3000
0.160	±0.003	0.159	0.162	0.184	0.190	0.023	0.194	890.6	19	67	3200
0.180	±0.003	0.179	0.182	0.207	0.213	0.025	0.217	700.7	20	65	3300
0.200	±0.003	0.199	0.202	0.229	0.235	0.027	0.239	565.7	21	62	3500
0.224	±0.003	0.223	0.226	0.255	0.262	0.029	0.266	449.5	21	59	3700
0.250	±0.004	0.249	0.253	0.285	0.292	0.032	0.297	362.8	22	56	3900
0.280	±0.004	0.279	0.283	0.316	0.323	0.033	0.329	288.2	22	53	4000
0.315	±0.004	0.314	0.317	0.353	0.361	0.035	0.367	227.0	23	55	4100
0.355	±0.004	0.354	0.357	0.396	0.404	0.038	0.411	178.2	23	53	4300
0.400	±0.005	0.398	0.403	0.444	0.454	0.040	0.459	140.7	24	50	4400
0.450	±0.005	0.448	0.453	0.496	0.506	0.042	0.513	110.9	25	48	4400
0.500	±0.005	0.498	0.503	0.549	0.559	0.045	0.566	89.59	25	47	4600
0.560	±0.006	0.557	0.563	0.611	0.621	0.047	0.630	71.53	26	44	4600
0.630	±0.006	0.627	0.633	0.684	0.696	0.050	0.704	56.38	27	50	4800
0.710	±0.007	0.707	0.714	0.768	0.780	0.053	0.789	44.42	28	47	4800
0.800	±0.008	0.797	0.804	0.861	0.873	0.056	0.884	35.00	28	43	4900
0.900	±0.009	0.897	0.904	0.965	0.977	0.060	0.989	27.65	29	48	5000
1.000	±0.010	0.997	1.004	1.068	1.082	0.063	1.094	22.40	30	45	5000
1.120	±0.011	1.116	1.124	1.190	1.204	0.065	1.217	17.85	30	41	5000
1.250	±0.013	1.246	1.254	1.322	1.336	0.067	1.349	14.35	31	37	5000
1.400	±0.014	1.396	1.406	1.476	1.490	0.069	1.502	11.43	32	34	5000
1.600	±0.016	1.596	1.606	1.678	1.694	0.071	1.706	8.75	32	30	5000
1.800	±0.018	1.796	1.806	1.880	1.896	0.073	1.909	6.91	32		5000
2.000	±0.020	1.994	2.006	2.082	2.098	0.075	2.112	5.60	33		5000
2.240	±0.022	2.234	2.246	2.324	2.342	0.077	2.355	4.46	33		5000
2.500	±0.025	2.494	2.506	2.586	2.604	0.079	2.618	3.58	33		5000
2.800	±0.028	2.794	2.808	2.890	2.908	0.081	2.922	2.86	34		2500
3.150	±0.032	3.144	3.158	3.243	3.263	0.084	3.276	2.26	34		2500
