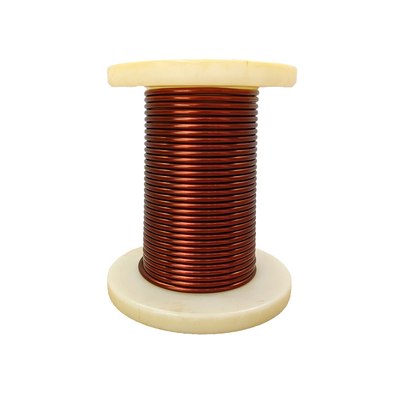

0.08mm - 3.20mm Polyester Enameled Copper Wire PEW U2 Non Weldable For Transformer
  • name
  • name

0.08mm - 3.20mm Polyester Enameled Copper Wire PEW U2 Non Weldable For Transformer

MOQ: The MOQ varies according to the size of the specification
Price: Copper price plus processing fee plus freight
Standard Packaging: Box
Delivery Period: 3-5 work days
Payment Method: T/T 100% payment before shipment
Supply Capacity: Delivery 10-15 days after next order
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
PEWSC
Certification
UL
Model Number
0.08mm-3.20mm
Document
Product Brochure PDF
Product Name:
PEW U2
Conductor Material:
Copper
Voltage Rating:
2800V The Voltage Resistance Varies According To The Thickness Of The Film And The Size Of The Specification
Theramal Class:
155℃
Applications:
For Transformer
Color Options:
Could Be Customized
Hierarchy Thichness:
Class Two
Sample:
Free
Warranty:
3 Years
Highlight:

Polyester Enameled Copper Wire Non Weldable

,

Transformer Polyester Enameled Copper Wire

Product Description

0.08mm-3.20mm polyester enamelled wire PEW U2 Non weldable 155 Thermal Class 155



U2 and U3 are double-layer and triple-layer windings respectively, which are more suitable for higher power and current applications and have better electromagnetic shielding performance.



The material and structure of PEW is relatively simple, which makes it easier to control the winding and molding process of the motor winding.



Good basic performance, PEW insulation layer thickness is generally 0.05-0.2mm, can provide basic insulation protection. At the same time, it also has a certain degree of heat resistance and mechanical strength.



Overall, PEW is a basic type of enameled wire with moderate performance and low cost, which is widely used in the manufacture of industrial motors, transformers and other common electrical equipment.0.08mm - 3.20mm Polyester Enameled Copper Wire PEW U2 Non Weldable For Transformer 0

JIS---2種 Unit﹕mm

Diameter of Conduct		 Conductor Control
Benchmarks		   OD Control Benchmarks   Specification Boundaries   Conductor
Resistance 20℃
(Ω/KM)		 Insulation breakdownvoltage
(v)		   Min Elongation
(%)		   Max.
Springiness
(°)		 Resistance to abrasion
Lower
Limit		 Upper
Limit		 Lower
Limit		 Median Upper
Limit		 Min. Increase in Diameter
(mm)		 Max. Finished overall Diameter
(mm)		 JIS AWG Average Minimum
0.04±0.002 0.039 0.041 0.047 0.050 0.053 0.006 0.056 15670 200 7 11 -- -- --
0.05±0.003 0.049 0.051 0.059 0.062 0.065 0.008 0.069 10240 950 10 14 -- -- --
0.06±0.003 0.059 0.061 0.069 0.072 0.075 0.008 0.081 6966 950 10 15 -- -- --
0.07±0.003 0.069 0.071 0.079 0.082 0.085 0.008 0.091 4990 950 10 17 -- -- --
0.08±0.003 0.079 0.081 0.091 0.095 0.099 0.010 0.103 3778 1100 10 17 -- -- --
0.09±0.003 0.089 0.091 0.102 0.106 0.110 0.010 0.113 2959 1100 10 18 -- -- --
0.10±0.003 0.099 0.101 0.112 0.116 0.120 0.010 0.125 2381 1100 15 19 -- -- --
0.11±0.003 0.109 0.111 0.122 0.126 0.130 0.010 0.135 1957 1100 15 19 -- -- --
0.12±0.003 0.119 0.121 0.134 0.138 0.142 0.012 0.147 1636 1300 15 20 -- -- --
0.13±0.003 0.129 0.131 0.144 0.148 0.152 0.012 0.157 1389 1300 15 20 -- -- --
0.14±0.003 0.139 0.141 0.154 0.158 0.162 0.012 0.167 1193 1300 15 21 -- -- --
0.15±0.003 0.149 0.151 0.164 0.168 0.172 0.012 0.177 1037 1300 15 21 -- -- --
0.16±0.003 0.159 0.161 0.176 0.180 0.184 0.014 0.189 908.8 1300 15 22 -- -- --
0.17±0.003 0.169 0.171 0.186 0.190 0.194 0.014 0.199 803.2 1300 15 23 -- -- --
0.18±0.003 0.179 0.181 0.198 0.202 0.206 0.016 0.211 715.0 1600 15 23 -- -- --
0.19±0.003 0.189 0.191 0.208 0.212 0.216 0.016 0.221 640.6 1600 15 23 -- -- --
0.20±0.003 0.198 0.201 0.218 0.222 0.226 0.016 0.231 577.2 1600 15 24 -- -- --
0.21±0.003 0.208 0.212 0.228 0.232 0.236 0.016 0.241 522.8 1600 15 24 -- -- --
0.22±0.004 0.218 0.222 0.238 0.242 0.246 0.016 0.252 480.1 1600 15 24 -- -- --
0.23±0.004 0.228 0.232 0.250 0.254 0.258 0.018 0.264 438.6 1600 15 24 -- -- --
0.24±0.004 0.238 0.242 0.260 0.264 0.268 0.018 0.274 402.2 1600 15 24 -- -- --
0.25±0.004 0.248 0.252 0.270 0.274 0.278 0.018 0.284 370.2 1600 15 25 66 -- --
0.26±0.004 0.258 0.262 0.280 0.284 0.288 0.018 0.294 341.8 1600 15 25 66 243 204
0.27±0.004 0.268 0.272 0.290 0.294 0.298 0.018 0.304 316.6 1600 15 26 61 243 204
0.28±0.004 0.278 0.282 0.300 0.304 0.308 0.018 0.314 294.1 1600 15 26 61 243 204
0.29±0.004 0.288 0.292 0.310 0.315 0.320 0.018 0.324 273.9 1600 20 26 61 243 204
0.30±0.005 0.298 0.302 0.322 0.327 0.332 0.020 0.337 254.0 2000 20 26 61 265 235
0.32±0.005 0.317 0.322 0.342 0.347 0.352 0.020 0.357 222.8 2000 20 26 55 275 235
0.35±0.005 0.347 0.352 0.372 0.377 0.382 0.020 0.387 185.7 2000 20 27 50 275 235
0.37±0.005 0.367 0.372 0.392 0.397 0.402 0.020 0.407 165.9 2000 20 27 50 275 235
0.40±0.005 0.397 0.402 0.424 0.429 0.434 0.022 0.439 141.7 2000 20 27 76 306 265
0.45±0.006 0.446 0.452 0.474 0.479 0.484 0.022 0.490 112.1 2000 20 28 72 316 265
0.50±0.006 0.496 0.502 0.526 0.531 0.536 0.024 0.542 89.95 2150 20 28 67 357 296
0.55±0.006 0.546 0.552 0.576 0.581 0.586 0.024 0.592 74.18 2150 20 29 62 357 296
0.60±0.008 0.596 0.602 0.626 0.632 0.638 0.024 0.644 62.64 2150 20 29 62 357 306
0.65±0.008 0.646 0.653 0.677 0.683 0.689 0.024 0.694 53.26 2150 20 29 58 367 306
0.70±0.008 0.696 0.703 0.729 0.735 0.741 0.026 0.746 45.84 2150 20 30 53 398 337
0.75±0.008 0.746 0.753 0.781 0.787 0.793 0.028 0.798 39.87 2400 20 30 53 439 367
0.80±0.010 0.796 0.803 0.834 0.840 0.846 0.030 0.852 35.17 2400 25 30 66 479 398
0.85±0.010 0.846 0.853 0.884 0.890 0.896 0.030 0.904 31.11 2400 25 30 66 479 398
0.90±0.010 0.896 0.903 0.936 0.942 0.948 0.032 0.956 27.71 2400 25 31 62 510 428
0.95±0.010 0.946 0.953 0.988 0.994 1.000 0.034 1.008 24.84 2400 25 31 62 551 459
1.00±0.012 0.996 1.003 1.038 1.045 1.052 0.034 1.062 22.49 2400 25 32 58 551 469
1.10±0.012 1.095 1.103 1.142 1.149 1.156 0.036 1.164 18.54 3050 25 32 54 551 469
1.20±0.012 1.195 1.203 1.242 1.249 1.258 0.036 1.264 15.55 3050 25 32 54 551 469
1.30±0.012 1.295 1.305 1.344 1.351 1.358 0.040 1.364 13.23 3400 25 33 50 622 520
1.40±0.012 1.395 1.405 1.444 1.451 1.458 0.040 1.464 11.39 3400 25 33 46 622 520
1.50±0.012 1.495 1.505 1.546 1.553 1.560 0.040 1.568 9.91 3400 25 33 46 622 520
1.60±0.012 1.595 1.605 1.646 1.653 1.660 0.040 1.668 8.71 3400 25 33 42 622 520
