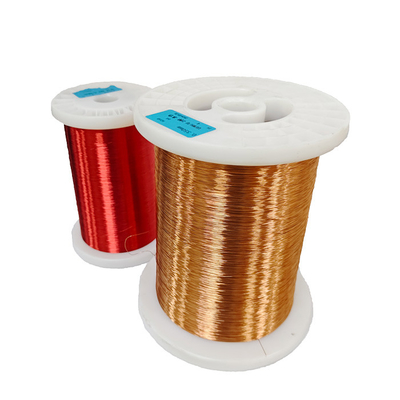

0.04mm-1.00mm High Thermal polyurethane enamelled wire UEWH Grade one Thermal class 180

Products

0.04mm-1.00mm High Thermal polyurethane enamelled wire UEWH Grade one Thermal class 180

MOQ:	The MOQ varies according to the size of the specification
Price:	Copper price plus processing fee plus freight
Standard Packaging:	Box
Delivery Period:	3-5 work days
Payment Method:	T/T 100% payment before shipment
Supply Capacity:	Delivery 10-15 days after next order

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

PEWSC

Certification

Model Number

UEWH Grade one

Document

Product Name:

UEWH Grade One

Conductor Material:

Copper

Voltage Rating:

2800V The Voltage Resistance Varies According To The Thickness Of The Film And The Size Of The Specification

Diameter:

AWG 46-18

Temperature Rating:

Warranty:

3 Years

Colors:

Could Be Customized

Package:

Origin Country:

China

Product Description

G1 is the thinnest insulation grade and is suitable for applications where space and weight are critical.

Good chemical resistance: The UEWH polyimide outer layer is highly resistant to a wide range of chemicals and solvents, making it suitable for industrial applications in harsh environments.

Overall, UEWH is a high-end enameled wire product with excellent performance in terms of heat resistance, mechanical strength, insulation and chemical resistance. It is widely used in the manufacture of key components for high power motors, large transformers and other industrial applications.

GB ---Grade1 Unit﹕mm
Diameter of Conduct	Conductor Tolerance	Conductor Control Benchmarks		OD Control Benchmarks		Specification Boundaries		Conductor Resistance 20℃ (Ω/KM)	Min Elongation (%)	Max. Springiness (°)	Insulation breakdown voltage (v)
Diameter of Conduct	Conductor Tolerance	Lower Limit	Upper Limit	Lower Limit	Upper Limit	Min. Increase in Diameter	Max. Finished overall Diameter	Conductor Resistance 20℃ (Ω/KM)	Min Elongation (%)	Max. Springiness (°)	Insulation breakdown voltage (v)
0.040	±0.002	0.039	0.041	0.045	0.049	0.004	0.049	15202	9		250
0.045	±0.003	0.044	0.046	0.051	0.055	0.005	0.055	12445	9		275
0.050	±0.003	0.049	0.051	0.056	0.060	0.005	0.060	9938	10		300
0.056	±0.003	0.055	0.057	0.063	0.067	0.006	0.067	7815	10		325
0.063	±0.003	0.062	0.064	0.071	0.076	0.007	0.076	6098	12		375
0.071	±0.003	0.070	0.072	0.079	0.084	0.007	0.084	4747	13		425
0.080	±0.003	0.079	0.081	0.088	0.094	0.007	0.094	3703	14	70	425
0.090	±0.003	0.089	0.091	0.099	0.105	0.008	0.105	2900	15	67	500
0.100	±0.003	0.099	0.101	0.109	0.116	0.008	0.117	2333	16	64	500
0.112	±0.003	0.111	0.114	0.122	0.129	0.009	0.130	1848	17	64	1300
0.125	±0.003	0.124	0.127	0.136	0.143	0.010	0.144	1475	17	62	1500
0.140	±0.003	0.139	0.142	0.152	0.159	0.011	0.160	1170	18	59	1600
0.160	±0.003	0.159	0.162	0.173	0.180	0.012	0.182	890.6	19	59	1700
0.180	±0.003	0.179	0.182	0.195	0.202	0.013	0.204	700.7	20	57	1700
0.200	±0.003	0.199	0.202	0.216	0.224	0.014	0.226	565.7	21	54	1800
0.224	±0.003	0.223	0.226	0.241	0.249	0.015	0.252	449.5	21	51	1900
0.250	±0.004	0.249	0.253	0.270	0.278	0.017	0.281	362.8	22	49	2100
0.280	±0.004	0.279	0.283	0.301	0.309	0.018	0.312	288.2	22	47	2200
0.315	±0.004	0.314	0.317	0.337	0.346	0.019	0.349	227.0	23	50	2200
0.355	±0.004	0.354	0.357	0.378	0.387	0.020	0.392	178.2	23	48	2300
0.400	±0.005	0.398	0.403	0.425	0.435	0.021	0.439	140.7	24	45	2300
0.450	±0.005	0.448	0.453	0.476	0.486	0.022	0.491	110.9	25	44	2300
0.500	±0.005	0.498	0.503	0.528	0.538	0.024	0.544	89.59	25	43	2400
0.560	±0.006	0.557	0.563	0.589	0.599	0.025	0.606	71.53	26	41	2500
0.630	±0.006	0.627	0.633	0.661	0.673	0.027	0.679	56.38	27	46	2600
0.710	±0.007	0.707	0.714	0.743	0.755	0.028	0.672	44.42	28	44	2600
0.800	±0.008	0.797	0.804	0.835	0.847	0.030	0.855	35.00	28	41	2600
0.900	±0.009	0.897	0.904	0.937	0.949	0.032	0.959	27.65	29	45	2700
1.000	±0.010	0.997	1.004	1.039	1.053	0.034	1.062	22.40	30	42	2700
1.120	±0.011	1.116	1.124	1.159	1.193	0.034	1.184	17.85	30	39	2700
1.250	±0.013	1.246	1.254	1.290	1.304	0.035	1.316	14.35	31	35	2700
1.400	±0.014	1.396	1.406	1.443	1.458	0.036	1.468	11.43	32	32	2700
1.600	±0.016	1.596	1.606	1.645	1.660	0.038	1.670	8.75	32	28	2700
