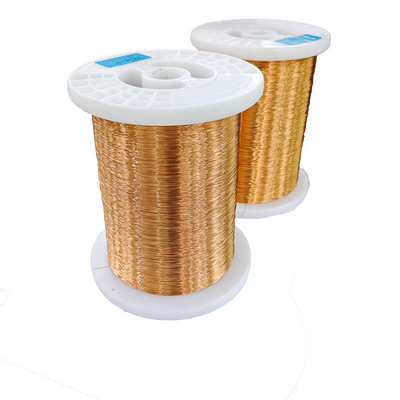

0.004mm-1.00mm High Thermal polyurethane enamelled wire UEWH U3 Thermal class 180

Products

0.004mm-1.00mm High Thermal polyurethane enamelled wire UEWH U3 Thermal class 180

MOQ:	The MOQ varies according to the size of the specification
Price:	Copper price plus processing fee plus freight
Standard Packaging:	Box
Delivery Period:	3-5 work days
Payment Method:	T/T 100% payment before shipment
Supply Capacity:	Delivery 10-15 days after next order

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

PEWSC

Certification

Model Number

UEWH U3

Document

Product Type:

UEWH U3

Conductor Material:

Copper

Rated Voltage:

The Voltage Resistance Varies According To The Thickness Of The Film And The Size Of The Specification

Diameter:

0.004mm-1.00mm

Temperature Rating:

Warranty:

3 Years

Colors:

Natural、Red、Green

Package:

Carton

Origin Country:

China

Product Description

UEWH is an enameled wire product that utilizes polyurethane as the insulating material and is coated with polyimide. Compared with the conventional UEWN series, UEWH has the following characteristics.

1. Excellent heat resistance: UEWH has a heat resistance temperature of 180°C, making it more suitable for applications such as motors and transformers in high-temperature environments.

2. Excellent mechanical strength: The polyimide material of UEWH outer layer has high mechanical strength and wear resistance, which can better resist various stresses in the manufacturing process of motor stator windings.

3. Excellent electrical properties: UEWH's polyurethane insulation layer thickness can reach 0.1-0.5mm, which can still provide reliable insulation protection in high voltage environments.

4. Good chemical resistance: UEWH polyimide outer layers are highly resistant to a wide range of chemicals and solvents, making them suitable for industrial applications in harsh environments.

0.004mm-1.00mm High Thermal polyurethane enamelled wire UEWH U3 Thermal class 180 0

JIS---3種
									Unit﹕mm
Diameter of Conduct	Conductor Control Benchmarks		OD Control Benchmarks			Specification Boundaries		Conductor Resistance 20℃ (Ω/KM)	Insulation breakdownvoltage (v)	Min Elongation (%)		Max. Springiness (°)	Resistance to abrasion
Diameter of Conduct	Lower Limit	Upper Limit	Lower Limit	Median	Upper Limit	Min. Increase in Diameter	Max. Finished overall Diameter	Conductor Resistance 20℃ (Ω/KM)	Insulation breakdownvoltage (v)	JIS	AWG	Max. Springiness (°)	Average	Minimum
0.04±0.002	0.039	0.041	0.045	0.047	0.050	0.004	0.052	15670	100	7	11	--	--	--
0.05±0.003	0.049	0.051	0.057	0.060	0.062	0.006	0.064	10240	700	10	14	--	--	--
0.06±0.003	0.059	0.061	0.067	0.070	0.072	0.006	0.075	6966	700	10	15	--	--	--
0.07±0.003	0.069	0.071	0.077	0.080	0.082	0.006	0.085	4990	700	10	17	--	--	--
0.08±0.003	0.079	0.081	0.087	0.091	0.094	0.006	0.097	3778	700	10	17	--	--	--
0.09±0.003	0.089	0.091	0.097	0.101	0.104	0.006	0.107	2959	700	10	18	--	--	--
0.10±0.003	0.099	0.101	0.107	0.110	0.114	0.006	0.118	2381	700	15	19	--	--	--
0.11±0.003	0.109	0.111	0.117	0.121	0.124	0.006	0.128	1957	700	15	19	--	--	--
0.12±0.003	0.119	0.121	0.129	0.132	0.135	0.008	0.139	1636	850	15	20	--	--	--
0.13±0.003	0.129	0.131	0.137	0.142	0.145	0.008	0.149	1389	850	15	20	--	--	--
0.14±0.003	0.139	0.141	0.149	0.152	0.155	0.008	0.159	1193	850	15	21	--	--	--
0.15±0.003	0.149	0.151	0.159	0.162	0.165	0.008	0.169	1037	850	15	21	--	--	--
0.16±0.003	0.159	0.161	0.171	0.174	0.177	0.010	0.181	908.8	850	15	22	--	--	--
0.17±0.003	0.169	0.171	0.181	0.184	0.187	0.010	0.191	803.2	850	15	23	--	--	--
0.18±0.003	0.179	0.181	0.191	0.194	0.197	0.010	0.202	715.0	1000	15	23	--	--	--
0.19±0.003	0.189	0.191	0.201	0.204	0.208	0.010	0.212	640.6	1000	15	23	--	--	--
0.20±0.003	0.198	0.201	0.211	0.214	0.218	0.010	0.222	577.2	1000	15	24	--	--	--
0.21±0.003	0.208	0.212	0.221	0.224	0.228	0.010	0.232	522.8	1000	15	24	--	--	--
0.22±0.004	0.218	0.222	0.231	0.235	0.239	0.010	0.243	480.1	1000	15	24	--	--	--
0.23±0.004	0.228	0.232	0.243	0.246	0.249	0.012	0.255	438.6	1000	15	24	--	--	--
0.24±0.004	0.238	0.242	0.253	0.256	0.259	0.012	0.265	402.2	1000	15	24	--	--	--
0.25±0.004	0.248	0.252	0.263	0.266	0.269	0.012	0.275	370.2	1000	15	25	66	--	--
0.26±0.004	0.258	0.262	0.273	0.276	0.279	0.012	0.285	341.8	1000	15	25	66	163	133
0.27±0.004	0.268	0.272	0.283	0.286	0.289	0.012	0.295	316.6	1000	15	26	61	163	133
0.28±0.004	0.278	0.282	0.293	0.296	0.299	0.012	0.305	294.4	1000	15	26	61	163	133
0.29±0.004	0.288	0.292	0.303	0.306	0.309	0.012	0.315	273.9	1000	20	26	61	163	133
0.30±0.005	0.298	0.302	0.315	0.319	0.323	0.014	0.327	254.0	1400	20	26	61	194	163
0.32±0.005	0.317	0.322	0.335	0.339	0.343	0.014	0.347	222.8	1400	20	26	55	194	163
0.35±0.005	0.347	0.352	0.365	0.369	0.373	0.014	0.377	185.7	1400	20	27	50	194	163
0.37±0.005	0.367	0.372	0.385	0.389	0.393	0.014	0.397	165.9	1400	20	27	50	194	163
0.40±0.005	0.397	0.402	0.415	0.419	0.425	0.014	0.429	141.7	1400	20	27	76	204	163
0.45±0.006	0.446	0.452	0.465	0.469	0.475	0.014	0.479	112.1	1400	20	28	72	204	173
0.50±0.006	0.496	0.502	0.517	0.522	0.527	0.016	0.531	89.95	1450	20	28	67	235	204
0.55±0.006	0.546	0.552	0.567	0.572	0.577	0.016	0.581	74.18	1450	20	29	62	245	204
0.60±0.008	0.596	0.602	0.617	0.623	0.628	0.016	0.632	62.64	1450	20	29	62	245	204
