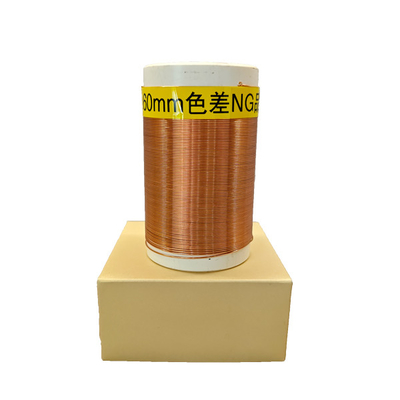

AWG 46-10 Overcoat Polyamide Round Enamelled Wire UEWN U0 Thermal Class 130

Products

AWG 46-10 Overcoat Polyamide Round Enamelled Wire UEWN U0 Thermal Class 130

MOQ:	The MOQ varies according to the size of the specification
Price:	Copper price plus processing fee plus freight
Standard Packaging:	Box
Delivery Period:	3-5 work days
Payment Method:	T/T 100% payment before shipment
Supply Capacity:	Delivery 10-15 days after next order

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

PEWSC

Certification

Model Number

0.04mm-2.60mm

Document

Conductor Material:

Copper

Rated Voltage:

2800V

Wire Diameter:

0.04mm-2.60mm

Color:

Natural、Red、Green、Blue

Sample:

Thermal Class:

130°C

Application:

For High Speed Coiling Processing,general Motor

Certification:

Category:

Warranty:

3 Years

Highlight:

AWG 46 Round Enamelled Wire

Polyamide Round Enamelled Wire

Product Description

In addition to the dielectric properties of the coated conductor, the enamel can also protect the conductor against oxidation. U0 is a magnet wire without a winding layer, which is suitable for occasions that do not require complex winding because of its simpler structure and lower cost.

UEWN is a type of enamelled wire with polyurethane insulation and a nylon outer layer. It has strong mechanical strength and heat resistance, and is widely used in motors, transformers and electronic equipment. UEWN can withstand high ambient temperatures and has good insulation properties, which can effectively prevent short circuits.

AWG 46-10 Overcoat Polyamide Round Enamelled Wire UEWN U0 Thermal Class 130 0

JIS---0種													Unit﹕mm
Diameter of Conduct	Conductor Control Benchmarks		OD Control Benchmarks			Specification Boundaries		Conductor Resistance 20℃ (Ω/KM)	Insulation breakdown voltage (v)	Min Elongation(%)		Max. Springiness (°)	Resistance to abrasion
Diameter of Conduct	Lower Limit	Upper Limit	Lower Limit	Median	Upper Limit	Min.Increase in Diameter (mm)	Max. Finished overall Diameter (mm)	Conductor Resistance 20℃ (Ω/KM)	Insulation breakdown voltage (v)	JIS	AWG	Max. Springiness (°)	Average	Minimum
0.06±0.003	0.059	0.061	0.093	0.098	0.103	0.030	0.110	6966	2500	10	15	--	--	--
0.07±0.003	0.069	0.071	0.103	0.108	0.113	0.030	0.120	4990	2500	10	17	--	--	--
0.08±0.003	0.079	0.081	0.115	0.120	0.125	0.032	0.133	3778	3000	10	17	--	--	--
0.09±0.003	0.089	0.091	0.125	0.130	0.135	0.032	0.143	2959	3000	10	18	--	--	--
0.10±0.008	0.098	0.101	0.134	0.139	0.144	0.032	0.156	2647	3500	15	19	--	--	--
0.11±0.008	0.108	0.111	0.144	0.149	0.154	0.032	0.166	2153	3500	15	19	--	--	--
0.12±0.008	0.118	0.121	0.156	0.161	0.166	0.034	0.180	1786	3750	15	20	--	--	--
0.13±0.008	0.128	0.131	0.162	0.171	0.176	0.034	0.190	1505	3750	15	20	--	--	--
0.14±0.008	0.138	0.141	0.176	0.181	0.186	0.034	0.200	1286	3750	15	21	--	--	--
0.15±0.008	0.148	0.151	0.186	0.191	0.196	0.034	0.210	1111	3750	15	21	--	--	--
0.16±0.008	0.158	0.161	0.198	0.203	0.208	0.036	0.222	969.5	3750	15	22	--	--	--
0.17±0.008	0.168	0.171	0.208	0.213	0.218	0.036	0.232	853.5	3750	15	23	--	--	--
0.18±0.008	0.178	0.181	0.220	0.225	0.230	0.038	0.246	757.2	3800	15	23	--	--	--
0.19±0.008	0.188	0.191	0.230	0.235	0.240	0.038	0.256	676.2	3800	15	23	--	--	--
0.20±0.008	0.198	0.201	0.240	0.245	0.250	0.038	0.266	607.6	3800	15	24	--	--	--
0.21±0.008	0.207	0.212	0.250	0.255	0.260	0.038	0.276	549.0	3800	15	24	--	--	--
0.22±0.008	0.217	0.222	0.260	0.265	0.270	0.038	0.286	498.4	3800	15	24	--	--	--
0.23±0.008	0.227	0.232	0.272	0.277	0.282	0.040	0.298	454.5	3800	15	24	--	--	--
0.24±0.008	0.237	0.242	0.282	0.287	0.292	0.040	0.308	416.2	3800	15	24	--	--	--
0.25±0.008	0.247	0.252	0.292	0.297	0.302	0.040	0.318	382.5	3800	15	25	66	--	--
0.26±0.010	0.257	0.262	0.302	0.307	0.312	0.040	0.330	358.4	3800	15	25	66	551	479
0.27±0.010	0.267	0.272	0.312	0.317	0.322	0.040	0.340	331.4	3800	15	26	61	551	479
0.28±0.010	0.277	0.282	0.322	0.327	0.332	0.040	0.350	307.3	3800	15	26	61	561	479
0.29±0.010	0.287	0.292	0.332	0.337	0.342	0.040	0.360	285.7	3800	20	26	61	561	490
0.30±0.010	0.297	0.302	0.344	0.349	0.354	0.042	0.374	262.9	4200	20	26	61	592	510
0.32±0.010	0.316	0.322	0.364	0.369	0.374	0.042	0.394	230.0	4200	20	26	55	602	510
0.35±0.010	0.346	0.352	0.394	0.399	0.404	0.042	0.424	191.2	4200	20	27	50	612	520
0.37±0.010	0.366	0.372	0.416	0.421	0.426	0.044	0.446	170.6	4200	20	27	50	643	551
0.40±0.010	0.396	0.402	0.448	0.454	0.460	0.046	0.480	145.3	4200	20	27	76	683	581
0.45±0.010	0.445	0.452	0.500	0.506	0.512	0.048	0.532	114.2	4200	20	28	72	724	622
0.50±0.010	0.495	0.502	0.552	0.558	0.564	0.050	0.586	91.43	4500	20	28	67	765	653
0.55±0.020	0.545	0.552	0.602	0.608	0.614	0.050	0.646	78.15	4500	20	29	62	775	663
0.60±0.020	0.595	0.602	0.654	0.661	0.668	0.052	0.698	65.26	4500	20	29	62	816	694
0.65±0.020	0.645	0.653	0.707	0.715	0.723	0.054	0.752	55.31	4500	20	29	58	857	734
0.70±0.020	0.695	0.703	0.759	0.767	0.775	0.056	0.804	47.47	4500	20	30	53	898	765
0.75±0.020	0.745	0.753	0.813	0.822	0.831	0.060	0.860	41.19	5100	20	30	53	979	826
0.80±0.020	0.794	0.803	0.865	0.874	0.883	0.062	0.914	36.08	5100	25	30	66	1010	867
0.85±0.020	0.844	0.853	0.917	0.926	0.935	0.064	0.966	31.87	5100	25	30	66	1020	898
0.90±0.020	0.894	0.903	0.969	0.978	0.987	0.066	1.020	28.35	5100	25	31	62	1120	928
0.95±0.020	0.944	0.953	1.021	1.031	1.041	0.068	1.072	25.38	5100	25	31	62	1120	969
1.00±0.030	0.994	1.003	1.075	1.085	1.095	0.072	1.138	23.33	5100	25	32	58	1220	1020
1.10±0.030	1.093	1.103	1.179	1.190	1.201	0.074	1.242	19.17	5900	25	32	54	1220	1020
1.20±0.030	1.193	1.203	1.279	1.290	1.301	0.074	1.342	16.04	5900	25	32	54	1330	1120
1.30±0.030	1.293	1.305	1.383	1.395	1.407	0.078	1.448	13.61	5900	25	33	50	1330	1120
1.40±0.030	1.393	1.405	1.483	1.495	1.507	0.078	1.548	11.70	5900	25	33	46	1330	1120
1.50±0.030	1.493	1.505	1.587	1.599	1.611	0.082	1.654	10.16	5900	25	33	46	1430	1220
1.60±0.030	1.592	1.605	1.687	1.699	1.711	0.082	1.754	8.906	5900	25	33	42	1430	1220
1.70±0.030	1.692	1.703	1.789	1.801	1.813	0.084	1.856	7.871	6300	25	33	--	1530	1330
1.80±0.030	1.792	1.803	1.889	1.901	1.913	0.084	1.956	7.007	6300	25	34	--	1530	1330
1.90±0.030	1.892	1.903	1.993	2.005	2.017	0.088	2.062	6.278	6300	25	34	--	1630	1330
2.00±0.030	1.992	2.003	2.093	2.105	2.117	0.088	2.162	5.656	6300	30	34	--	1630	1330
2.10±0.030	2.090	2.104	2.195	2.208	2.221	0.090	2.266	5.123	6300	30	34	--	1630	1430
2.20±0.030	2.19	2.204	2.297	2.310	2.323	0.092	2.368	4.662	6300	30	35	--	1730	1430
2.30±0.030	2.29	2.304	2.397	2.410	2.423	0.092	2.468	4.260	6300	30	35	--	1730	1430
2.40±0.030	2.390	2.404	2.501	2.515	2.529	0.096	2.574	3.908	6300	30	35	--	1840	1530
2.50±0.030	2.490	2.504	2.603	2.617	2.631	0.098	2.678	3.598	6300	30	35	--	1840	1530
2.60±0.030	2.590	2.604	2.703	2.717	2.731	0.098	2.778	3.324	6300	30	35	--	1840	1530
2.70±0.030	2.690	2.704	2.803	2.817	2.831	0.098	2.878	3.079	6300	30	35	--	--	--
2.80±0.030	2.790	2.804	2.903	2.917	2.931	0.098	2.978	2.861	6300	30	36	--	--	--
2.90±0.030	2.890	2.904	3.003	3.017	3.031	0.098	3.078	2.665	6300	30	36	--	--	--
3.00±0.030	2.99	3.004	3.103	3.117	3.131	0.098	3.178	2.489	6300	30	36	--	--	--
3.20±0.030	3.19	3.204	3.303	3.319	3.335	0.098	3.388	2.198	6300	30	36	--	--	--

Tags:

Products

MOQ:	The MOQ varies according to the size of the specification
Price:	Copper price plus processing fee plus freight
Standard Packaging:	Box
Delivery Period:	3-5 work days
Payment Method:	T/T 100% payment before shipment
Supply Capacity:	Delivery 10-15 days after next order

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

PEWSC

Certification

Model Number

0.04mm-2.60mm

Document

Product Brochure PDF

Conductor Material:

Copper

Rated Voltage:

2800V

Wire Diameter:

0.04mm-2.60mm

Color:

Natural、Red、Green、Blue

Sample:

Free

Thermal Class:

130°C

Application:

For High Speed Coiling Processing,general Motor

Certification:

Category:

Warranty:

3 Years

Minimum Order Quantity:

The MOQ varies according to the size of the specification

Price:

Copper price plus processing fee plus freight

Packaging Details:

Box

Delivery Time:

3-5 work days

Payment Terms:

T/T 100% payment before shipment

Supply Ability:

Delivery 10-15 days after next order

Highlight

AWG 46 Round Enamelled Wire

Polyamide Round Enamelled Wire

Product Description

AWG 46-10 Overcoat Polyamide Round Enamelled Wire UEWN U0 Thermal Class 130 0

JIS---0種													Unit﹕mm
Diameter of Conduct	Conductor Control Benchmarks		OD Control Benchmarks			Specification Boundaries		Conductor Resistance 20℃ (Ω/KM)	Insulation breakdown voltage (v)	Min Elongation(%)		Max. Springiness (°)	Resistance to abrasion
Diameter of Conduct	Lower Limit	Upper Limit	Lower Limit	Median	Upper Limit	Min.Increase in Diameter (mm)	Max. Finished overall Diameter (mm)	Conductor Resistance 20℃ (Ω/KM)	Insulation breakdown voltage (v)	JIS	AWG	Max. Springiness (°)	Average	Minimum
0.06±0.003	0.059	0.061	0.093	0.098	0.103	0.030	0.110	6966	2500	10	15	--	--	--
0.07±0.003	0.069	0.071	0.103	0.108	0.113	0.030	0.120	4990	2500	10	17	--	--	--
0.08±0.003	0.079	0.081	0.115	0.120	0.125	0.032	0.133	3778	3000	10	17	--	--	--
0.09±0.003	0.089	0.091	0.125	0.130	0.135	0.032	0.143	2959	3000	10	18	--	--	--
0.10±0.008	0.098	0.101	0.134	0.139	0.144	0.032	0.156	2647	3500	15	19	--	--	--
0.11±0.008	0.108	0.111	0.144	0.149	0.154	0.032	0.166	2153	3500	15	19	--	--	--
0.12±0.008	0.118	0.121	0.156	0.161	0.166	0.034	0.180	1786	3750	15	20	--	--	--
0.13±0.008	0.128	0.131	0.162	0.171	0.176	0.034	0.190	1505	3750	15	20	--	--	--
0.14±0.008	0.138	0.141	0.176	0.181	0.186	0.034	0.200	1286	3750	15	21	--	--	--
0.15±0.008	0.148	0.151	0.186	0.191	0.196	0.034	0.210	1111	3750	15	21	--	--	--
0.16±0.008	0.158	0.161	0.198	0.203	0.208	0.036	0.222	969.5	3750	15	22	--	--	--
0.17±0.008	0.168	0.171	0.208	0.213	0.218	0.036	0.232	853.5	3750	15	23	--	--	--
0.18±0.008	0.178	0.181	0.220	0.225	0.230	0.038	0.246	757.2	3800	15	23	--	--	--
0.19±0.008	0.188	0.191	0.230	0.235	0.240	0.038	0.256	676.2	3800	15	23	--	--	--
0.20±0.008	0.198	0.201	0.240	0.245	0.250	0.038	0.266	607.6	3800	15	24	--	--	--
0.21±0.008	0.207	0.212	0.250	0.255	0.260	0.038	0.276	549.0	3800	15	24	--	--	--
0.22±0.008	0.217	0.222	0.260	0.265	0.270	0.038	0.286	498.4	3800	15	24	--	--	--
0.23±0.008	0.227	0.232	0.272	0.277	0.282	0.040	0.298	454.5	3800	15	24	--	--	--
0.24±0.008	0.237	0.242	0.282	0.287	0.292	0.040	0.308	416.2	3800	15	24	--	--	--
0.25±0.008	0.247	0.252	0.292	0.297	0.302	0.040	0.318	382.5	3800	15	25	66	--	--
0.26±0.010	0.257	0.262	0.302	0.307	0.312	0.040	0.330	358.4	3800	15	25	66	551	479
0.27±0.010	0.267	0.272	0.312	0.317	0.322	0.040	0.340	331.4	3800	15	26	61	551	479
0.28±0.010	0.277	0.282	0.322	0.327	0.332	0.040	0.350	307.3	3800	15	26	61	561	479
0.29±0.010	0.287	0.292	0.332	0.337	0.342	0.040	0.360	285.7	3800	20	26	61	561	490
0.30±0.010	0.297	0.302	0.344	0.349	0.354	0.042	0.374	262.9	4200	20	26	61	592	510
0.32±0.010	0.316	0.322	0.364	0.369	0.374	0.042	0.394	230.0	4200	20	26	55	602	510
0.35±0.010	0.346	0.352	0.394	0.399	0.404	0.042	0.424	191.2	4200	20	27	50	612	520
0.37±0.010	0.366	0.372	0.416	0.421	0.426	0.044	0.446	170.6	4200	20	27	50	643	551
0.40±0.010	0.396	0.402	0.448	0.454	0.460	0.046	0.480	145.3	4200	20	27	76	683	581
0.45±0.010	0.445	0.452	0.500	0.506	0.512	0.048	0.532	114.2	4200	20	28	72	724	622
0.50±0.010	0.495	0.502	0.552	0.558	0.564	0.050	0.586	91.43	4500	20	28	67	765	653
0.55±0.020	0.545	0.552	0.602	0.608	0.614	0.050	0.646	78.15	4500	20	29	62	775	663
0.60±0.020	0.595	0.602	0.654	0.661	0.668	0.052	0.698	65.26	4500	20	29	62	816	694
0.65±0.020	0.645	0.653	0.707	0.715	0.723	0.054	0.752	55.31	4500	20	29	58	857	734
0.70±0.020	0.695	0.703	0.759	0.767	0.775	0.056	0.804	47.47	4500	20	30	53	898	765
0.75±0.020	0.745	0.753	0.813	0.822	0.831	0.060	0.860	41.19	5100	20	30	53	979	826
0.80±0.020	0.794	0.803	0.865	0.874	0.883	0.062	0.914	36.08	5100	25	30	66	1010	867
0.85±0.020	0.844	0.853	0.917	0.926	0.935	0.064	0.966	31.87	5100	25	30	66	1020	898
0.90±0.020	0.894	0.903	0.969	0.978	0.987	0.066	1.020	28.35	5100	25	31	62	1120	928
0.95±0.020	0.944	0.953	1.021	1.031	1.041	0.068	1.072	25.38	5100	25	31	62	1120	969
1.00±0.030	0.994	1.003	1.075	1.085	1.095	0.072	1.138	23.33	5100	25	32	58	1220	1020
1.10±0.030	1.093	1.103	1.179	1.190	1.201	0.074	1.242	19.17	5900	25	32	54	1220	1020
1.20±0.030	1.193	1.203	1.279	1.290	1.301	0.074	1.342	16.04	5900	25	32	54	1330	1120
1.30±0.030	1.293	1.305	1.383	1.395	1.407	0.078	1.448	13.61	5900	25	33	50	1330	1120
1.40±0.030	1.393	1.405	1.483	1.495	1.507	0.078	1.548	11.70	5900	25	33	46	1330	1120
1.50±0.030	1.493	1.505	1.587	1.599	1.611	0.082	1.654	10.16	5900	25	33	46	1430	1220
1.60±0.030	1.592	1.605	1.687	1.699	1.711	0.082	1.754	8.906	5900	25	33	42	1430	1220
1.70±0.030	1.692	1.703	1.789	1.801	1.813	0.084	1.856	7.871	6300	25	33	--	1530	1330
1.80±0.030	1.792	1.803	1.889	1.901	1.913	0.084	1.956	7.007	6300	25	34	--	1530	1330
1.90±0.030	1.892	1.903	1.993	2.005	2.017	0.088	2.062	6.278	6300	25	34	--	1630	1330
2.00±0.030	1.992	2.003	2.093	2.105	2.117	0.088	2.162	5.656	6300	30	34	--	1630	1330
2.10±0.030	2.090	2.104	2.195	2.208	2.221	0.090	2.266	5.123	6300	30	34	--	1630	1430
2.20±0.030	2.19	2.204	2.297	2.310	2.323	0.092	2.368	4.662	6300	30	35	--	1730	1430
2.30±0.030	2.29	2.304	2.397	2.410	2.423	0.092	2.468	4.260	6300	30	35	--	1730	1430
2.40±0.030	2.390	2.404	2.501	2.515	2.529	0.096	2.574	3.908	6300	30	35	--	1840	1530
2.50±0.030	2.490	2.504	2.603	2.617	2.631	0.098	2.678	3.598	6300	30	35	--	1840	1530
2.60±0.030	2.590	2.604	2.703	2.717	2.731	0.098	2.778	3.324	6300	30	35	--	1840	1530
2.70±0.030	2.690	2.704	2.803	2.817	2.831	0.098	2.878	3.079	6300	30	35	--	--	--
2.80±0.030	2.790	2.804	2.903	2.917	2.931	0.098	2.978	2.861	6300	30	36	--	--	--
2.90±0.030	2.890	2.904	3.003	3.017	3.031	0.098	3.078	2.665	6300	30	36	--	--	--
3.00±0.030	2.99	3.004	3.103	3.117	3.131	0.098	3.178	2.489	6300	30	36	--	--	--
3.20±0.030	3.19	3.204	3.303	3.319	3.335	0.098	3.388	2.198	6300	30	36	--	--	--
