Red Color Enamelled Round Copper Wire 0.05mm-1.5mm Suitable For Communication Equipment

Products

Red Color Enamelled Round Copper Wire 0.05mm-1.5mm Suitable For Communication Equipment

MOQ:	The MOQ Varies According to the Size of the Specification
Price:	Copper Price plus Processing Fee plus Freight
Standard Packaging:	Box
Delivery Period:	3-5 Work Days
Payment Method:	T/T 100% Payment before Shipment
Supply Capacity:	Delivery 10-15 Days after Next Order

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

PEWSC

Certification

Model Number

Red Color Enamelled Round Copper Wire

Document

Minimum Quantity:

300kg And Above

Shape:

Round

Size Range:

UEF1 Grade Three

Insualtion Type:

Copper

Temperature Grade:

Spool

Hierarchy:

Single、double、triple Layer

Highlight:

0.05mm Enamelled Round Copper Wire

Red Enamelled Round Copper Wire

1.5mm Enamelled Round Copper Wire

Product Description

1. Excellent heat resistance:
Heat-resistant temperature: UEWF can withstand heat-resistant temperatures up to 155°C. This makes it suitable for applications such as motors, transformers, etc., in high-temperature environments.
Thermal stability: In a high-temperature environment, UEWF's polyimide outer layer and modified polyester insulation work together to ensure that the wire can maintain stable performance under long-term high-temperature operation.

2. Excellent insulation properties:
Insulation thickness: The thickness of the modified polyester insulation layer of UEWF is generally 0.1-0.3mm, which can provide reliable insulation protection under high voltage conditions.
Electrical properties: The polyimide outer layer further enhances the dielectric strength and stability, ensuring electrical safety in high voltage and harsh environments.

3. Good mechanical strength:
Mechanical stress: Both the modified polyester insulation layer and the polyimide outer layer of UEWF have high mechanical strength, which can effectively resist the mechanical stress generated during the manufacturing process of the motor stator winding.
Abrasion resistance: The polyimide outer layer is extremely resistant to abrasion and maintains the integrity and performance of the wire under high levels of mechanical stress.

4. Excellent Chemical Resistance:
Corrosion resistance: UEWF's outer polyimide material is highly resistant to a wide range of chemicals and solvents, making it work stably for a long time in harsh industrial environments.
Chemical resistance: This property makes it suitable for chemical, petroleum, and other applications that require corrosion-resistant materials.

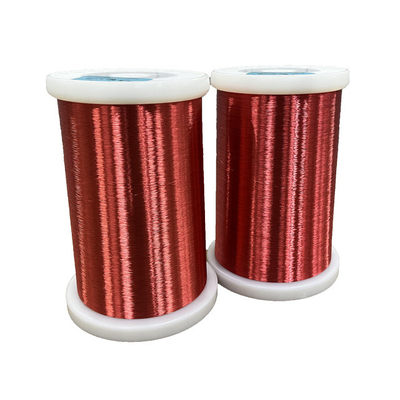

Red Color Enamelled Round Copper Wire 0.05mm-1.5mm Suitable For Communication Equipment 0

GB ---Grade3 Unit﹕mm
Diameter of Conduct	Conductor Tolerance	Conductor Control Benchmarks		OD Control Benchmarks		Specification Boundaries		Conductor Resistance 20℃ (Ω/KM)	Min Elongation (%)	Max. Springiness (°)	Insulation breakdown voltage (v)
Diameter of Conduct	Conductor Tolerance	Lower Limit	Upper Limit	Lower Limit	Upper Limit	Min. Increase in Diameter	Max. Finished overall Diameter	Conductor Resistance 20℃ (Ω/KM)	Min Elongation (%)	Max. Springiness (°)	Insulation breakdown voltage (v)
0.071	±0.003	0.070	0.072	0.09	0.095	0.018	0.097	4747	13	--	1100
0.080	±0.003	0.079	0.081	0.101	0.107	0.020	0.108	3703	14	100	1200
0.090	±0.003	0.089	0.091	0.113	0.119	0.022	0.120	2900	15	94	1300
0.100	±0.003	0.099	0.101	0.124	0.131	0.023	0.132	2333	16	90	1400
0.112	±0.003	0.111	0.114	0.139	0.146	0.026	0.147	1848	17	88	3900
0.125	±0.003	0.124	0.127	0.154	0.161	0.028	0.163	1475	17	84	4100
0.140	±0.003	0.139	0.142	0.171	0.178	0.030	0.181	1170	18	79	4200
0.160	±0.003	0.159	0.162	0.194	0.201	0.033	0.205	890.6	19	78	4400
0.180	±0.003	0.179	0.182	0.218	0.225	0.036	0.229	700.7	20	75	4700
0.200	±0.003	0.199	0.202	0.241	0.249	0.039	0.252	565.7	21	72	5100
0.224	±0.003	0.223	0.226	0.269	0.277	0.043	0.280	449.5	21	68	5200
0.250	±0.004	0.249	0.253	0.301	0.309	0.048	0.312	362.8	22	65	5500
0.280	±0.004	0.279	0.283	0.333	0.341	0.050	0.345	288.2	22	61	5800
0.315	±0.004	0.314	0.317	0.371	0.38	0.053	0.384	227.0	23	62	6100
0.355	±0.004	0.354	0.357	0.415	0.423	0.057	0.428	178.2	23	59	6400
0.400	±0.005	0.398	0.403	0.464	0.474	0.060	0.478	140.7	24	55	6600
0.450	±0.005	0.448	0.453	0.518	0.528	0.064	0.533	110.9	25	53	6800
0.500	±0.005	0.498	0.503	0.571	0.581	0.067	0.587	89.59	25	51	7000
0.560	±0.006	0.557	0.563	0.635	0.645	0.071	0.653	71.53	26	48	7100
0.630	±0.006	0.627	0.633	0.709	0.721	0.075	0.728	56.38	27	53	7100
0.710	±0.007	0.707	0.714	0.795	0.807	0.080	0.814	44.42	28	50	7200
0.800	±0.008	0.797	0.804	0.89	0.902	0.085	0.911	35.00	28	46	7400
0.900	±0.009	0.897	0.904	0.995	1.007	0.090	1.018	27.65	29	51	7600
1.000	±0.010	0.997	1.004	1.1	1.114	0.095	1.124	22.40	30	47	7600
1.120	±0.011	1.116	1.124	1.223	1.237	0.098	1.248	17.85	30	34	7600
1.250	±0.013	1.246	1.254	1.355	1.369	0.100	1.381	14.35	31	39	7600
1.400	±0.014	1.396	1.406	1.509	1.523	0.103	1.535	11.43	32	36	7600
1.600	±0.016	1.596	1.606	1.714	1.73	0.107	1.740	8.75	32	32	7600
1.800	±0.018	1.796	1.806	1.917	1.933	0.110	1.944	6.91	32		7600
2.000	±0.020	1.994	2.006	2.12	2.136	0.113	2.148	5.60	33		7600
2.240	±0.022	2.234	2.246	2.363	2.381	0.116	2.392	4.46	33		7600
2.500	±0.025	2.494	2.506	2.626	2.644	0.119	2.656	3.58	33		7600
2.800	±0.028	2.794	2.808	2.932	2.95	0.123	2.961	2.86	34		3800
3.150	±0.032	3.144	3.158	3.286	3.306	0.127	3.316	2.26	34		3800
