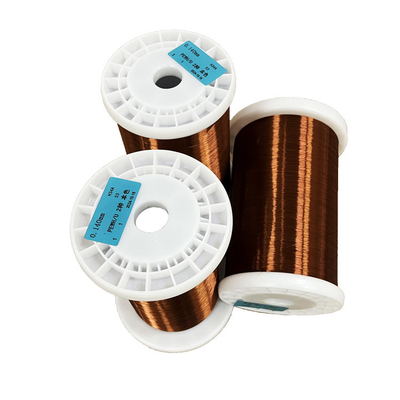

Enamelled Copper Wire UEWH 0.06mm-0.8mm With Natural Color For Small Motors Soderable Themral Class 180℃5
  • name
  • name

Enamelled Copper Wire UEWH 0.06mm-0.8mm With Natural Color For Small Motors Soderable Themral Class 180℃5

MOQ: The MOQ varies according to the size of the specification
Price: Copper price plus processing fee plus freight
Standard Packaging: Box
Delivery Period: 3-5 work days
Payment Method: T/T 100% payment before shipment
Supply Capacity: Delivery 10-15 days after next order
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
PEWSC
Certification
UL
Model Number
UEWH
Document
Catalogue.pdf
Insulation Material:
Copper
Application:
For Small Motors
Type:
Grade Three
Thermal Class:
180℃
Color:
Could Be Customized
Standard:
GB、IEC
Certification:
UL
Sample:
Free
Highlight:

0.8mm Enamelled Copper Wire

,

Natural Color Enamelled Copper Wire

,

0.06mm Enamelled Copper Wire

Product Description

    UEWH is a magnet wire product that uses modified polyester as the insulating material and is coated with polyimide on the outer layer. It has the following features:
1. Excellent heat resistance:
    UEWH has a heat-resistant temperature of up to 108°C, which is more suitable for motors, transformers and other applications in high-temperature environments. Due to the use of modified polyester material and polyimide outer layer with higher temperature resistance, UEWH can work stably in harsher temperature environments and is suitable for higher temperature application scenarios.


2. Excellent Mechanical Strength:
    The polyimide material on the outer layer of UEWH has extremely high mechanical strength and wear resistance, which is better able to resist various mechanical stresses and wear during the manufacturing of motor stator windings. This property gives it an advantage in environments that are subject to frequent mechanical stress or vibration, such as in industrial applications such as high-power motors and large transformers. It is also suitable for various machines, small motors, bias coils and other products with high winding requirements.


3. Good Insulation Properties:
    UEWH's modified polyester insulation can be up to 0.1-0.3mm thick and provides reliable insulation protection at higher voltages. The outer layer of polyimide material further enhances the insulating properties, allowing it to maintain reliable insulation even in harsh electrical environments.


4. Excellent Chemical Resistance:
    The UEWH polyimide outer layer is highly resistant to a wide range of chemicals and solvents, making it suitable for industrial applications in harsh environments.
This allows it to maintain stable performance in a variety of chemical environments, such as in chemical, petroleum, and other industries.


    Overall, copper wire is fully annealed for the best performance, and UEWH is a high-end enamelled wire product with excellent performance, in terms of heat resistance, mechanical strength, insulation, and chemical resistance. It is widely used in the manufacture of key components in industrial fields such as high-power motors and large transformers.

Enamelled Copper Wire UEWH 0.06mm-0.8mm With Natural Color For Small Motors Soderable Themral Class 180℃5 0Enamelled Copper Wire UEWH 0.06mm-0.8mm With Natural Color For Small Motors Soderable Themral Class 180℃5 1



GB ---Grade3 Unit﹕mm
Diameter of
Conduct		 Conductor
Tolerance		 Conductor Control
Benchmarks		 OD Control
Benchmarks		 Specification Boundaries Conductor
Resistance 20℃
(Ω/KM)		 Min Elongation
(%)		 Max.
Springiness
(°)		 Insulation breakdown voltage
(v)
Lower
Limit		 Upper
Limit		 Lower
Limit		 Upper
Limit		 Min. Increase
in Diameter		 Max. Finished
overall Diameter
0.071 ±0.003 0.070 0.072 0.09 0.095 0.018 0.097 4747 13 -- 1100
0.080 ±0.003 0.079 0.081 0.101 0.107 0.020 0.108 3703 14 100 1200
0.090 ±0.003 0.089 0.091 0.113 0.119 0.022 0.120 2900 15 94 1300
0.100 ±0.003 0.099 0.101 0.124 0.131 0.023 0.132 2333 16 90 1400
0.112 ±0.003 0.111 0.114 0.139 0.146 0.026 0.147 1848 17 88 3900
0.125 ±0.003 0.124 0.127 0.154 0.161 0.028 0.163 1475 17 84 4100
0.140 ±0.003 0.139 0.142 0.171 0.178 0.030 0.181 1170 18 79 4200
0.160 ±0.003 0.159 0.162 0.194 0.201 0.033 0.205 890.6 19 78 4400
0.180 ±0.003 0.179 0.182 0.218 0.225 0.036 0.229 700.7 20 75 4700
0.200 ±0.003 0.199 0.202 0.241 0.249 0.039 0.252 565.7 21 72 5100
0.224 ±0.003 0.223 0.226 0.269 0.277 0.043 0.280 449.5 21 68 5200
0.250 ±0.004 0.249 0.253 0.301 0.309 0.048 0.312 362.8 22 65 5500
0.280 ±0.004 0.279 0.283 0.333 0.341 0.050 0.345 288.2 22 61 5800
0.315 ±0.004 0.314 0.317 0.371 0.38 0.053 0.384 227.0 23 62 6100
0.355 ±0.004 0.354 0.357 0.415 0.423 0.057 0.428 178.2 23 59 6400
0.400 ±0.005 0.398 0.403 0.464 0.474 0.060 0.478 140.7 24 55 6600
0.450 ±0.005 0.448 0.453 0.518 0.528 0.064 0.533 110.9 25 53 6800
0.500 ±0.005 0.498 0.503 0.571 0.581 0.067 0.587 89.59 25 51 7000
0.560 ±0.006 0.557 0.563 0.635 0.645 0.071 0.653 71.53 26 48 7100
0.630 ±0.006 0.627 0.633 0.709 0.721 0.075 0.728 56.38 27 53 7100
0.710 ±0.007 0.707 0.714 0.795 0.807 0.080 0.814 44.42 28 50 7200
0.800 ±0.008 0.797 0.804 0.89 0.902 0.085 0.911 35.00 28 46 7400
0.900 ±0.009 0.897 0.904 0.995 1.007 0.090 1.018 27.65 29 51 7600
1.000 ±0.010 0.997 1.004 1.1 1.114 0.095 1.124 22.40 30 47 7600
1.120 ±0.011 1.116 1.124 1.223 1.237 0.098 1.248 17.85 30 34 7600
1.250 ±0.013 1.246 1.254 1.355 1.369 0.100 1.381 14.35 31 39 7600
1.400 ±0.014 1.396 1.406 1.509 1.523 0.103 1.535 11.43 32 36 7600
1.600 ±0.016 1.596 1.606 1.714 1.73 0.107 1.740 8.75 32 32 7600
1.800 ±0.018 1.796 1.806 1.917 1.933 0.110 1.944 6.91 32   7600
2.000 ±0.020 1.994 2.006 2.12 2.136 0.113 2.148 5.60 33   7600
2.240 ±0.022 2.234 2.246 2.363 2.381 0.116 2.392 4.46 33   7600
2.500 ±0.025 2.494 2.506 2.626 2.644 0.119 2.656 3.58 33   7600
2.800 ±0.028 2.794 2.808 2.932 2.95 0.123 2.961 2.86 34   3800
3.150 ±0.032 3.144 3.158 3.286 3.306 0.127 3.316 2.26 34   3800
