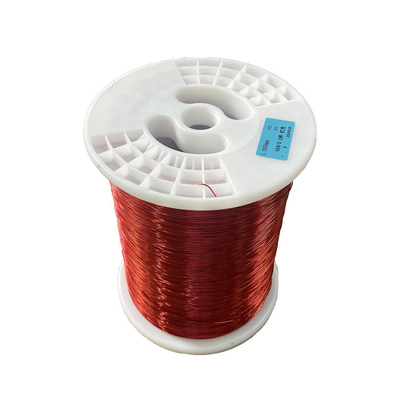

0.004mm-1.00mm UEHN overcoat polyamide enamelled wire UEHN U3 Thermal class 180

MOQ: The MOQ varies according to the size of the specification
Price: Copper price plus processing fee plus freight
Standard Packaging: Box
Delivery Period: 3-5 work days
Payment Method: T/T 100% payment before shipment
Supply Capacity: Delivery 10-15 days after next order
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
PEWSC
Certification
UL
Model Number
0.004mm-1.00mm
Document
Product Brochure PDF
Model:
UEHN U3
Warranty:
3 Years
Voltage Rating:
2800V The Voltage Resistance Varies According To The Thickness Of The Film And The Size Of The Specification
Temperature Grade:
180℃
Wire Diameter:
0.004mm-1.00mm
Certifications:
CE, RoHS, UL
Applications:
For High Thermal Solderable High Applications
Colors:
Natural、Red、Green、Blue
Country Of Origin:
China
Product Description

U2 and U3 are double-layer and triple-layer windings respectively, which are more suitable for higher power and current applications and have better electromagnetic shielding performance.



1. Extremely high heat resistance: UEHN is heat resistant up to 180°C, making it stable and reliable for long term operation in high temperature environments. This makes it ideal for motor and transformer applications where extreme temperature conditions need to be tolerated.



2. Excellent Mechanical Properties: UEHN adopts a special polymer formulation and production process, which has extremely high tensile strength and wear resistance.

UEHN is able to withstand a wide range of mechanical stresses during the manufacture of motor stator windings.



3.Good chemical resistance: UEHN's polyimide insulation has excellent corrosion resistance to most chemicals and solvents, allowing it to work stably for a long time in harsh environments.

JIS---3種
                  Unit﹕mm
Diameter of
Conduct		 Conductor Control
Benchmarks		 OD Control
Benchmarks		 Specification
Boundaries		 Conductor
Resistance 20℃
(Ω/KM)		 Insulation breakdownvoltage
(v)		 Min Elongation
(%)		 Max.
Springiness
(°)		 Resistance to
abrasion
Lower
Limit		 Upper
Limit		 Lower
Limit		 Median Upper
Limit		 Min. Increase
in Diameter		 Max. Finished
overall Diameter		 JIS AWG Average Minimum
0.04±0.002 0.039 0.041 0.045 0.047 0.050 0.004 0.052 15670 100 7 11 -- -- --
0.05±0.003 0.049 0.051 0.057 0.060 0.062 0.006 0.064 10240 700 10 14 -- -- --
0.06±0.003 0.059 0.061 0.067 0.070 0.072 0.006 0.075 6966 700 10 15 -- -- --
0.07±0.003 0.069 0.071 0.077 0.080 0.082 0.006 0.085 4990 700 10 17 -- -- --
0.08±0.003 0.079 0.081 0.087 0.091 0.094 0.006 0.097 3778 700 10 17 -- -- --
0.09±0.003 0.089 0.091 0.097 0.101 0.104 0.006 0.107 2959 700 10 18 -- -- --
0.10±0.003 0.099 0.101 0.107 0.110 0.114 0.006 0.118 2381 700 15 19 -- -- --
0.11±0.003 0.109 0.111 0.117 0.121 0.124 0.006 0.128 1957 700 15 19 -- -- --
0.12±0.003 0.119 0.121 0.129 0.132 0.135 0.008 0.139 1636 850 15 20 -- -- --
0.13±0.003 0.129 0.131 0.137 0.142 0.145 0.008 0.149 1389 850 15 20 -- -- --
0.14±0.003 0.139 0.141 0.149 0.152 0.155 0.008 0.159 1193 850 15 21 -- -- --
0.15±0.003 0.149 0.151 0.159 0.162 0.165 0.008 0.169 1037 850 15 21 -- -- --
0.16±0.003 0.159 0.161 0.171 0.174 0.177 0.010 0.181 908.8 850 15 22 -- -- --
0.17±0.003 0.169 0.171 0.181 0.184 0.187 0.010 0.191 803.2 850 15 23 -- -- --
0.18±0.003 0.179 0.181 0.191 0.194 0.197 0.010 0.202 715.0 1000 15 23 -- -- --
0.19±0.003 0.189 0.191 0.201 0.204 0.208 0.010 0.212 640.6 1000 15 23 -- -- --
0.20±0.003 0.198 0.201 0.211 0.214 0.218 0.010 0.222 577.2 1000 15 24 -- -- --
0.21±0.003 0.208 0.212 0.221 0.224 0.228 0.010 0.232 522.8 1000 15 24 -- -- --
0.22±0.004 0.218 0.222 0.231 0.235 0.239 0.010 0.243 480.1 1000 15 24 -- -- --
0.23±0.004 0.228 0.232 0.243 0.246 0.249 0.012 0.255 438.6 1000 15 24 -- -- --
0.24±0.004 0.238 0.242 0.253 0.256 0.259 0.012 0.265 402.2 1000 15 24 -- -- --
0.25±0.004 0.248 0.252 0.263 0.266 0.269 0.012 0.275 370.2 1000 15 25 66 -- --
0.26±0.004 0.258 0.262 0.273 0.276 0.279 0.012 0.285 341.8 1000 15 25 66 163 133
0.27±0.004 0.268 0.272 0.283 0.286 0.289 0.012 0.295 316.6 1000 15 26 61 163 133
0.28±0.004 0.278 0.282 0.293 0.296 0.299 0.012 0.305 294.4 1000 15 26 61 163 133
0.29±0.004 0.288 0.292 0.303 0.306 0.309 0.012 0.315 273.9 1000 20 26 61 163 133
0.30±0.005 0.298 0.302 0.315 0.319 0.323 0.014 0.327 254.0 1400 20 26 61 194 163
0.32±0.005 0.317 0.322 0.335 0.339 0.343 0.014 0.347 222.8 1400 20 26 55 194 163
0.35±0.005 0.347 0.352 0.365 0.369 0.373 0.014 0.377 185.7 1400 20 27 50 194 163
0.37±0.005 0.367 0.372 0.385 0.389 0.393 0.014 0.397 165.9 1400 20 27 50 194 163
0.40±0.005 0.397 0.402 0.415 0.419 0.425 0.014 0.429 141.7 1400 20 27 76 204 163
0.45±0.006 0.446 0.452 0.465 0.469 0.475 0.014 0.479 112.1 1400 20 28 72 204 173
0.50±0.006 0.496 0.502 0.517 0.522 0.527 0.016 0.531 89.95 1450 20 28 67 235 204
0.55±0.006 0.546 0.552 0.567 0.572 0.577 0.016 0.581 74.18 1450 20 29 62 245 204
0.60±0.008 0.596 0.602 0.617 0.623 0.628 0.016 0.632 62.64 1450 20 29 62 245 204
