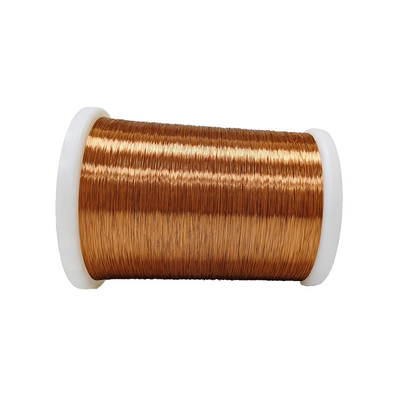

AWG 46-11 Polyurethane Enamel Round Copper Wire Grade Three Thermal Class 130

Products

AWG 46-11 Polyurethane Enamel Round Copper Wire Grade Three Thermal Class 130

MOQ:	The MOQ varies according to the size of the specification
Price:	Copper price plus processing fee plus freight
Standard Packaging:	Box
Delivery Period:	3-5 work days
Payment Method:	T/T 100% payment before shipment
Supply Capacity:	Delivery 10-15 days after next order

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

PEWSC

Certification

Model Number

0.04-2.30mm

Document

Conductor Material:

Copper

Voltage Rating:

2800V

Diameter:

AWG 46-11

Color:

Natural、Red、Green、Blue

Sample:

Temperature Rating:

130°C

Application:

For Small Transformer,electric Fan Motor

Certification:

Category:

Grade Three

Highlight:

Polyurethane Enamel Round Copper Wire

AWG 46 Enamel Round Copper Wire

Product Description

It is widely used in the winding manufacturing field of high-end motors, transformers and other electrical equipment. Its excellent heat, insulation, and mechanical properties make it the material of choice for many industrial applications.

1.Good mechanical properties. UEW combines high tensile strength and flexibility to withstand a wide range of mechanical stresses during the manufacturing of motor stator windings.
2.Excellent chemical resistance. UEW's insulation is highly resistant to most chemicals and solvents, and provides reliable insulation in harsh environments.

Grade three have a thicker insulation, which is safer and more reliable to use at voltage.

AWG 46-11 Polyurethane Enamel Round Copper Wire Grade Three Thermal Class 130 0

GB ---Grade3 Unit﹕mm
Diameter of Conduct	Conductor Tolerance	Conductor Control Benchmarks		OD Control Benchmarks		Specification Boundaries		Conductor Resistance 20℃ (Ω/KM)	Min Elongation (%)	Max. Springiness (°)	Insulation breakdown voltage (v)
Diameter of Conduct	Conductor Tolerance	Lower Limit	Upper Limit	Lower Limit	Upper Limit	Min. Increase in Diameter	Max. Finished overall Diameter	Conductor Resistance 20℃ (Ω/KM)	Min Elongation (%)	Max. Springiness (°)	Insulation breakdown voltage (v)
0.071	±0.003	0.070	0.072	0.09	0.095	0.018	0.097	4747	13	--	1100
0.080	±0.003	0.079	0.081	0.101	0.107	0.020	0.108	3703	14	100	1200
0.090	±0.003	0.089	0.091	0.113	0.119	0.022	0.120	2900	15	94	1300
0.100	±0.003	0.099	0.101	0.124	0.131	0.023	0.132	2333	16	90	1400
0.112	±0.003	0.111	0.114	0.139	0.146	0.026	0.147	1848	17	88	3900
0.125	±0.003	0.124	0.127	0.154	0.161	0.028	0.163	1475	17	84	4100
0.140	±0.003	0.139	0.142	0.171	0.178	0.030	0.181	1170	18	79	4200
0.160	±0.003	0.159	0.162	0.194	0.201	0.033	0.205	890.6	19	78	4400
0.180	±0.003	0.179	0.182	0.218	0.225	0.036	0.229	700.7	20	75	4700
0.200	±0.003	0.199	0.202	0.241	0.249	0.039	0.252	565.7	21	72	5100
0.224	±0.003	0.223	0.226	0.269	0.277	0.043	0.280	449.5	21	68	5200
0.250	±0.004	0.249	0.253	0.301	0.309	0.048	0.312	362.8	22	65	5500
0.280	±0.004	0.279	0.283	0.333	0.341	0.050	0.345	288.2	22	61	5800
0.315	±0.004	0.314	0.317	0.371	0.38	0.053	0.384	227.0	23	62	6100
0.355	±0.004	0.354	0.357	0.415	0.423	0.057	0.428	178.2	23	59	6400
0.400	±0.005	0.398	0.403	0.464	0.474	0.060	0.478	140.7	24	55	6600
0.450	±0.005	0.448	0.453	0.518	0.528	0.064	0.533	110.9	25	53	6800
0.500	±0.005	0.498	0.503	0.571	0.581	0.067	0.587	89.59	25	51	7000
0.560	±0.006	0.557	0.563	0.635	0.645	0.071	0.653	71.53	26	48	7100
0.630	±0.006	0.627	0.633	0.709	0.721	0.075	0.728	56.38	27	53	7100
0.710	±0.007	0.707	0.714	0.795	0.807	0.080	0.814	44.42	28	50	7200
0.800	±0.008	0.797	0.804	0.89	0.902	0.085	0.911	35.00	28	46	7400
0.900	±0.009	0.897	0.904	0.995	1.007	0.090	1.018	27.65	29	51	7600
1.000	±0.010	0.997	1.004	1.1	1.114	0.095	1.124	22.40	30	47	7600
1.120	±0.011	1.116	1.124	1.223	1.237	0.098	1.248	17.85	30	34	7600
1.250	±0.013	1.246	1.254	1.355	1.369	0.100	1.381	14.35	31	39	7600
1.400	±0.014	1.396	1.406	1.509	1.523	0.103	1.535	11.43	32	36	7600
1.600	±0.016	1.596	1.606	1.714	1.73	0.107	1.740	8.75	32	32	7600
1.800	±0.018	1.796	1.806	1.917	1.933	0.110	1.944	6.91	32		7600
2.000	±0.020	1.994	2.006	2.12	2.136	0.113	2.148	5.60	33		7600
2.240	±0.022	2.234	2.246	2.363	2.381	0.116	2.392	4.46	33		7600
2.500	±0.025	2.494	2.506	2.626	2.644	0.119	2.656	3.58	33		7600
2.800	±0.028	2.794	2.808	2.932	2.95	0.123	2.961	2.86	34		3800
3.150	±0.032	3.144	3.158	3.286	3.306	0.127	3.316	2.26	34		3800
